Crison 44 - Chlorine Channel (Amperometric)

42
Operation
4.10 Chlorine channel (amperometric)
4.10.1 Connections

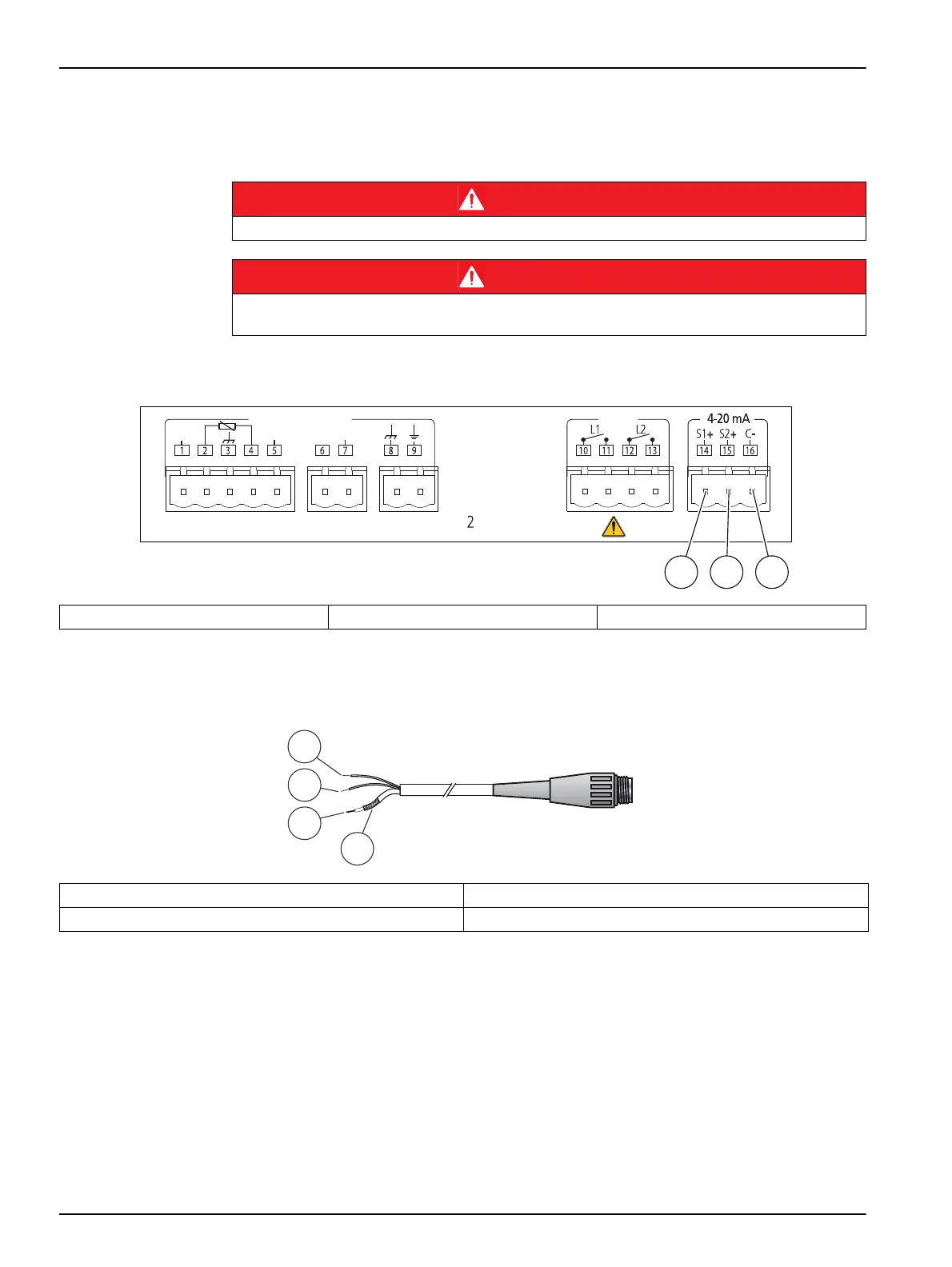

Figure 22 Chlorine channel (amperometric)
For Chlorine amperometric electrode connection (code 60 70) refer to Figure 23.
Figure 23 Chlorine membrane electrode connection (cable code 11 30)
DANGER
Always disconnect power to the instrument when making any electrical connections.
DANGER
Relays: Limit the current up to 3A by using one fuse. Do not connect cables with voltage higher
than 24 V.
1 Chlorine 2 Temperature 3 Common
RelaysMembrane Sensor
Cl
membrane
Signal–5V+5V
1 2 3
1 Brown cable: To terminal 1 3 Signal: To terminal 7
2 White cable: To terminal 5 4 Shield: To terminal 8
2
1
3
4
