Crow RUNNER 8/64 - Inputs

Page 11
2k2
Tamper
4k7 8k2
Tamper
Alarm or Key-switch 1 Contact Alarm or Key-switch 2 Contact
NC or NO NC or NO
INPUTS
The RUNNER 48/6 control board has 9 separate programmable monitored analogue inputs,
8 x Programmable, multi-state z
one inputs
1 x Programmable tamper input
Each input must be terminated with the appropriate value or combination of end-of-line resistors,
even if the input is unused.

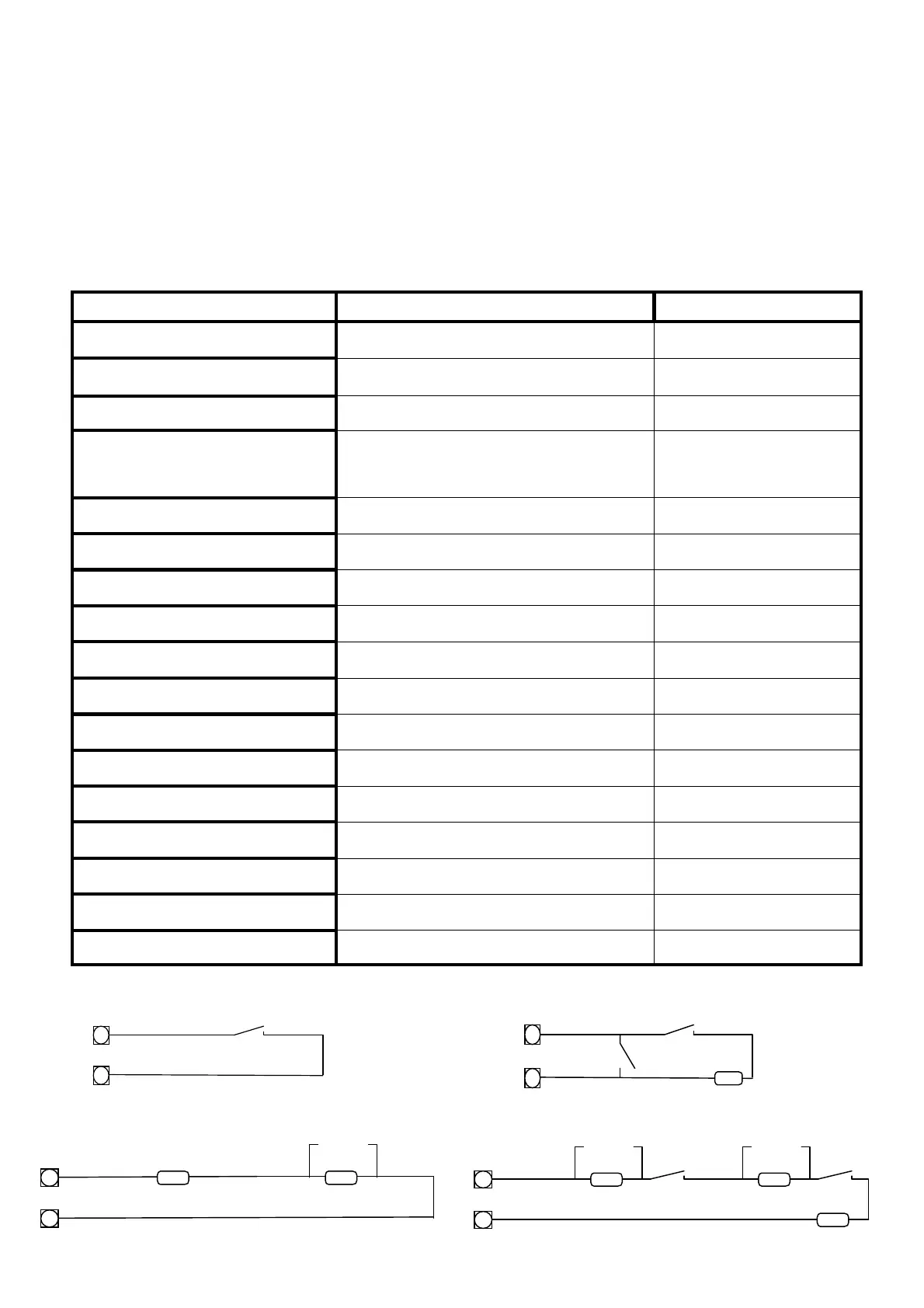

ZONE INPUTS - Each of the 8 zone inputs can be assigned one of the following End of Line (EOL) configuration
options,
Zone EOL Type (P125E) Input Resistor Comments
0 (Short circuit) Loop EOL
1 1k (Brown, Black, Red) Single EOL
2 1k5 (Brown, Green, Red) Single EOL
3
(P126E “Vibration Mode” only
supports this EOL value)
2k2 (Red, Red, Red) Single EOL
4
3k3 (Orange, Orange, Red) Single EOL
5
3k9 (Orange, White, Red) Single EOL
6 4k7 (Yellow, Violet, Red) Single EOL
7 5k6 (Green, Blue, Red) Single EOL
8 6k8 (Blue, Grey, Red) Single EOL
9 10k (Brown, Black, Orange) Single EOL
10 12k (Brown, Red, Orange) Single EOL
11 22k (Red, Red, Orange) Single EOL
12 (series) 2k2 Tamper, 4k7 Zone Zone & Tamper
13 (series)
3k3 Tamper, 6k8 Zone Zone & Tamper
14 (series)
2k2 Tamper, 4k7 Low Zone, 8k2 High Zone Zone Doubling, with Tamper
15 (series) 4k7 Low Zone, 8k2 High Zone Zone Doubling, No Tamper
16 (parallel) 4k7 Low Zone, 8k2 High Zone Zone Doubling, No Tamper
Type 1-11 (Single EOL no Tamper)
Type 14 (Zone Doubling with Tamper)
n/c
n/o
EOL Resistor
Type 0 (Short/Loop Circuit)
n/c
Type 12-13 (Single Zone with Tamper)
2k2 or 3k3
Alarm Contact
n/c or n/o
4k7 or 6k8
Tamper Resistor
