Crow RUNNER 8/64 - Examples of Zone Wiring

Page 12
Zone
0V
N/C
Short circuit loop, No EOL
N/C
Zone
0V
2k2 EOL, No Tamper
2k2
N/O
2k2
0V
Zone
Type 12 Configuration. Alarm & Tamper monitoring (contacts can be N/C or N/O)
4k7
N/C or N/O
Zone Resistor Tamper Resistor
0V
Wiring a PIR Detector (N/C) for Alarm & Tamper Monitoring
Zone
2k2
4k7
Alarm Contact (N/C)
PIR Internal Connections
Alarm
Tamp
Tamp
Alarm
0V
+12V
Tamper Contact (N/C)
0V
12V

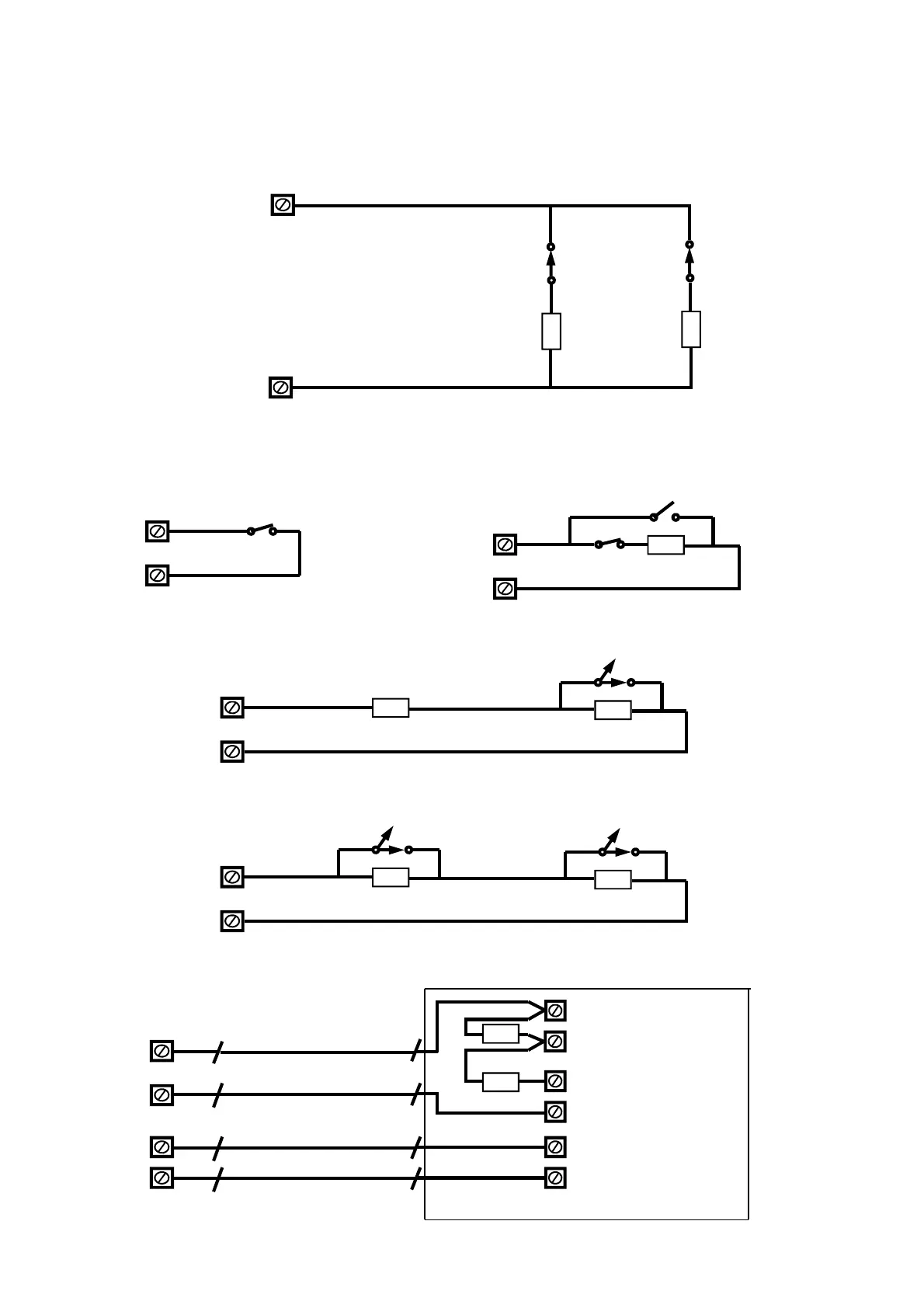

EXAMPLES OF ZONE WIRING OPTIONS
Type 15 Configuration. Zone Doubling, NO Tamper (contacts can be N/C or N/O)
4k7
0V
Zone
N/C or N/O
Lo-Zone Resistor Hi-Zone Resistor
N/C or N/O
8k2
Type 16 Configuration. Zone doubling no Tamper monitoring
0V
Zone
8k2
N/C
High Zone
4k7
Low Zone
N/C
NOTE: With Type 16 configuration NO contacts cannot be used
