Chapter 2: Specifications 5
99-04-23

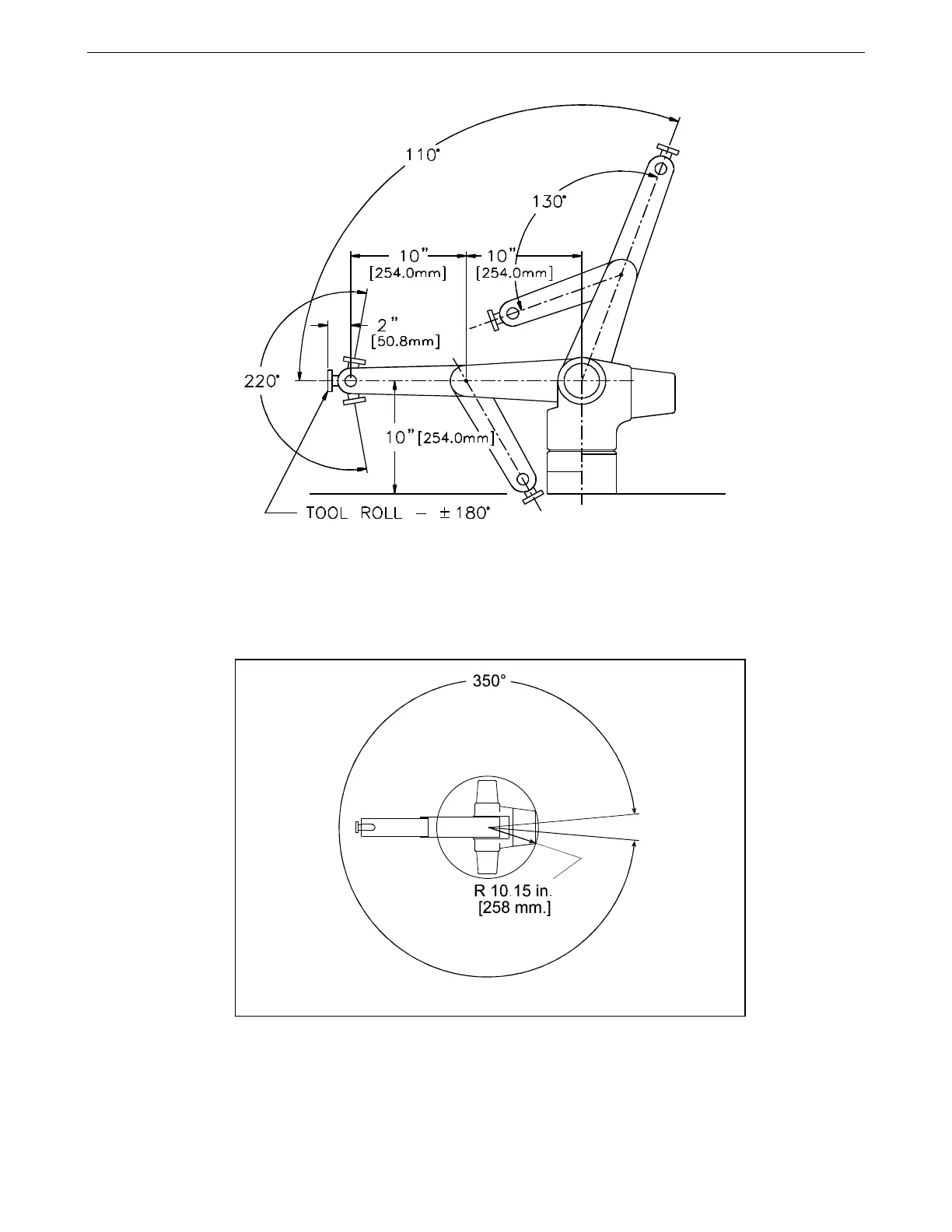

The range of motion of the joints and the dimensions of the sections of the robot
arm.
The 350° range of motion of the waist joint of the robot arm.
