Electrical wiring
VA 500 Bi-directional English 1.24 Seite 25 von 56

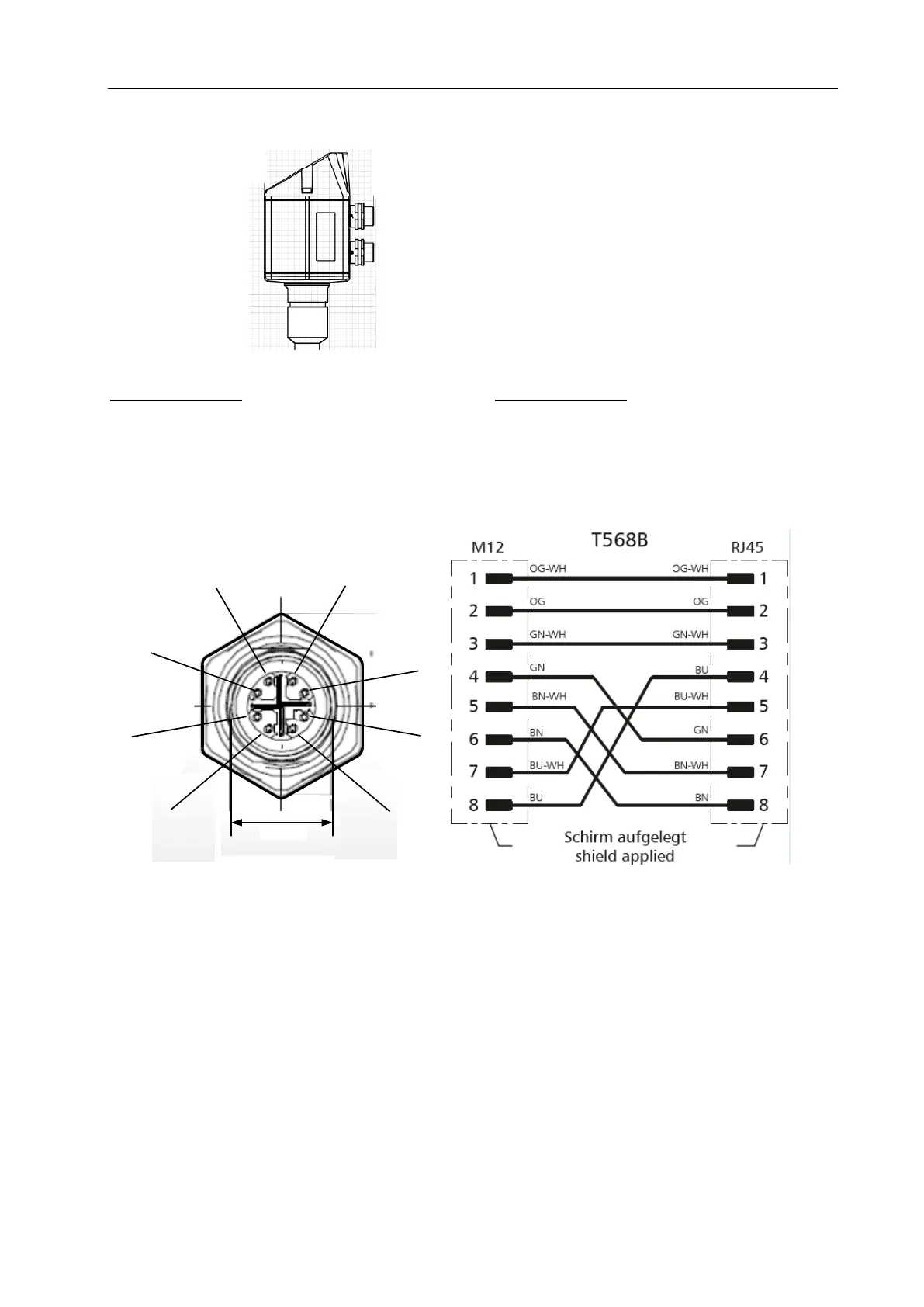

10.2.4 Ethernet (optional PoE)
Connector plug B Connection cable
M12 x-coded 8 pole M12 x-coded to RJ45
Data LINES: 1,2 und 3,4
PoE LINES: 5,6 und 7,8
2
8
1
3
5 4
6
7
M12 x 1
Connection cable: Cat 6.
*PoE: Power over Ethernet
- Connector plug B (M12 X-coded 8 pole)
- Connector plug A
