Curtiss-Wright DTS1 User Manual

User Guide DDOC0099-000-AH
DTS1 CSfC A - 2 Specifications
© 2020 Curtiss-Wright Defense Solutions Revision 3.0
A.1.2 Panel Mount
NOTE
Dimensions are in inches and (millimeters).

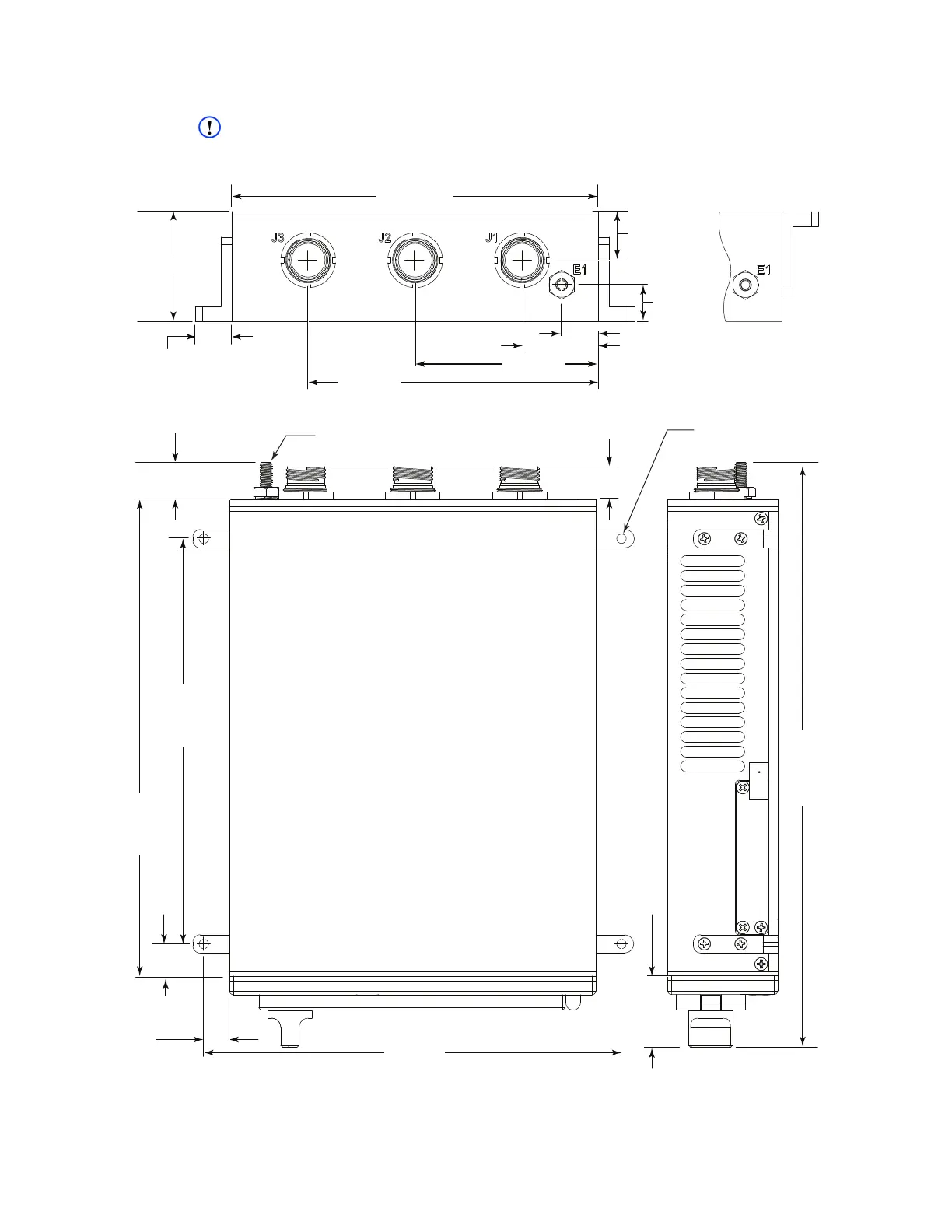

Figure A.2 DTS1 (Panel Mount)
02-DTS1-0024
5.53± 0.005
(140.5 ± 0.127)
7.986 ± 0.025
(202.857 ± 0.635)
6.50 ± 0.01
(165.2 ± 0.254)
0.35 ± 0.005
(8.9 ± 0.127)
0.437 ± 0.005
(11.1 ± 0.127)
Alternate L-Bracket
Installation
0.447 ± 0.005
(11.354 ± 0.127)
0.507 ± 0.005
(12.878 ± 0.127)
0.975 ± 0.01 (24.778 ± 0.254)
0.507 ± 0.005
(12.878 ± 0.127)
0.50± 0.005 (12.7 ± 0.127)
0.50± 0.005
(12.7 ± 0.127)
0.665 ± 0.005
(16.891 ± 0.127)
1.042 ± 0.005
(26.467 ± 0.127)
5.00 ± 0.005
(127.0 ± 0.127)
5.70 ± 0.01
(144.8 ± 0.254)
1.50 ± 0.005
(38.1 ± 0.127)
Use 4-40 Flat
Head Screw
8-32 Threads
2.50 ± 0.005
(63.5 ± 0.127)
3.96 ± 0.005
(100.584 ± 0.127)
