Figure 4.2 RMC Module Anti-Tamper Label Location
4.3 Mounting
Mounting environment considerations should include operating temperature limits, humidity, and
vibration limits. Other considerations should include clearance for mounting hardware, cables, and
safe installation or removal of the DTS1 chassis from its mounting structure. Precautions should
be taken when cables are routed around structures that could cause excessive abrasion, such as
around the corner of vibrating equipment.
Installation of the DTS1 can put an increased demand on cooling systems by raising ambient air
temperatures. Evaluate changes in airflow obstructions and temperatures around equipment and
possible detrimental surface temperatures due to conducted heat. See paragraph A.5
Environmental Specificationsfor thermal limit specifications.
Mechanical mounting of the DTS1 requires compliance to MIL-STD MS25212. This will require the
acquisition of the appropriate mounting components and precise installation per the selected
platforms mounting specifications. Two mounting methods (Figure 4.3) provide secure attachment
to a platform: standard platform mounting brackets or a Dzus mount. If installation and removal of
the RMC module is desired while the DTS1 remains mounted, be sure to allow clearance (Figure
4.4) for the door to open and the RMC to be positioned in front of the DTS1.

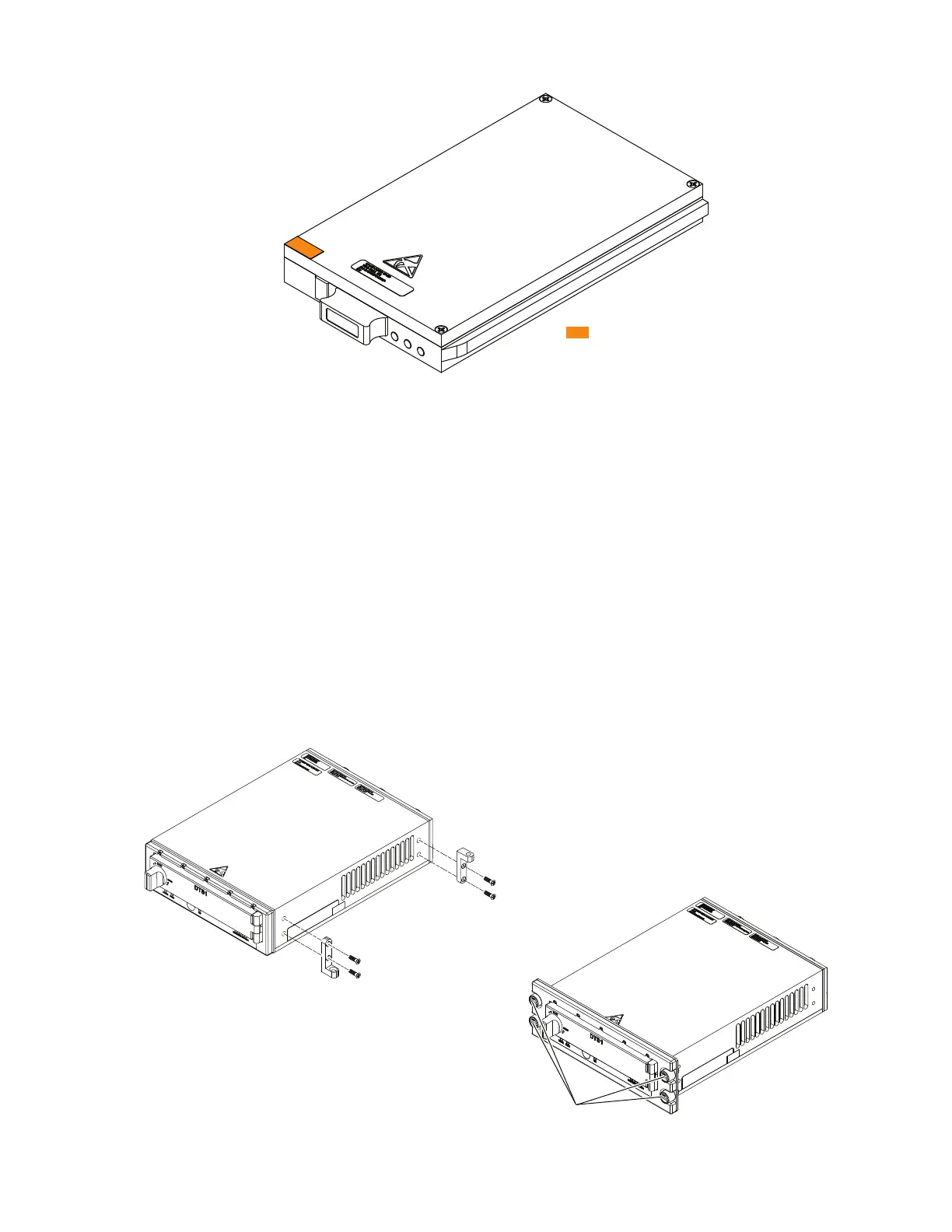

Figure 4.3 DTS1 Chassis Mounting
Anti-Tamper Label Locations
DDOC0099-0044
DDOC0099-0007
DTS1 Standard Mount
DTS1 DZUS Mount
Dzus Fasteners
L-Bracket
(Platform Orientation)
L-Bracket
(Hanging Orientation)
