Overview
2.1 Description
The Curtiss-Wright DTS1 (Figure 2.1) is a rugged Network Attached Storage (NAS) device with
solid state storage capacities from 128 GB up to 4 TB. The DTS1 provides data storage to
assorted network clients via two IEEE 802.3 / 802.3u / 802.3ab Ethernet ports. The DTS1 is a
ruggedized unit designed to operate on vehicles, in field stations, or in laboratories.
The DTS1 is configured/controlled through a Command Line Interface (CLI) via RS-232 or
Ethernet (Telnet or SSH). The CLI utilizes Curtiss-Wright’s proprietary command structure, which
includes built in Help. The DTS1 uses the Commercial Solutions for Classified (CSfC) specification
and associated dual layer data security system to provide a NSA-acceptable data encryption
method. Data is encrypted by hardware and software to fulfill the CSfC dual layer requirements.
Figure 2.1 DTS1
2.1.1 Chassis
The chassis (Figure 2.2) is made up of the following major assemblies:
• RMC Module Mount
• Backplane PCB
• Power Supply PCB
• Processor Carrier PCB
• Mini Comm PCB
• USB Flash Module
It also contains a battery used to power the EPROM that stores the encryption key.
DDOC0099-0001

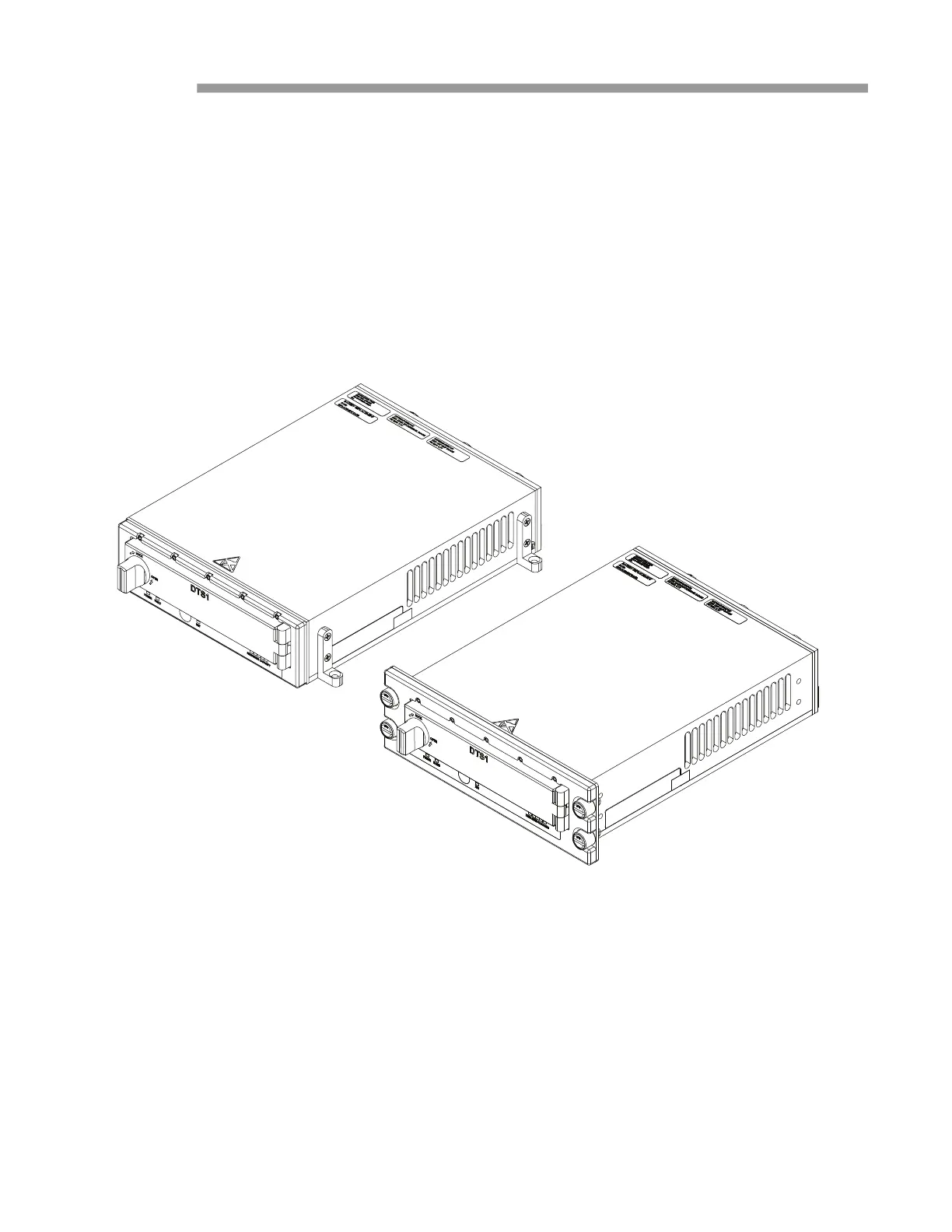

DTS1 Standard Mount
DTS1 DZUS Mount
To Next Page
