User Guide DDOC0099-000-AH
DTS1 CSfC 7 - 2 Operation
© 2020 Curtiss-Wright Defense Solutions Revision 4.0
7.2 Basic Operation
NOTE
Serial port access is recommended for initial configuration of the DTS1.
This topic describes how to use the DTS1 Command Line Interface (CLI) to configure the DTS1.
Refer to Command Line Interface section for more information on the commands used in this
topic. Changes to the DTS1 configuration must be performed through the admin account.
7.2.1 Communications
NOTE
The DTS1 will auto log-off after 5 minutes of communications inactivity.
A copy of the PuTTY terminal emulator can be obtained from https://www.putty.org/
.
A RS-232 serial data port is provided via utility connector (J2). A terminal emulation program
(PuTTY) is used to communicate with the Command Line Interface (CLI) using the RS-232 port.
Serial port accesses is recommended for initial configuration of the DTS1. The terminal emulation
program should be set to 9600 bps, 8 bits, no parity, one stop bit, and no flow control.
The CLI is also accessible via Ethernet using Secure Shell (SSH). The default IP addresses are
shown in Table 7.1.
Simple Network Management Protocol (SNMP) is also available to communicate with the DTS1.
See Simple Network Management Protocol section for details.
7.2.1.1 Terminal Emulation
This section explains setting up communications using serial communication (RS-232) and a
PuTTY terminal emulator.
1. If not previously accomplished, download a copy of PuTTY terminal emulator and install on
computer.
2. Open PuTTY terminal emulator (Figure 7.2).

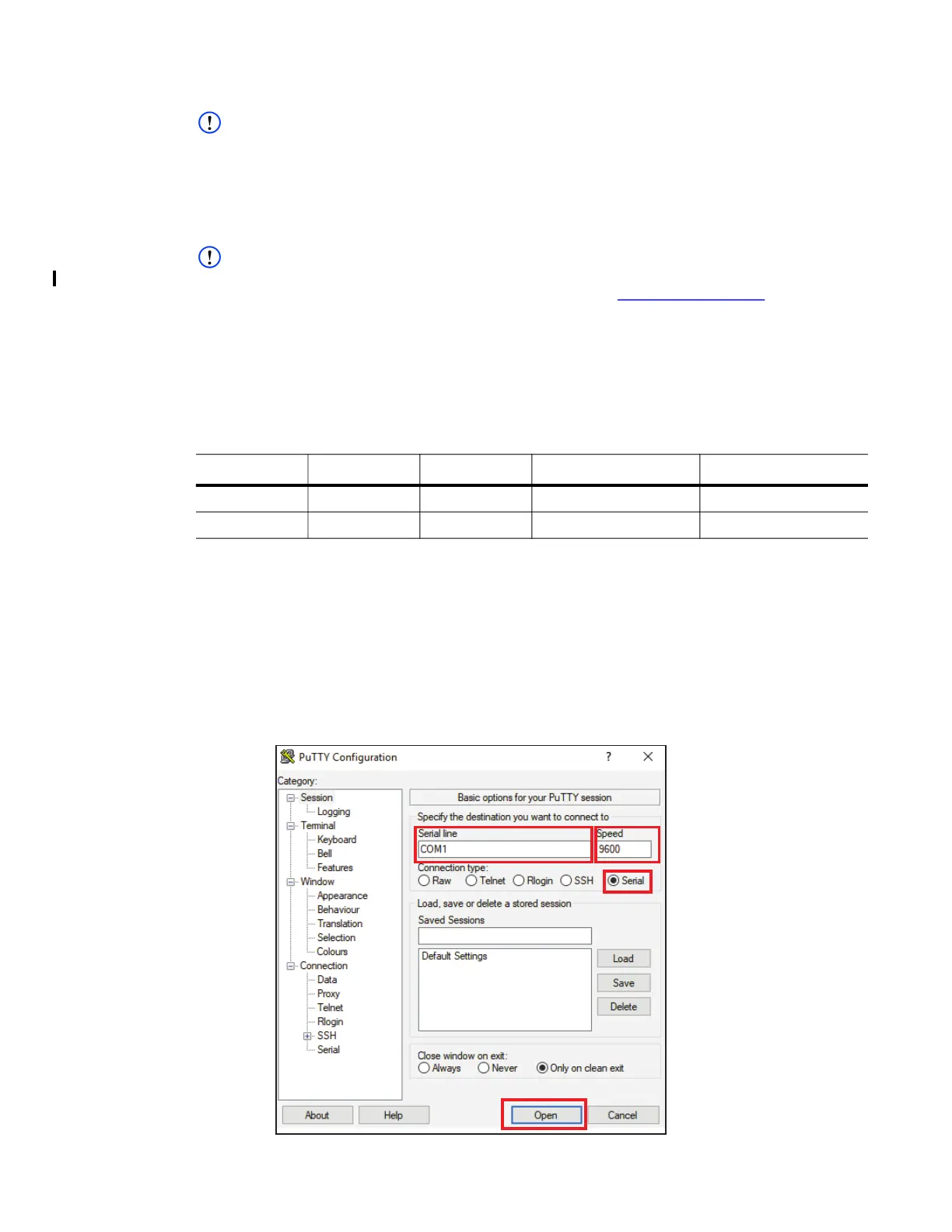

Figure 7.2 PuTTY Terminal Emulator (Serial Data)
Table 7.1 Ethernet Interfaces
Connector Port Interface IP Address Subnet Mask
J2 Port 0 eth0 192.168.1.1 255.255.255.0
J3 Port 1 eth1 192.168.2.1 255.255.255.0
