User Guide
DDOC0099-000-AH
DTS1 CSfC
4 - 5
Installation
© 2020 Curtiss-Wrigh
t Defense Solutions
Revision 2.0
4.4.4
Ground Cable
A
ground cable
i
s required, but not provided. Th
e ground cable (
DTS1 Ground Connection
)
terminal is installed on the DTS1 ground
stud E1. The provide
d nut should be torqued to 18 in. lb.
to ensure proper connection.

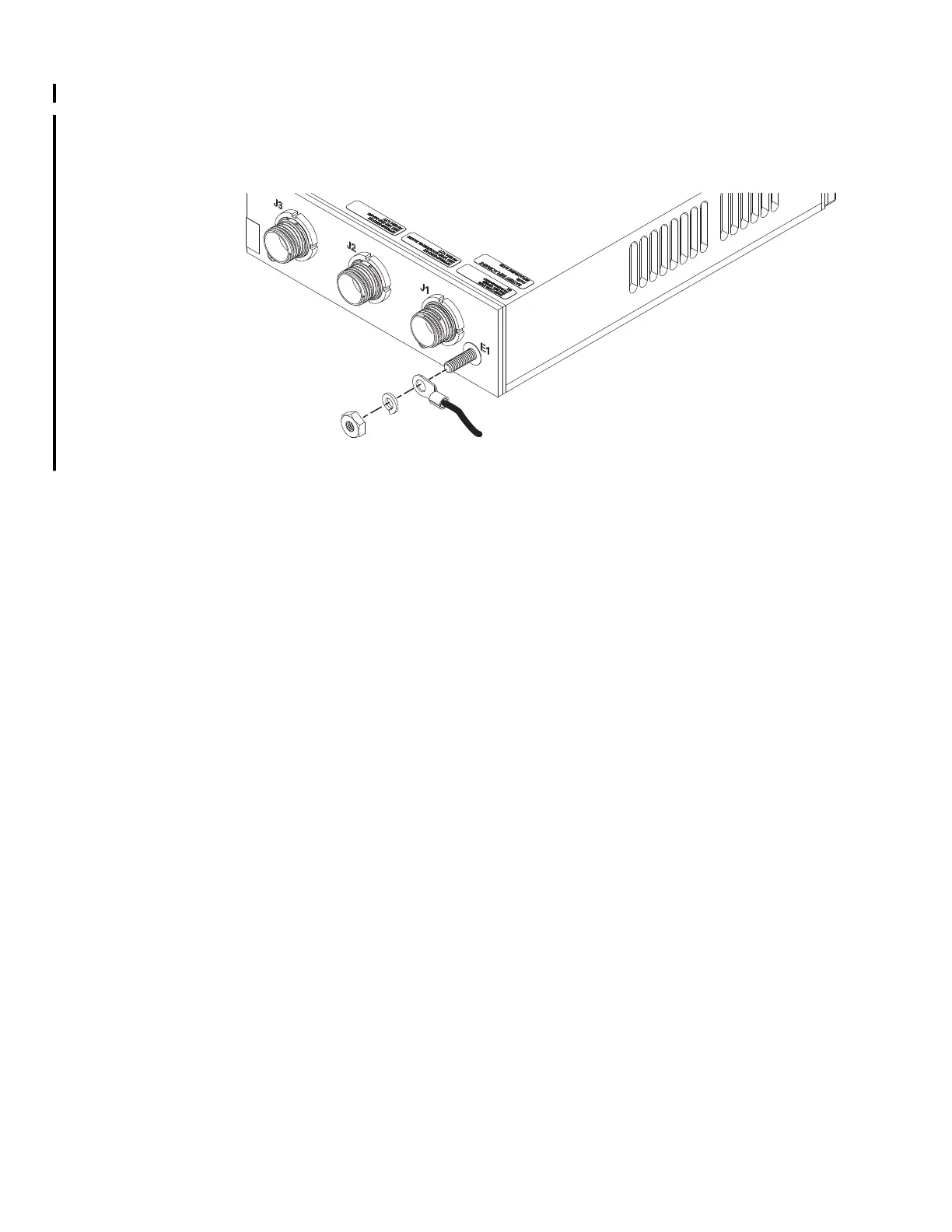

Figure 4.9
DTS1 Ground Connection
DDOC0099-0047
Ground Cable
T
orque Nut to 18 in. lb.
29
31
