Curtiss-Wright VS-DTS1SL-F - Envelope; Mounting Dimensions; Specifications

140 pages

To Next Page

To Previous Page

User Guide DDOC0099-000-AH

DTS1 CSfC A - 1 Specifications

Specifications

A.1 Envelope / Mounting Dimensions

A.1.1 RMC Module

NOTE

Dimensions are in inches and (millimeters).

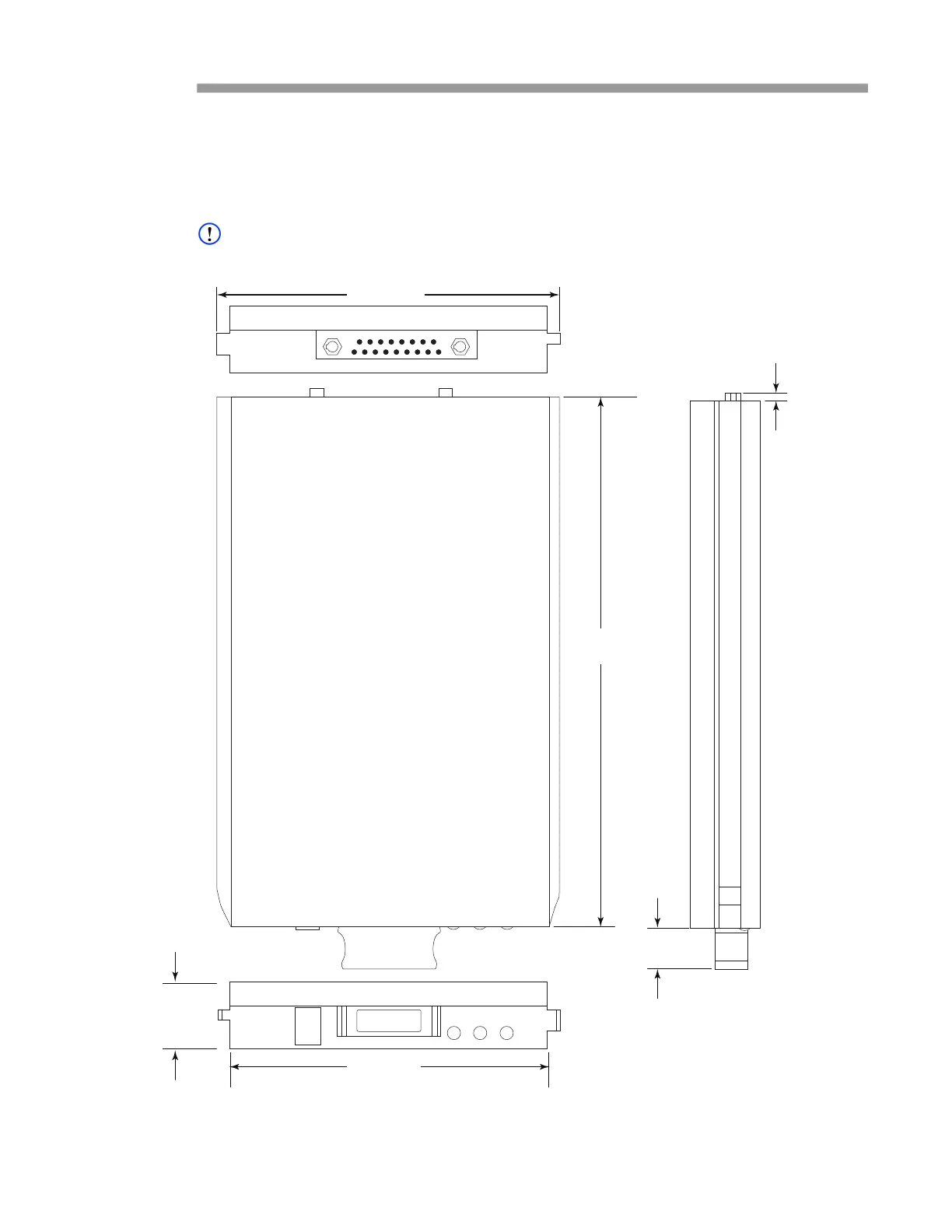

Figure A.1 RMC Module

DDOC0099-0025

0.08

(2.1)

0.63

(15.9)

5.0

(127)

0.39

(9.9)

3.2 (81.79)

3.00 (76.2)
