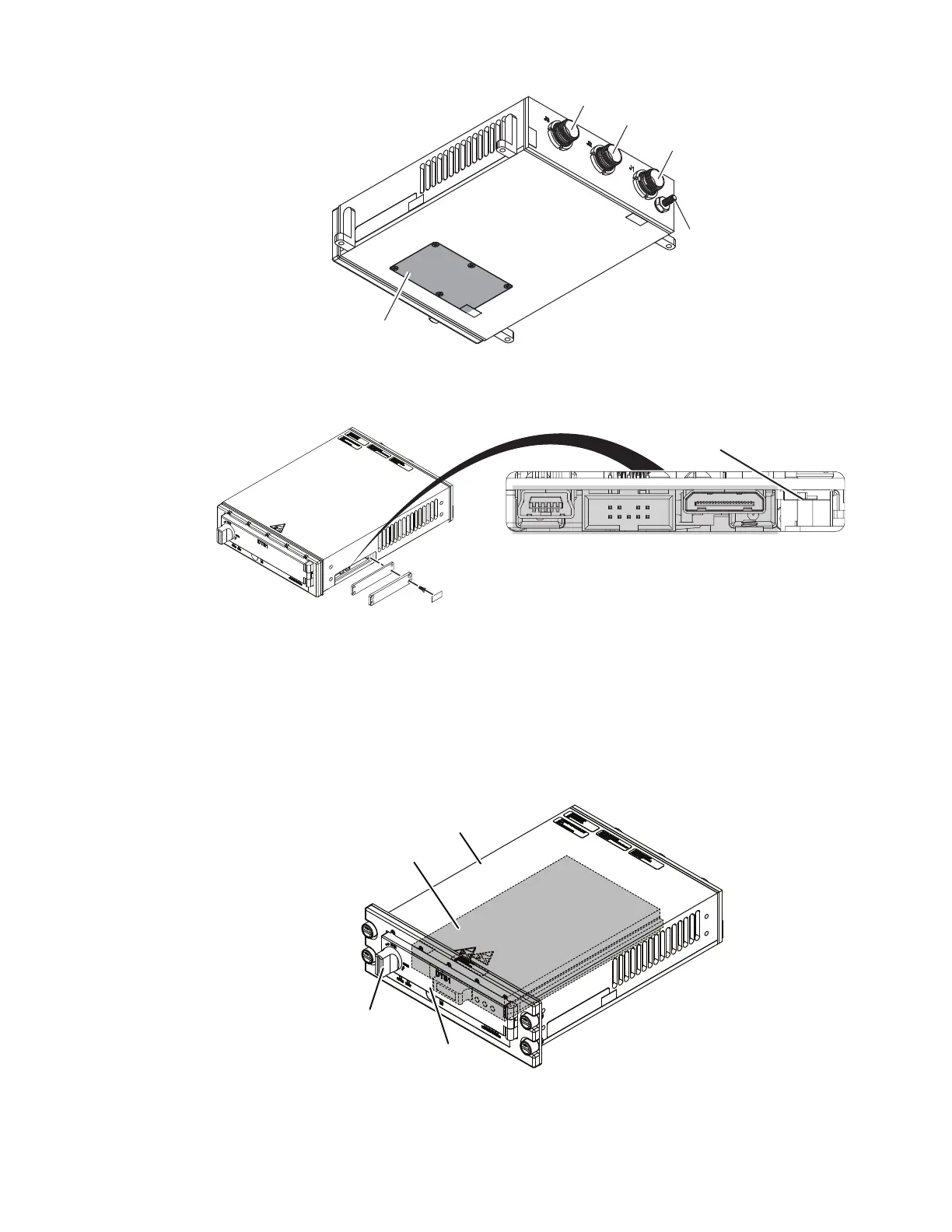

Figure 2.3 DTS1 Rear Panel / Battery Access Cover and Rear Connectors
Figure 2.4 DTS1 Processor Carrier PCB Programming Connector / Write-Enable Switch
2.1.2 RMC Module
One RMC module (Figure 2.5) is housed in the DTS1. The RMC module is accessed via a sealed
door with a quarter-turn latch located on the front panel of the unit. The RMC module within the
DTS1 is also a rugged compact unit that can be personally transported with minimal precautions to
a secure location or deployment.
Figure 2.5 DTS1 With RMC Module
DDOC0099-000
5
Battery Access
Panel
Ethernet
Power
Ground Stud
Ethernet / RS-232
DDOC0099-0019
Processor Carrier PCB
Programming Connctors
Write-Enable Switch
RMC Module
DTS1
Quarter-Turn
Latch
Sealed Door
DDOC0099-0002
