A.1.3 DZUS Fastener Mount
NOTE
Dimensions are in inches and (millimeters).

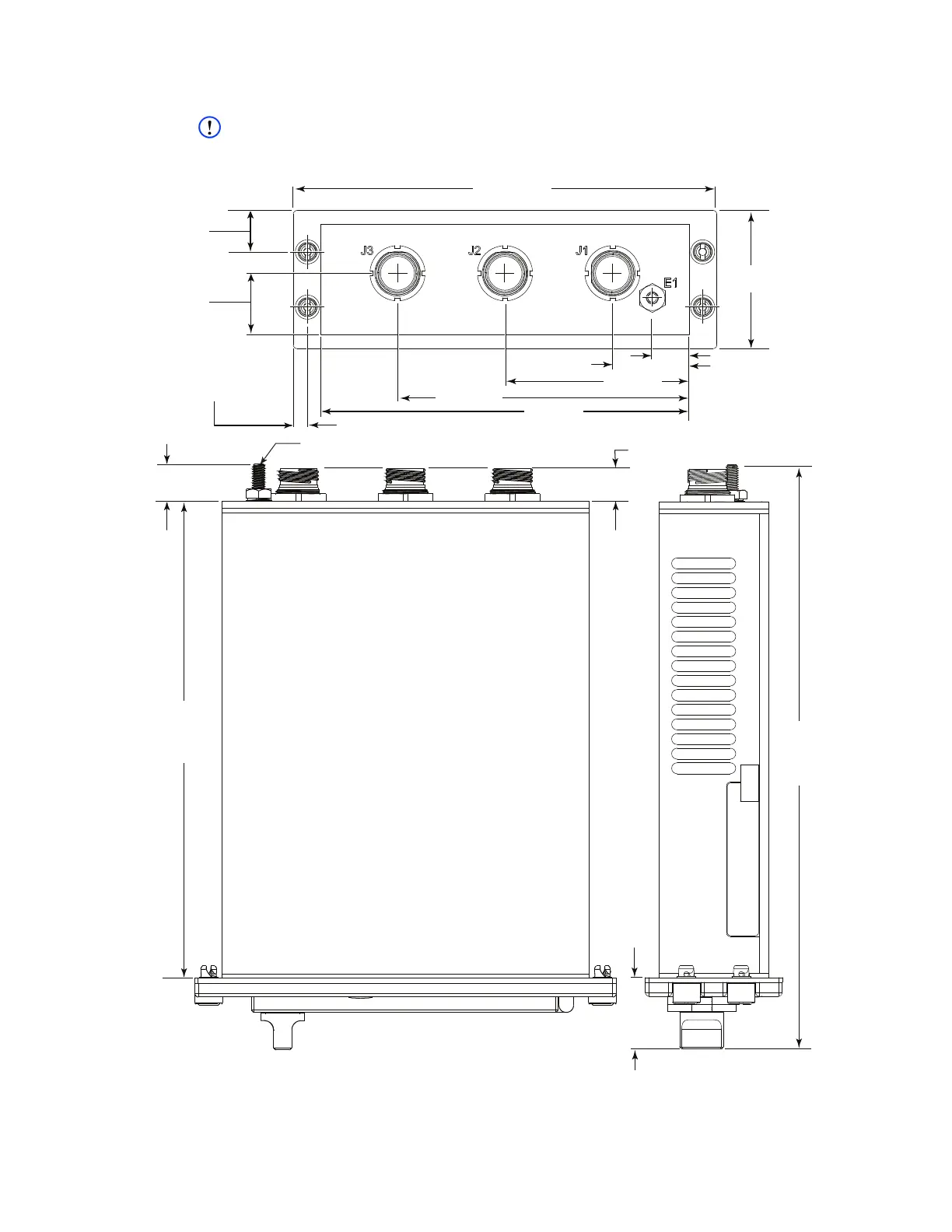

Figure A.3 DTS1 (Dzus Mount)
DDOC0099-0024
0.19 ± 0.005
(4.8 ± 0.127)
0.56 ± 0.005
(14.2 ± 0.127)
0.835 ± 0.005
(21.209 ± 0.127)
5.75 ± 0.005
(146.0 ± 0.127)
1.875 ± 0.005
(47.63 ± 0.127)
8-32 Threads
6.50 ± 0.01
(165.2 ± 0.254)
0.507 ± 0.005
(12.878 ± 0.127)
0.447 ± 0.005
(11.354 ± 0.127)
1.042 ± 0.005
(26.467 ± 0.127)
2.50 ± 0.005
(63.5 ± 0.127)
5.00 ± 0.005
(127.0 ± 0.127)
0.975 ± 0.01 (24.778 ± 0.254)
7.986 ± 0.025
(202.857 ± 0.635)
3.96 ± 0.005
(100.584 ± 0.127)
0.50± 0.005 (12.7 ± 0.127)

Curtiss-Wright VS-DTS1SL-F Specifications

General

Brand	Curtiss-Wright
Model	VS-DTS1SL-F
Category	Storage
Language	English
