User Guide DDOC0099-000-AH
DTS1 CSfC B - 4 Connectors / Cables
© 2020 Curtiss-Wright Defense Solutions Revision 2.0

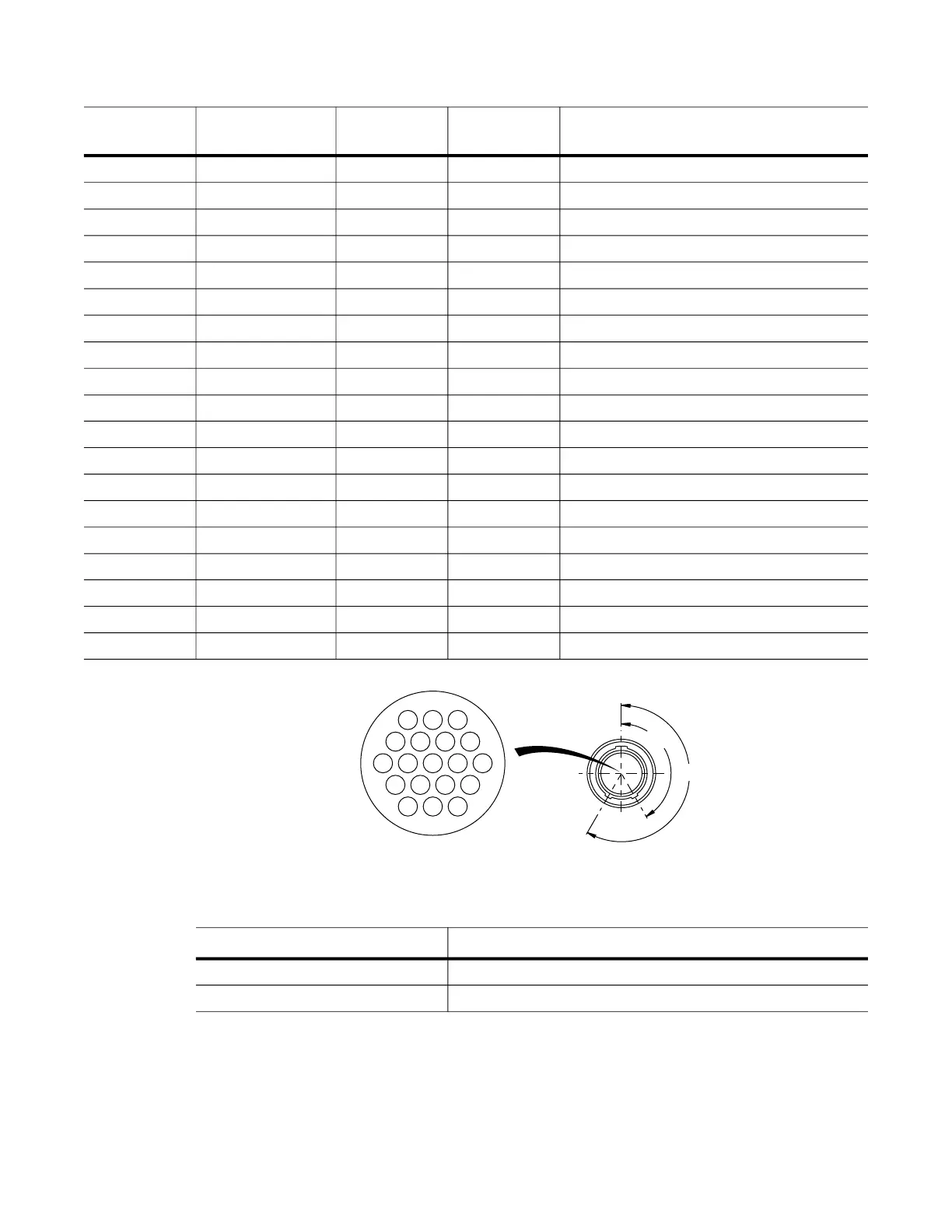

Figure B.5 Ethernet Connector J3
Table B.5 Ethernet Connector J3 Signals
Connector
Pin Signal Name Signal Type Direction Description / Functions
1
2
3
GND Analog
NC
4
GND Analog NC
5
6
GND Analog
NC
7
BI_DA2- GbE
In / Out
Gigabit Ethernet Bi-directional pair A2+/-
8
BI_DD2+ GbE
In / Out
Gigabit Ethernet Bi-directional pair D2+/-
9
GND Analog NC
10
11
GND Analog NC
12
BI_DA2+ GbE
In / Out
Gigabit Ethernet Bi-directional pair A2+/-
13
BI_DD2- GbE
In / Out
Gigabit Ethernet Bi-directional pair D2+/-
14
GND Analog NC
15
GND Analog NC
16
BI_DB2- GbE
In / Out
Gigabit Ethernet Bi-directional pair B2+/-
17
BI_DC2+ GbE
In / Out
Gigabit Ethernet Bi-directional pair C2+/-
18
BI_DC2- GbE
In / Out
Gigabit Ethernet Bi-directional pair C2+/-
19
BI_DB2+ GbE
In / Out
Gigabit Ethernet Bi-directional pair B2+/-
Table B.6 Ethernet Lab Cable (VS-DTS1ETHCAB-J3)
Connector Description Mates With / Signal Name
P1 DTS1 J3
P2
– TIA/EIA-568B Modular Plug Gigabit Ethernet TIA/EIA-568B Modular Jack
DDOC0099-0041
213
456
891011
19 18
131415
17
12
16
7
75°
210°
To Next Page
