DTS1 CSfC 4 - 5 Installation

4.4.4 Ground Cable

A ground cable is required, but not provided. The ground cable (DTS1 Ground Connection)

terminal is installed on the DTS1 ground stud E1. The provided nut should be torqued to 18 in. lb.

to ensure proper connection.

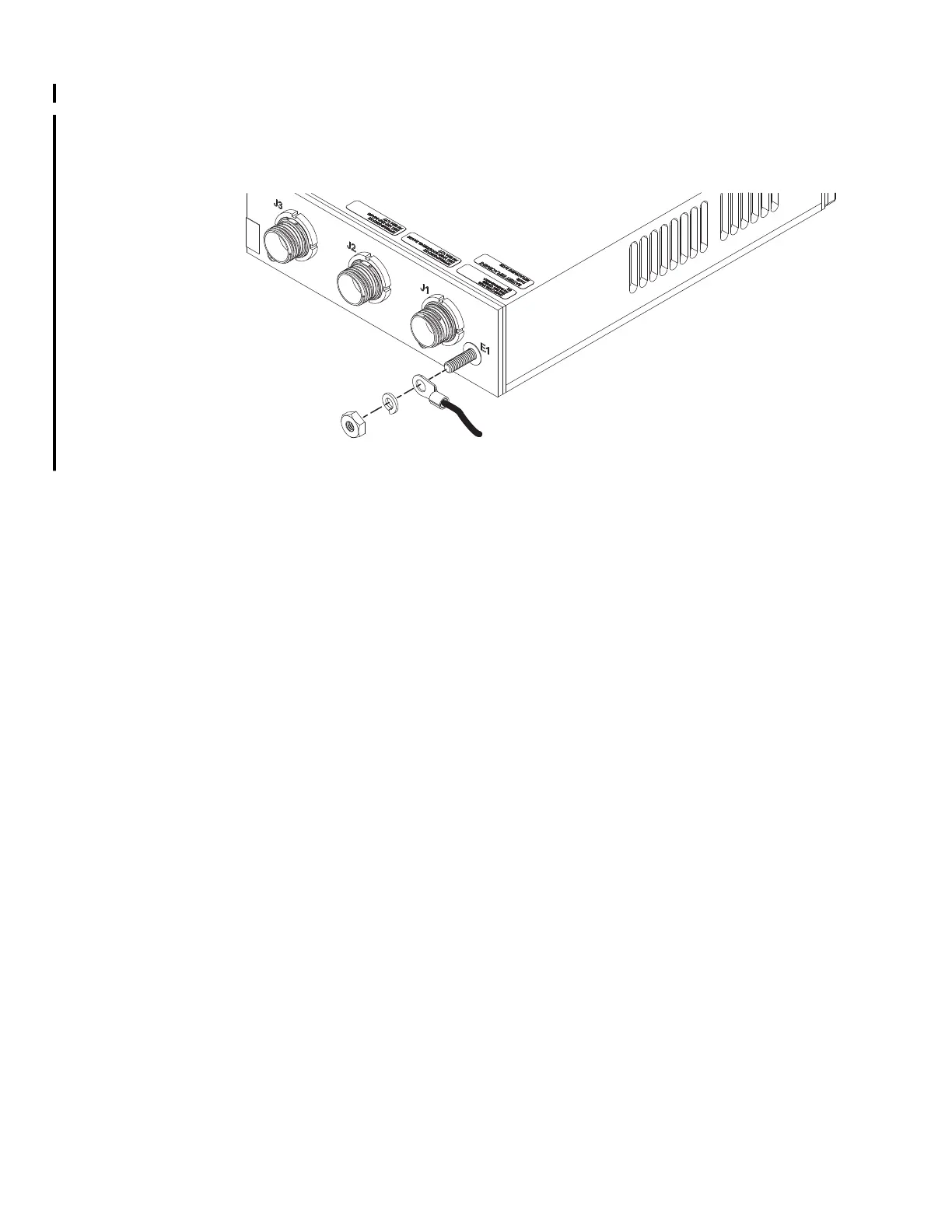

Figure 4.9 DTS1 Ground Connection

DDOC0099-0047

Ground Cable

Torque Nut to 18 in. lb.
