Cushman 646442 - Opening Seat Cushion (B); Raising Cargo Bed (C)

7
-8
HAULER 4X4 DIESEL

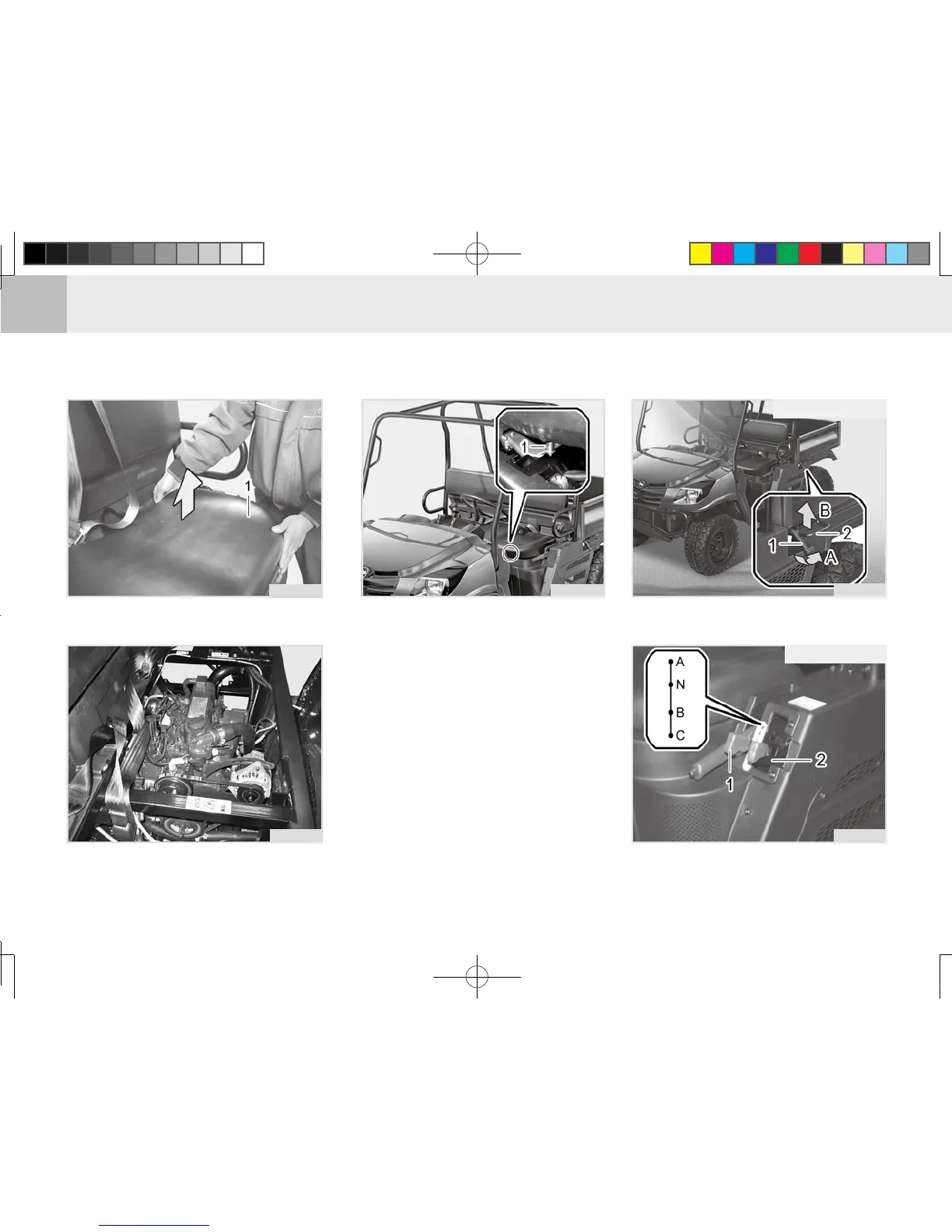

RAISING CARGO BED (C)OPENING SEAT CUSHION (B)
UUVo703A
To open the seat cushion, lift its rear
side slightly and then raise both sides
with both hands as shown in the gure.
(1) Seat
UUVo704A
To close the seat cushion, align
the pins under the cushion with
the holes and then push down the
cushion gently.
Most of the engine services, includ-
ing engine oil change and head
cover repair, can be performed by
opening the seat cushion.
(1) Pin
KUVo704A
UUVo446C
(1) Ratchet lever (2) Lever Lock Bracket
(A) Up (B) Down
UUVo463A
(1) Hydraulic Lever (2) Lever Lock Bracket
(A) Up (B) Down
(C) Floating
IF EQUIPPED
MANUAL TYPE
