FEATURES AND CONTROLS
4

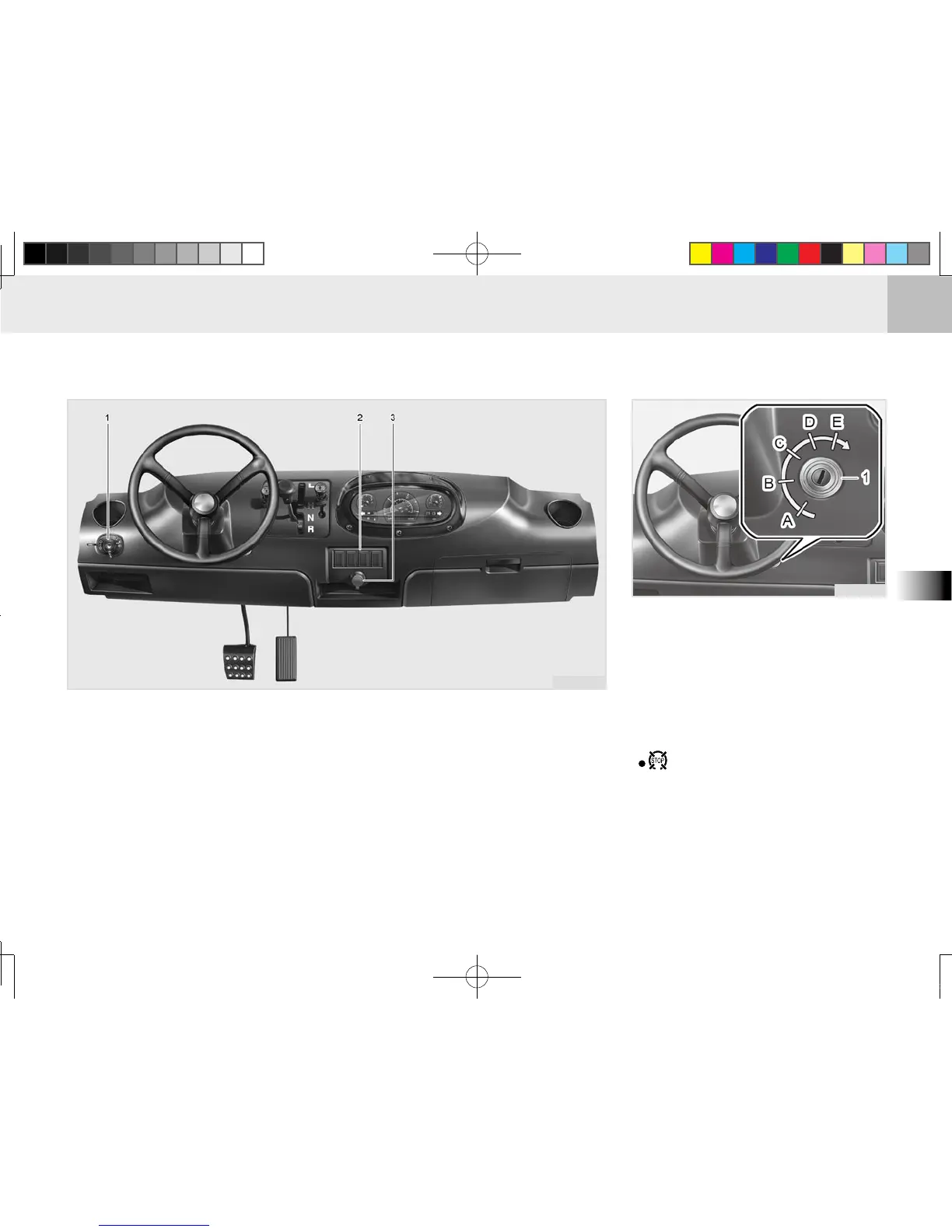

SWITCHES
(1) Combination Switch
(2) Spare Switch Panel
(3) 12V Power Outlet
UUVO410A

(1) Key switch (A) Stop (B) ACC
(C) ON (D) Heat (E) Start
 
When the key switch is in position
“A”, the engine and all electrical
devicesinthevehiclestopexcept
horn, hazard lamps and turn sig-
nal.
There are five positions for the ig-
nition key switch as follow. The key
can be removed from the key switch
only if it is in the "OFF" position.
UUVO411A
