CHECKING BRAKE PAD (Z)
1. Park the vehicle on level ground
and apply the parking brake rmly.
2. Unscrew the nuts of the wheel to
be checked only 1 turn.
3. Lift the vehicle with a hydraulic
jack and then support the vehicle
with the safety stand. Then, lower
the hydraulic jack so that the vehi-
cle chassis sits on the stand.
4. Unscrew the wheel nuts complete-
ly to remove the wheel.

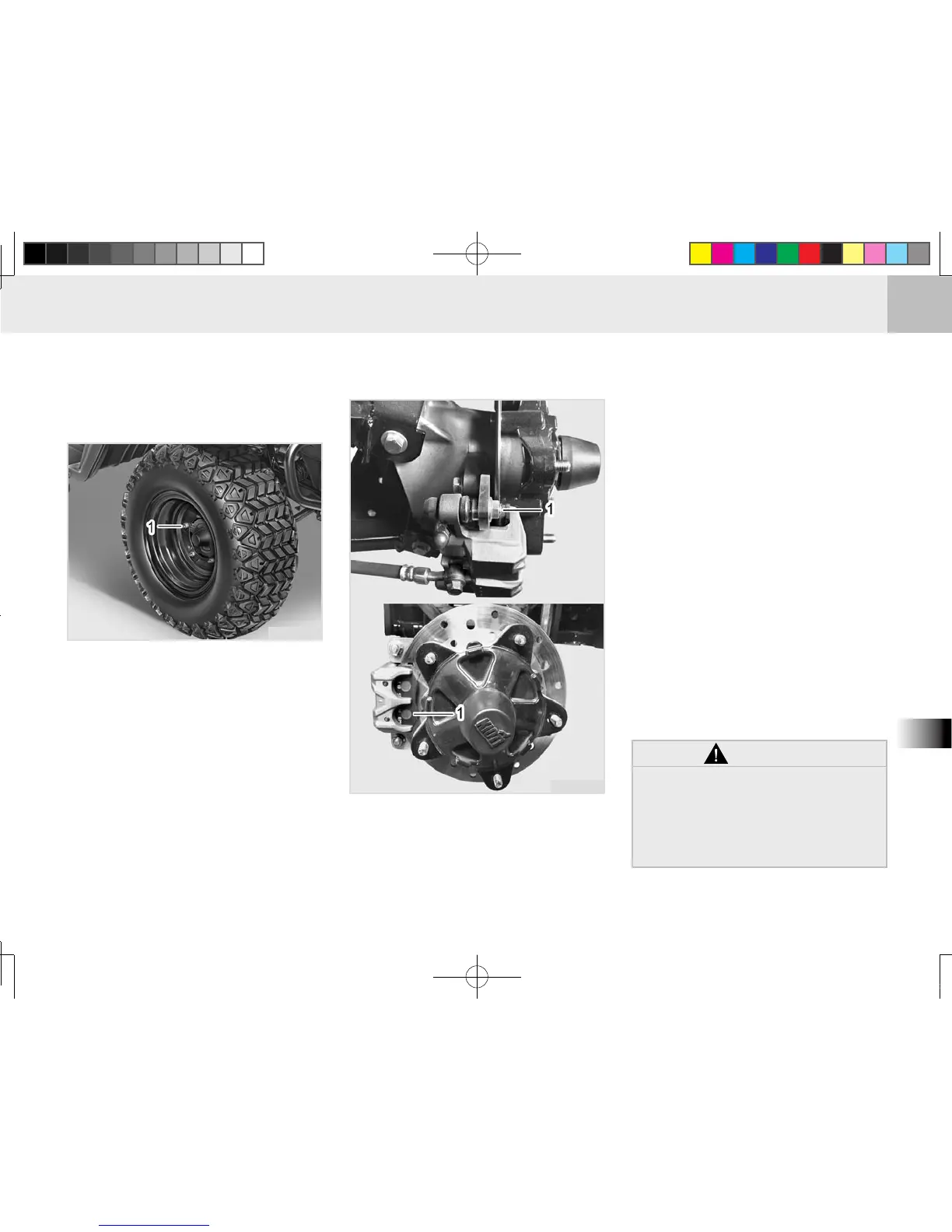

(1) Wheel Nut
(1) Brake Pad
5. If any of the brake pads on either
side of the disc is too thin, close to
0.04 in. (1 mm), both pads for that
disc as well as the pads for the
wheel on the other side should be
replaced.
6. Check the brake pads on the oth-
er axle, using the same procedure.
7. Check if the brake disc is abnor-
mally worn.
8. If the brake pads should be re-
placed with new ones or abnormal
wear is found on the disc, contact
your Dealer.
9. When reinstalling the wheel after
inspection, tighten the wheel nuts
rmly.
Driving with loose wheel nuts
is very dangerous and can
lead to overturn and collision.
Make sure that they are rmly
tightened.
WARNING
UUVo746A
UUVo747A
