1.5 CONNECTIONS OF PLUS II-C-0004

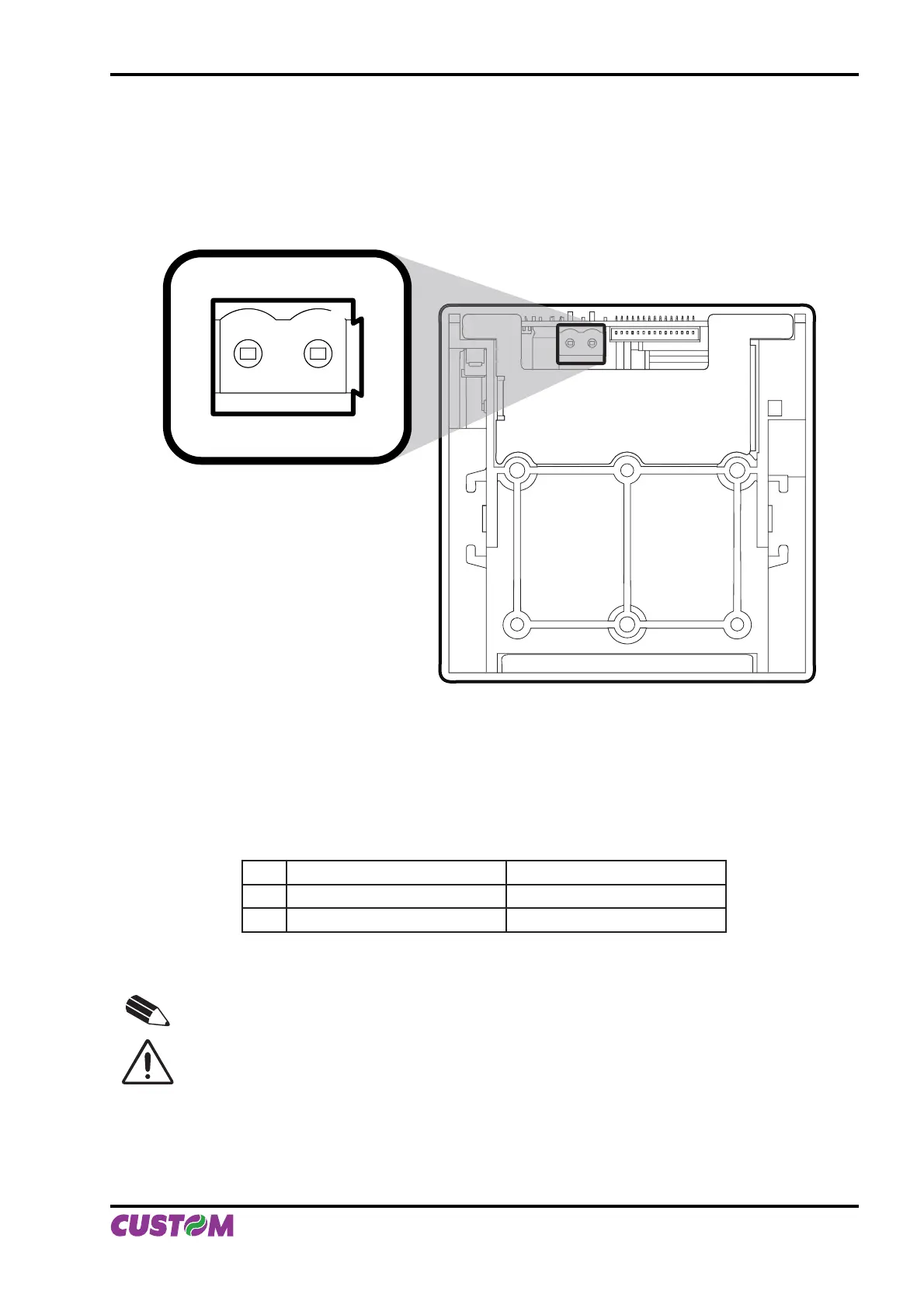

1.5.1 Power supply
The printer is equipped with a 2 pin male connector terminal block (90°) for the power supply. The signals on
the connector pins are as follows:
1
Model no. type:
Header: 90° Terminal block
(pitch 5.08mm)
Housing: Terminal block
(AWG 20-14)
PIN SIGNAL DESCRIPTION
1 GND Ground signal
2 +Vin* Logic supply voltage
NOTE
(*) For the electrical specifi cations see Chapter 3.
WARNING
Respect the polarity of the power supply.
(Fig.1.9)
1. INSTALLATION AND USE
User Manual PLUS II 1-9
