A.1.3 Data and power supply cables kit for PLUS II-S and PLUS II-T
The printer can be supplied with a data and power supply cables starter kit.
PCSKPLUS Starter kit cables for PCPLUS-S

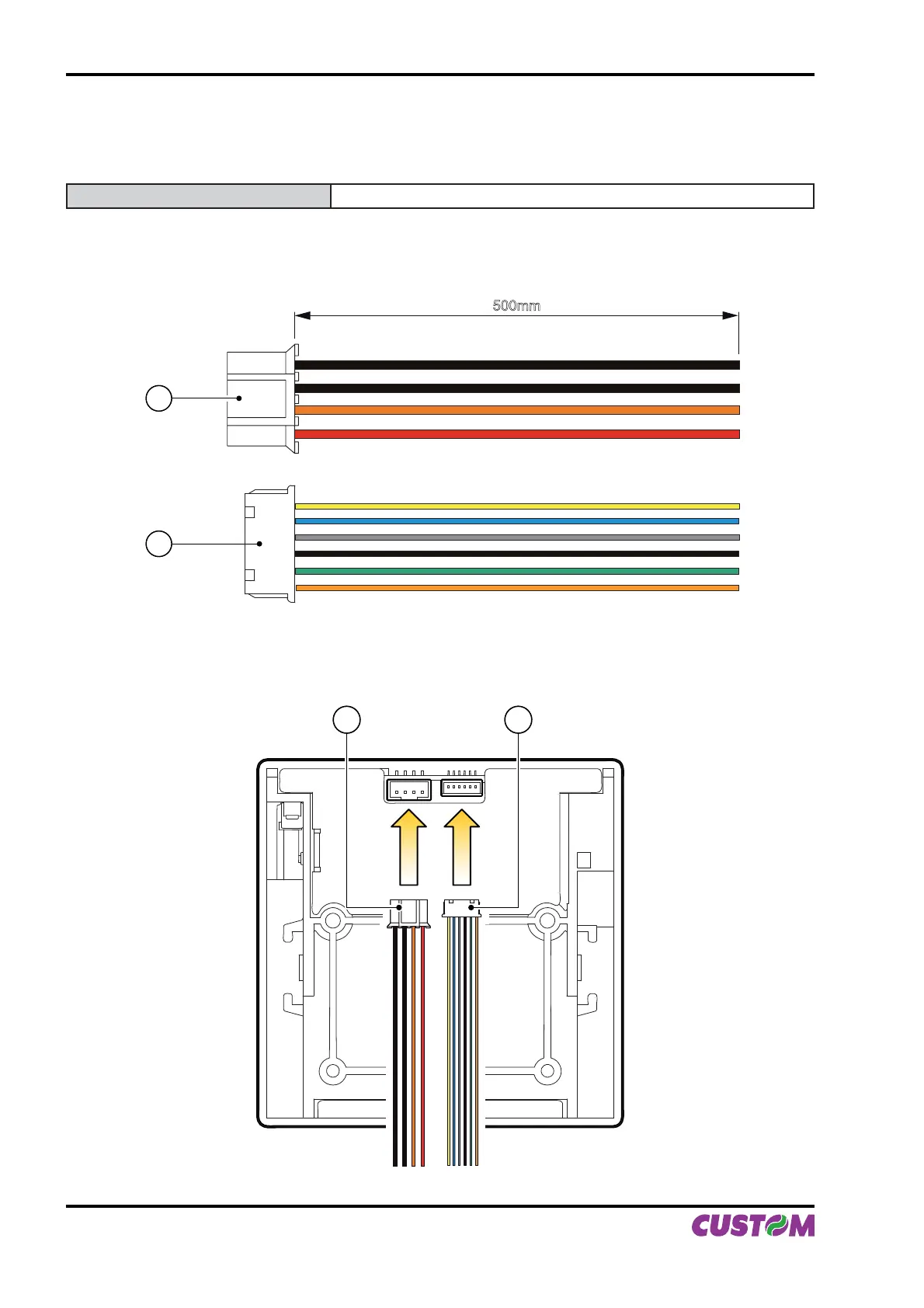

The kit includes (see fi g.A.9):
Power supply cable.1.
Data cable for serial interface.2.
1
2
500mm
To connect the cable proceed as follows (see fi g.A.10):
Connect the power supply cable (1) to the power supply connector in the rear of the printer;•
Connect the data serial interface cable (2) to the interface connector in the rear of the printer.•
1 2
(Fig.A.9)
(Fig.A.10)
