A.1 ACCESSORIES
A.1.1 Power supply

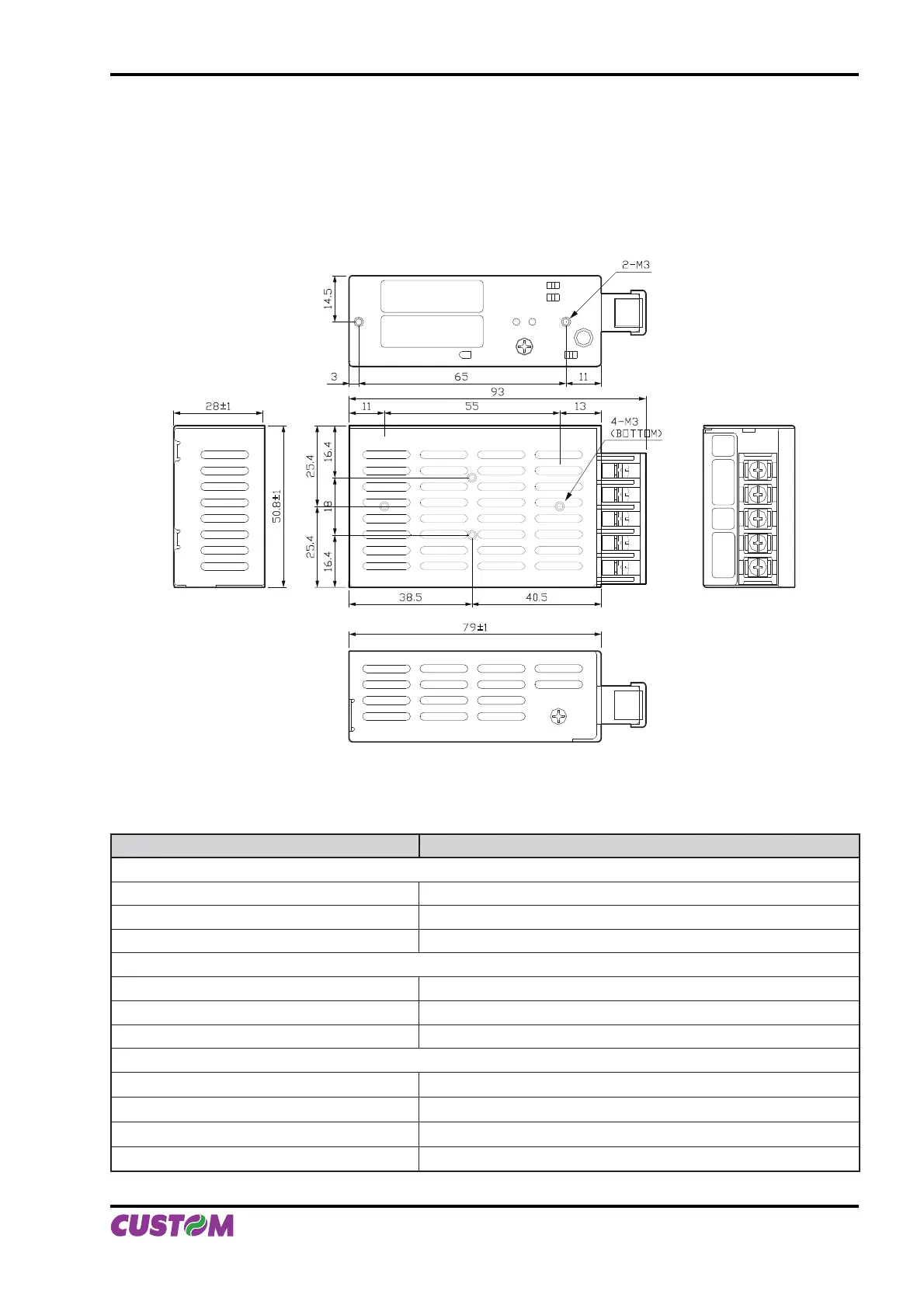

The fi g.A.1 illustrates the power supply provided by Custom to be used for printer operation of PLUS II-S, PLUS
II-S-0004, PLUS II-T, PLUS II-C, PLUS II-C-0004, PLUS II-P. The tab.A.1 gives the main technical specifi ca-
tions for power supply.
60-460-175-1.2
60-465-175-1.2
1. TERMINAL BLOCK: 5P, PITCH 7.62 mm WITH PC COVER
2. UNIT: mm
93
55
25.4
18 16.416.4
25.4
11 13
14.5
79±1
28±1
50.8±1
65
40.538.5
3 11
2-M3
4-M3
(BOTTOM)
+V
-V
PE
N
L
PPSPS-0025-05 Switching power supply 5V 25W
Input specifi cations
Input voltage AC: 85 ÷ 264 V DC: 120 ÷ 375 V
Current 0.8 A max at 100 V AC input
Input frequency 47 ÷ 63 Hz
Output specifi cations
Output voltage 5 V
Output current min.-max. 5 A
Effi ciency min. 72%
Environmental conditions
Operating temperature - 25 °C ÷ 70 °C
Humidity 20 ÷ 85 %
Storage temperature / Humidity - 25 ÷ 75 °C / 10 ÷ 95 % Rh (w/o condensation)
Protection devices: Short-circuit, overload and overvoltage.
(Fig.A.1)
(Tab.A.1)
