Custom Engineering PLUS II - 24 V 100 W Power Supply Specs

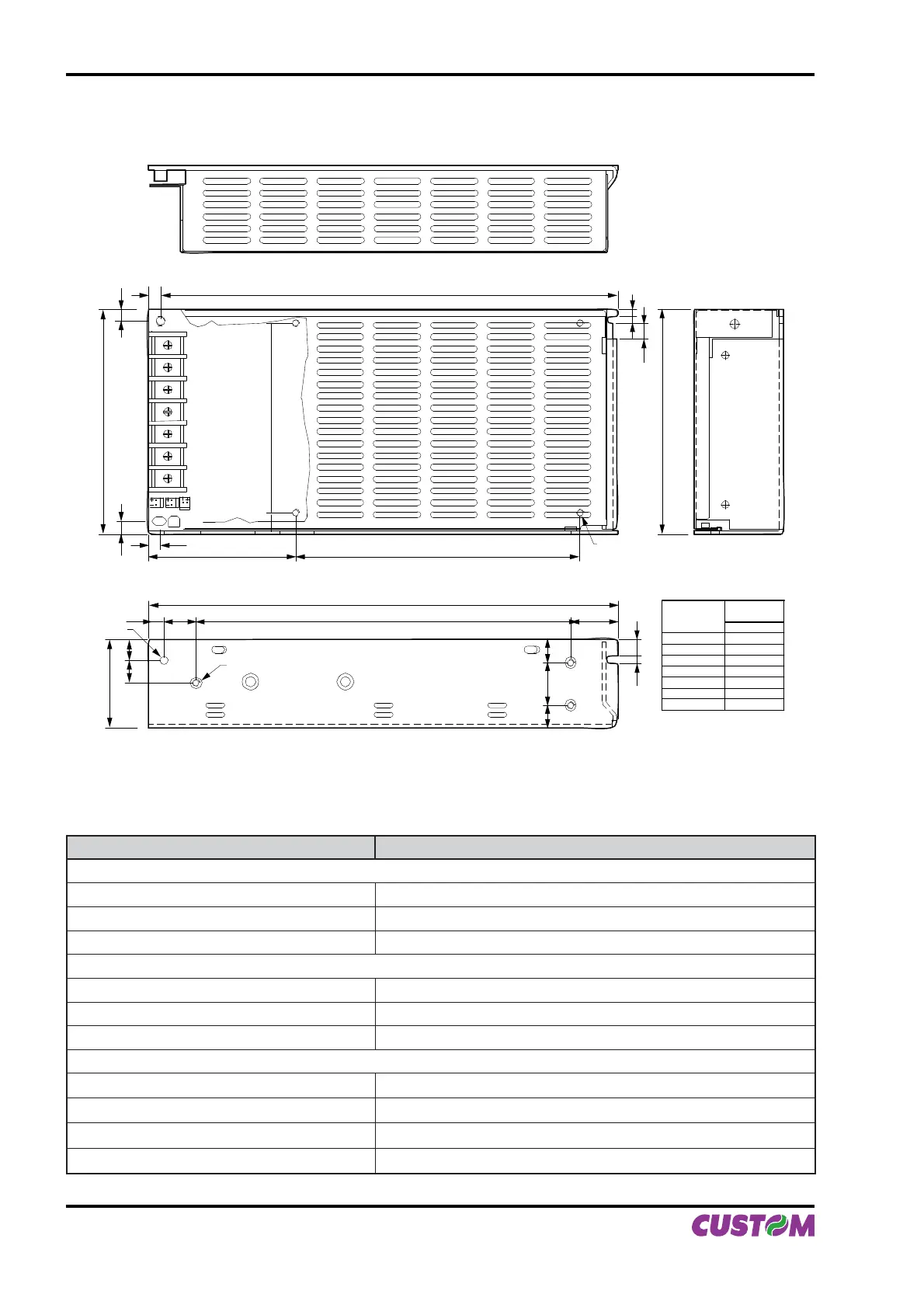

The fi g.A.2 illustrates the power supply provided by Custom to be used for printer operation of PLUS II-USB.
The tab.A.2 gives the main technical specifi cations for power supply.
95.0
CN1
9.0
+V
+V
-V
-V
FG
N
L
5
95.0
120.0
4 - M3 - P 0.5
4.5
5
6.5
3
3
193.0
5.5
62.0
< 8
± 0.1
± 0.15
± 0.25
± 0.4
± 0.8
± 1.5
± 0.3°
B
8 ÷ 25
25 ÷ 80
80 ÷ 250
250 ÷ 800
800 ÷ 2600
ANGULAR
TOLERANCE
RANGE
Note : Dimensioni in mm
20.0
10.0
7.03.5
10
18.0
198.0
158.0
3 - M3 - P 0.5
6.5
9.5
38
9.0
13.5
3.4 HOLE
PPSPS-100-24 Switching power supply 24V 100W
Input specifi cations
Input voltage 85 ÷ 264 V
Current 0 ÷ 4.5 A
Input frequency 47 ÷ 63 Hz
Output specifi cations
Output voltage 24 V
Output current min.-max. 0 ÷ 4.5 A
Effi ciency min. 80%
Environmental conditions
Operating temperature 0 ÷ 70 °C
Humidity 20 ÷ 85 % Rh (w/o condensation)
Storage temperature / Humidity -10 ÷ 85 °C / 10 ÷ 95 % Rh (w/o condensation)
Protection devices: Short-circuit, overload
(Fig.A.2)
(Tab.A.2)
