2.5 INTERFACES OF PLUS II-USB
2.5.1 USB interface
The printer is provided with a 6-pin male connector AMP-MODU II (90°). Refer to the table below for the con-
nector pin signals:
Mini-USB
1
5
Model no. type:
Header: AMP-MODU II (90°) 6 pin
PIN SIGNAL DESCRIPTION
1 V BUS +5 Vdc
2 D - Data -
3 D + Data +
4 N.C. Not connected
5 GND Ground signal

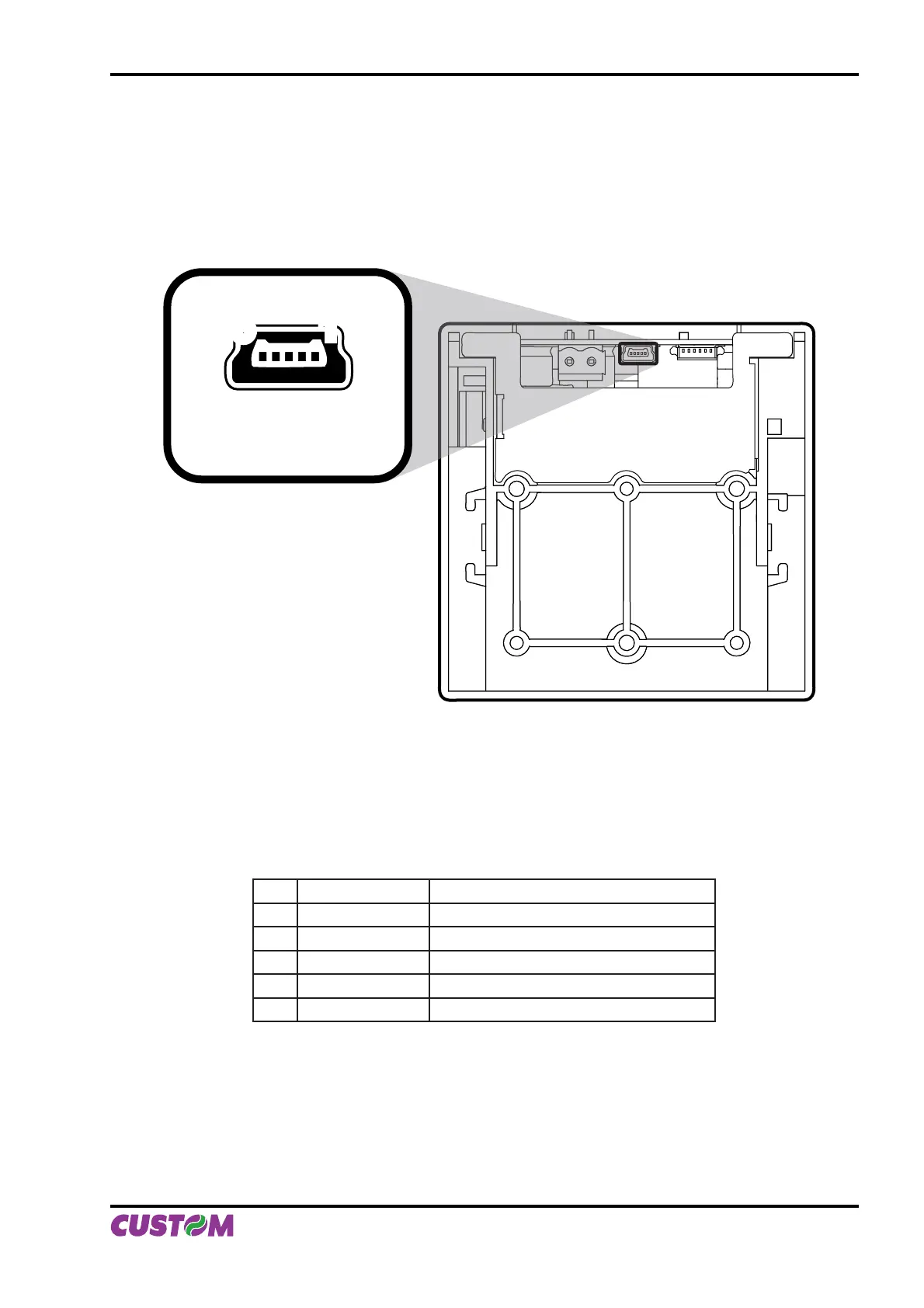

(Fig.2.10)
(Tab.2.5)
