3.2 DIMENSIONS

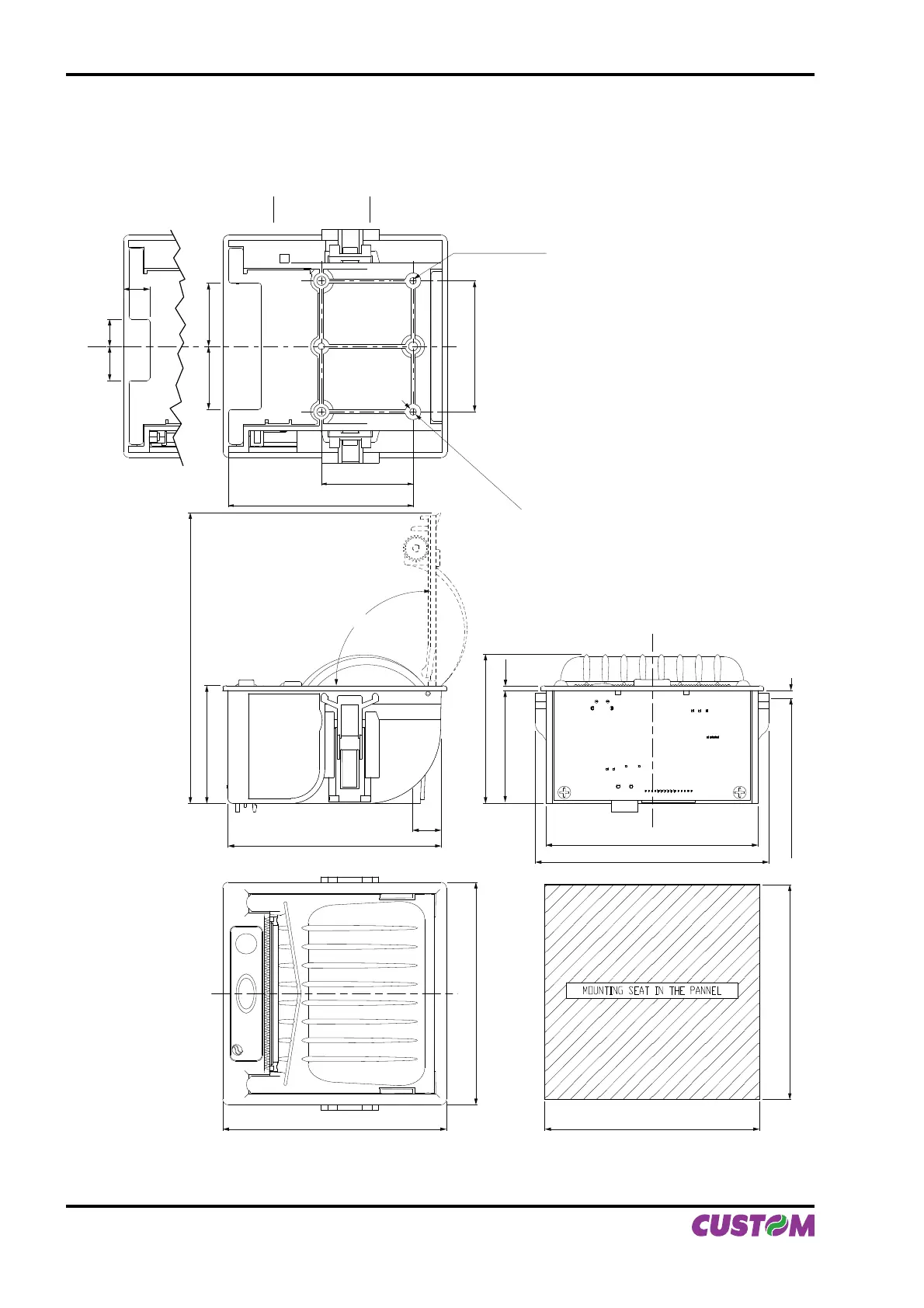

The fi g 3.1 shows the dimensions for PLUS II.
MOUNTING SEAT IN THE PANNEL
85.5
89
81
85
81.5
11
111
57
1,8
43,2
45
90°
10.1
13.1 10.4
Versions:
PLUS II-C PLUS II-C-0004 PLUSII-USB
PLUS II-P PLUS II-S-0004
Versions:
PLUS II-S
PLUS II-T
max panel thickness
82 ± 0.5
82 ± 0.5
50
24 24.2
N°3 screws Ø3
for plastic
N°3 threads (M3)
35
70,5
(Fig.3.1)
