2.2 INTERFACE OF PLUS II-S-0004
The printer with RS232 interface has a 6-pin male connector AMP-MODU II (90°). Refer to the table below for
the connector pin signals:
RS232
16
Model no. type:
Header: AMP-MODU II (no. 280379-2)
Housing: AMP-MODU II (no. 280360)
PIN SIGNAL IN / OUT DESCRIPTION
1 DTR OUT Data terminal ready
2 TX OUT Data transmission
3 RX IN Data reception
4 GND Ground signal
5 RESET IN Reset signal (active at a low level)
6 POWER-ON IN
Power-On signal (an impulse of at least
500 m/sec. active at a high level)

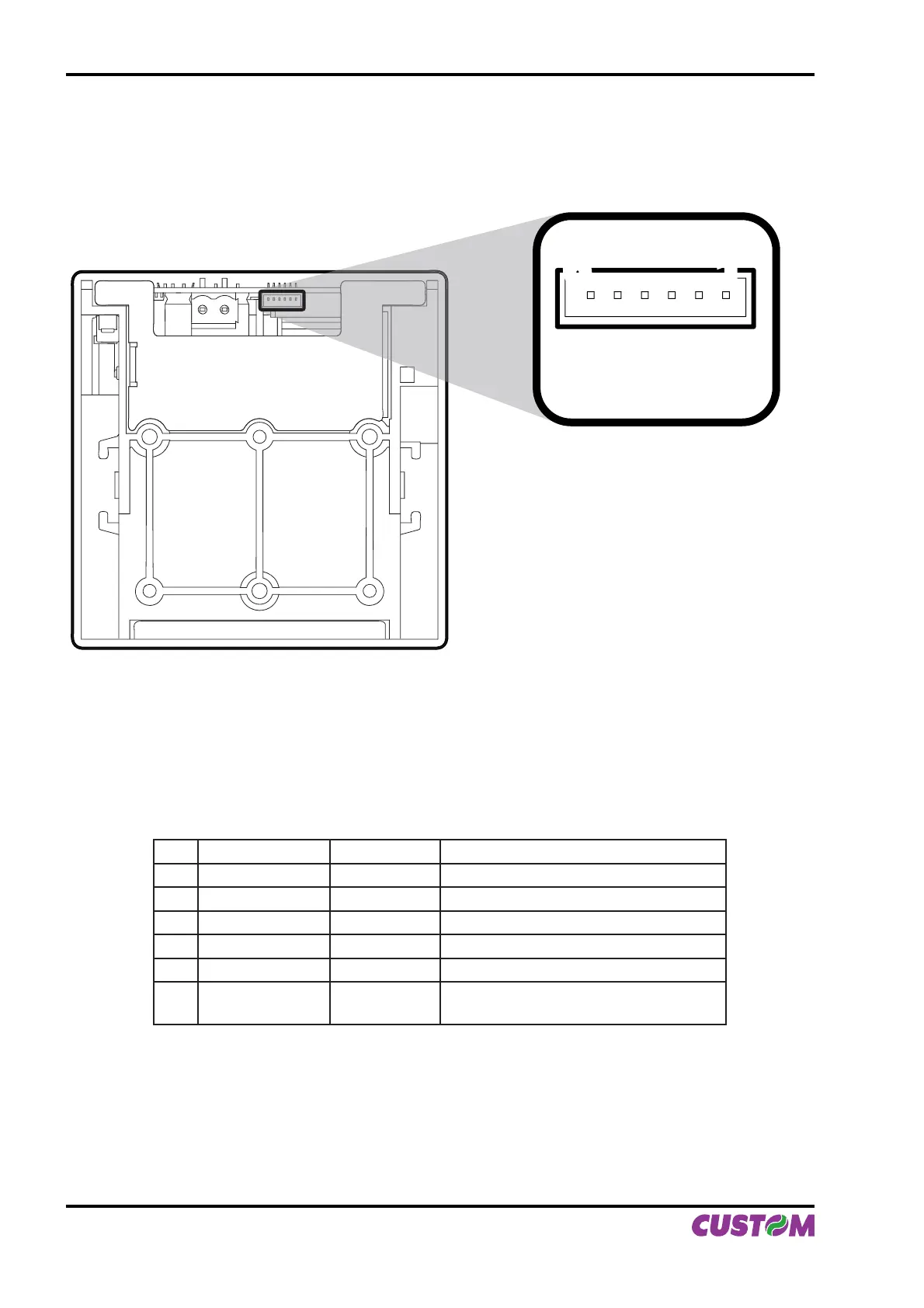

(Fig.2.3)
(Tab.2.2)
