2.2.1 Connection Printer-PC

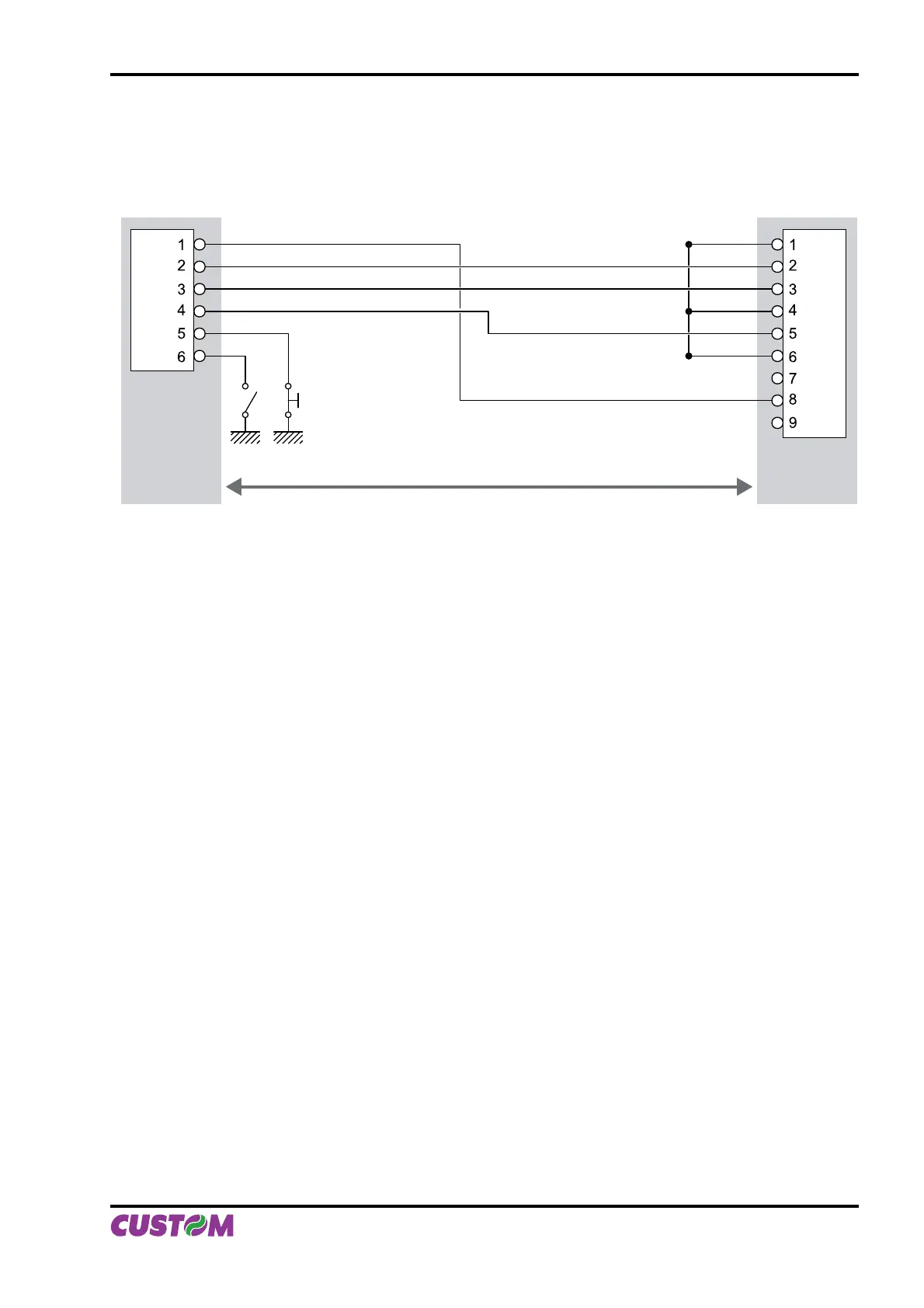

The diagrams below show a sample connection between printer and Personal Computer using a 6 pin fe-
male AMP MOUD II connector by printer side and a 9 pin female connector by a PC side.
Printer PC
DTR
DTR
TX
RX
GND
RX
TX
GND
(Fig.2.4)
