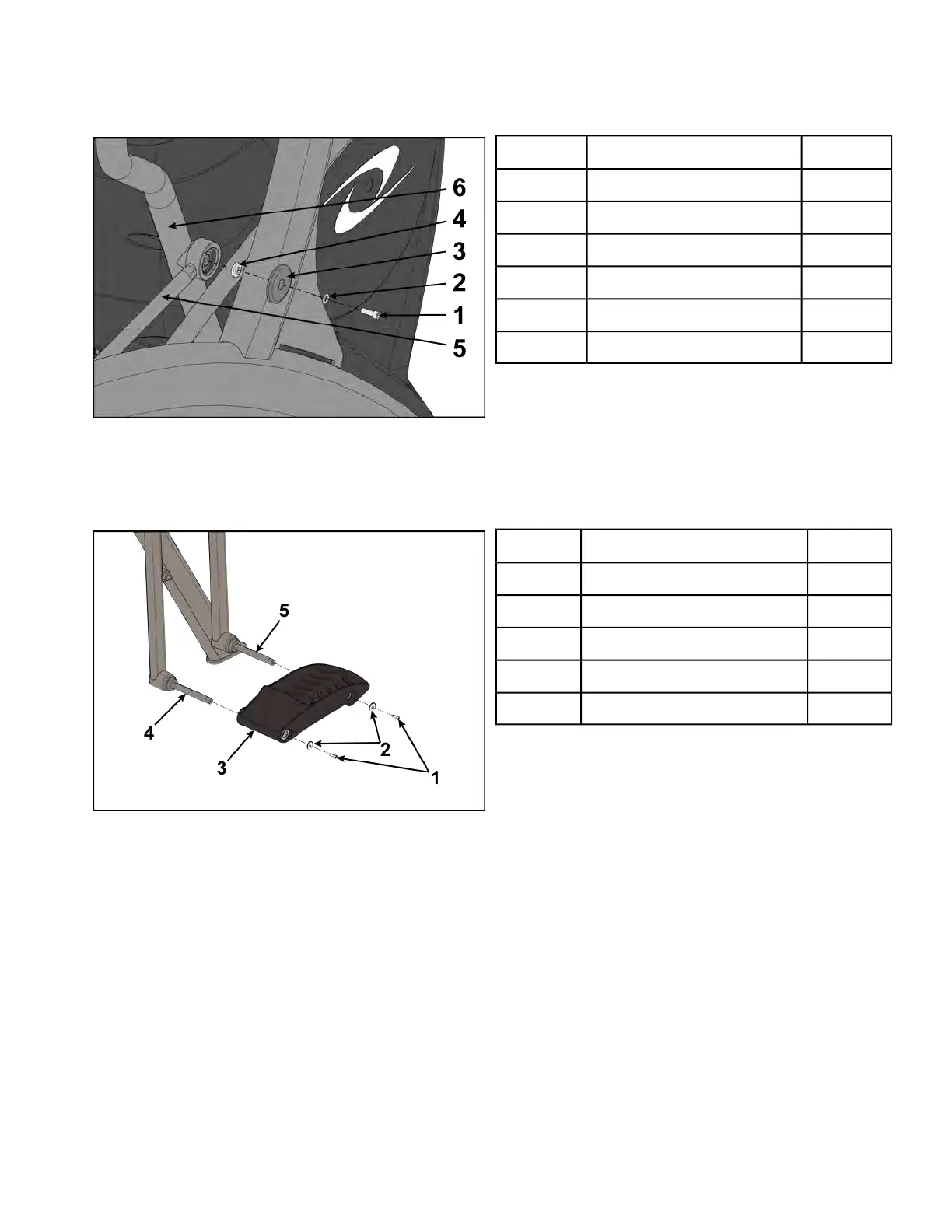

Remove front arm handle linkage
1. Remove screw, flat washer, cap, and spacer securing arm handle linkage using a 3/16” Allen wrench.
Qty.DescriptionItem
1Screw1
1Flat washer2
1Cap3
1Spacer4
1Arm handle linkage5
1Handle6
2. Remove arm handle linkage from handle.
Remove foot plate assembly
1. Remove both SHCS and washers securing foot plate using a 5/32” Allen wrench.
Qty.DescriptionItem
2SHCS1
2Washer2
1Foot plate3
1Front foot plate shaft4
1Rear foot plate shaft5
2. Remove foot plate from front and rear foot plate shafts.
Page 107 of 202
Cybex 772A, 772AT Arc Trainer Part Number
