Operate the unit at all levels to verify proper operation.
Foot Plate Arms
Tools Required:
• 3/16” Allen wrench
• 5/32” Allen wrench
• 7/32” Allen wrench
• Phillips screwdriver
• Rubber mallet
• Torque wrench, with 7/32" Allen wrench
• Loctite
®
#242
Remove linkage rod
Procedure shows right side.

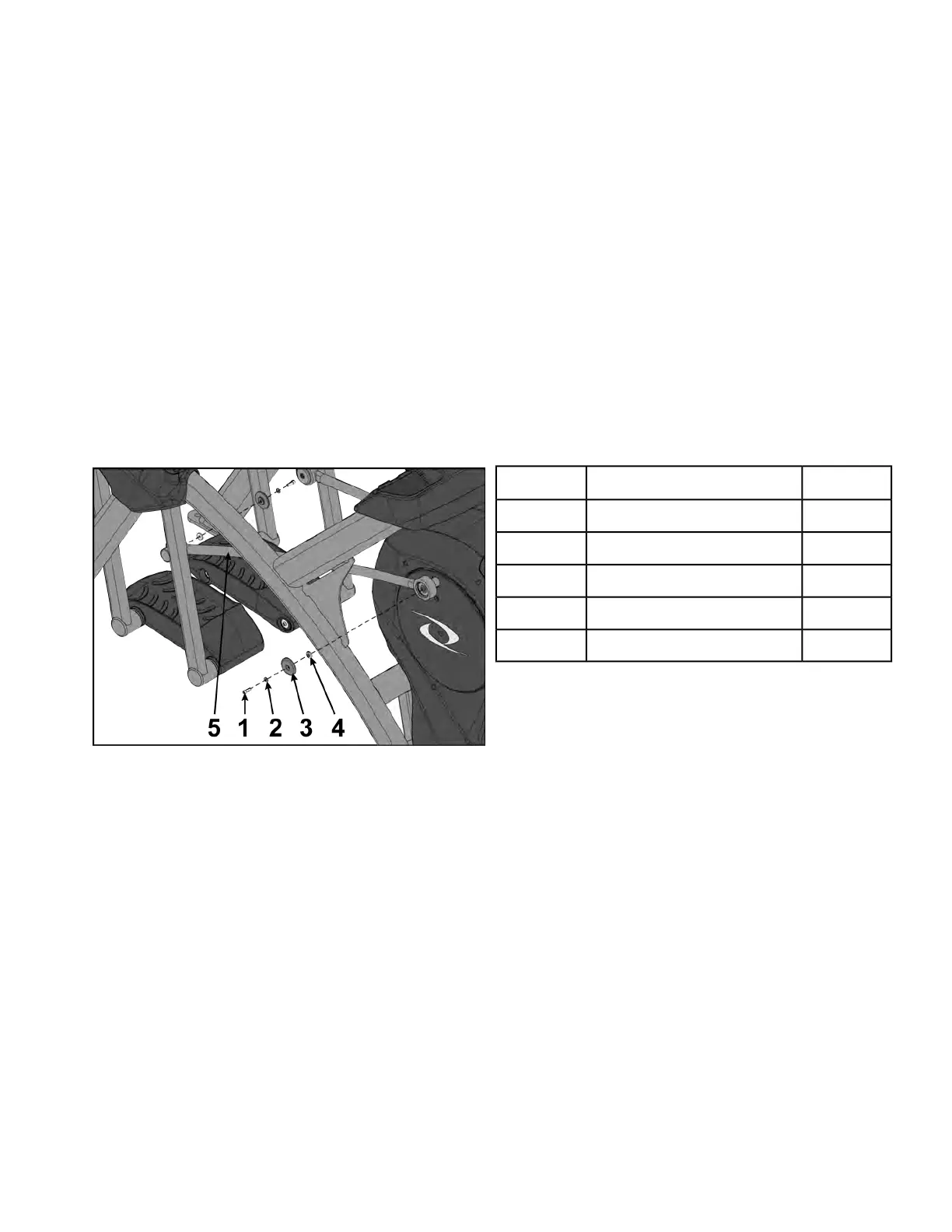

1. Remove Socket Head Cap Screw (SHCS), flat washer, cap and spacer from both ends of linkage
rod using a 3/16” Allen wrench.
Qty.DescriptionItem
2SHCS, .250-201
2Flat washer2
2Cap3
2Spacer4
1Linkage rod5
2. Remove linkage rod.
Page 106 of 202
