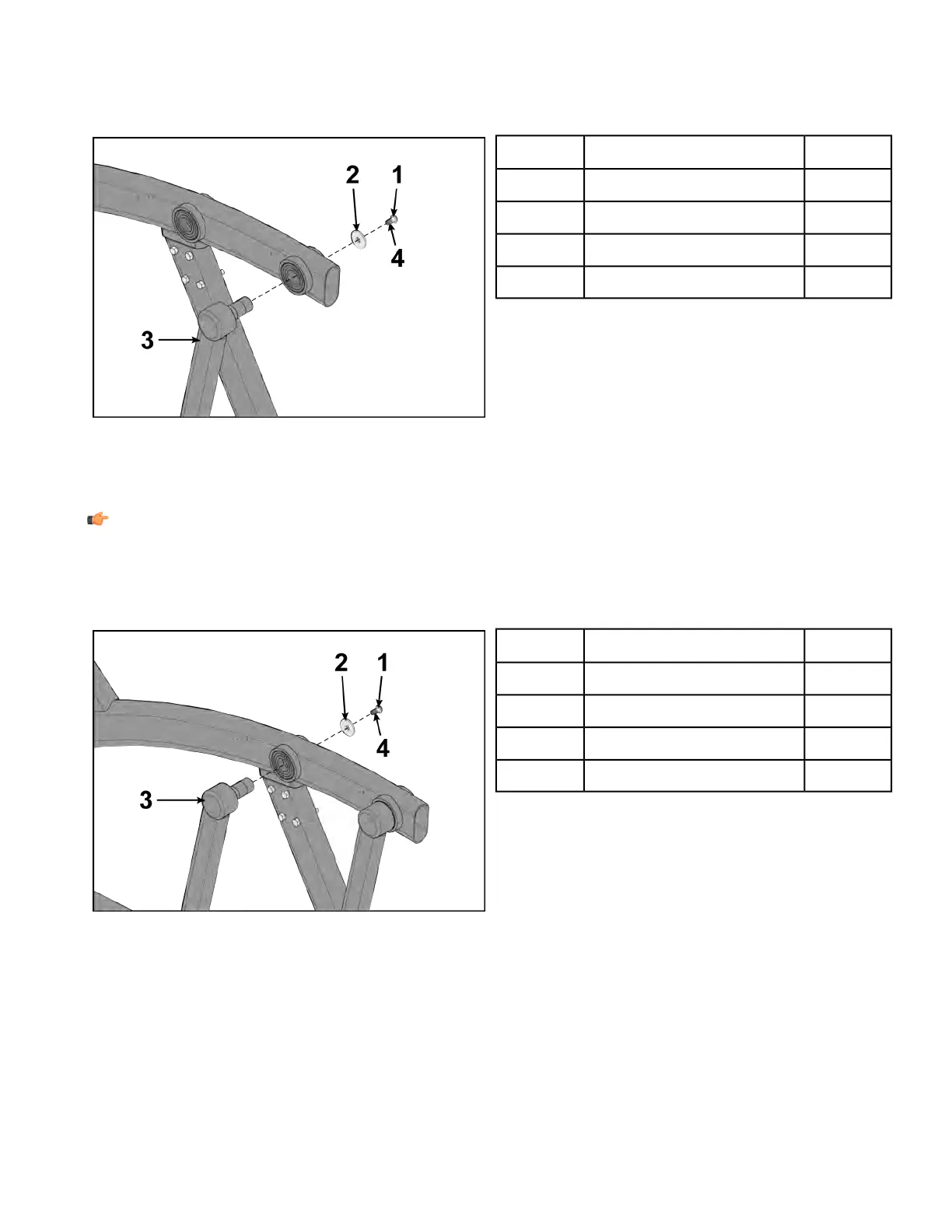

Install rear foot plate arm
1. Position rear foot plate arm in place.
Qty.DescriptionItem
1BHSCS1
1Washer2
1Rear foot plate arm3
1Loctite
®
#2424
2. Place a drop of Loctite on the BHSCS and another drop inside the shaft into where the BHSCS will
be tightened.
3. Install BHSCS and washer to rear foot plate arm using a 7/32” Allen wrench.
NOTE: BHSCS must be tightened to a minimum of 250 lbs-in.
Install front foot plate arm
1. Position front foot plate arm in place.
Qty.DescriptionItem
1BHSCS1
1Washer2
1Front foot plate arm3
1Loctite
®
#2424
2. Place a drop of Loctite on the BHSCS and another drop inside the shaft into where the BHSCS will
be tightened.
3. Install BHSCS and washer to front foot plate arm using a 7/32” Allen wrench.
BHSCS must be tightened to a minimum of 250 lbs-in.
Page 111 of 202
