CYBEX Arc Trainer 772A User Manual

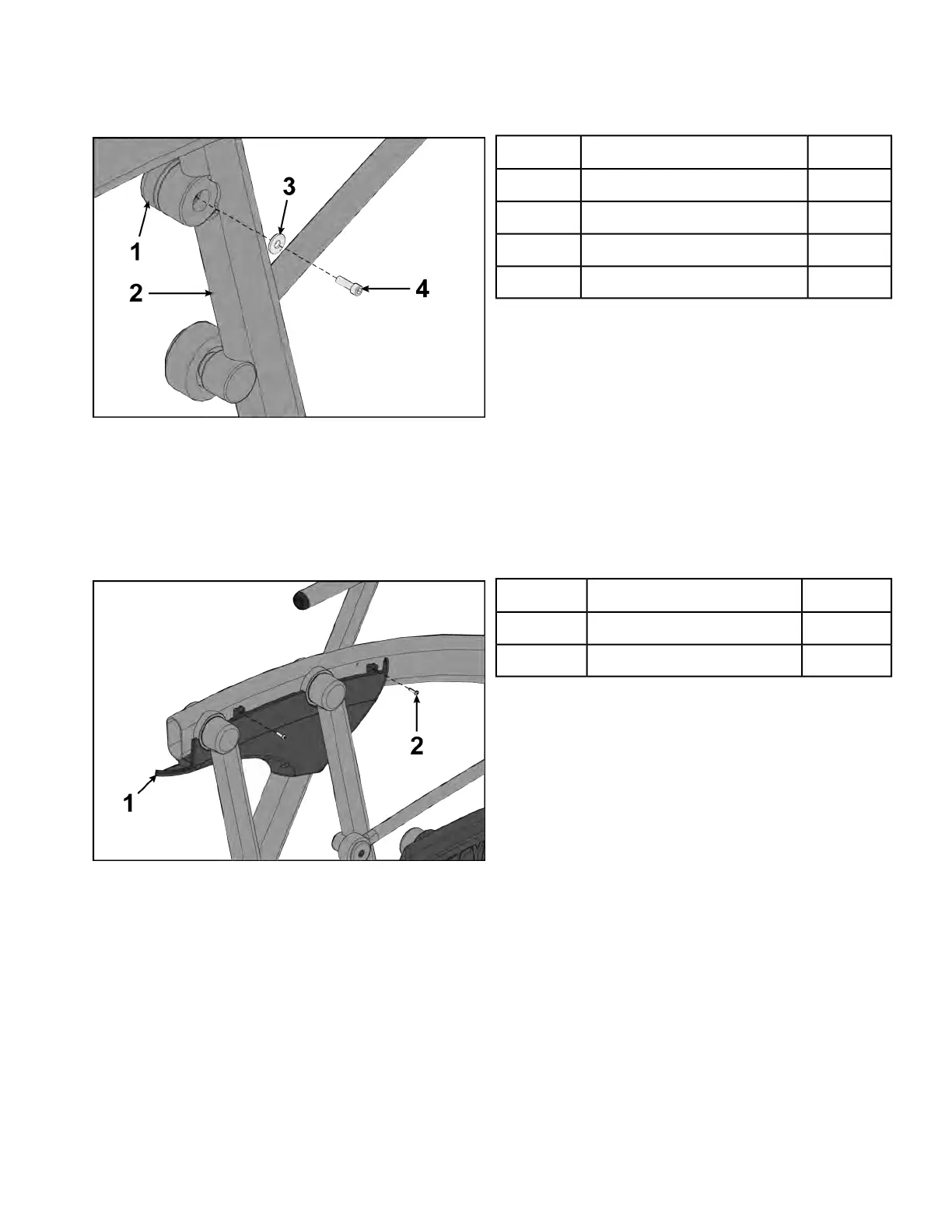

Install rear arm handle linkage
1. Install arm handle linkage to front foot plate arm.
Qty.DescriptionItem
1Arm handle linkage1
1Front foot plate arm2
1Flat washer3
1Screw4
2. Place a drop of loctite on threads of screw. Place another drop of loctite into the threads of the shaft.
3. Install screw and flat washer to arm handle linkage and front foot plate arm using a 3/16” Allen
wrench.
Install pivot covers
1. Install the left inner rear cover with two screws using a Phillips screwdriver.
QtyDescriptionItem
1Left inner rear cover1
2Screws2
Page 112 of 202
