CYBEX Arc Trainer 772A User Manual

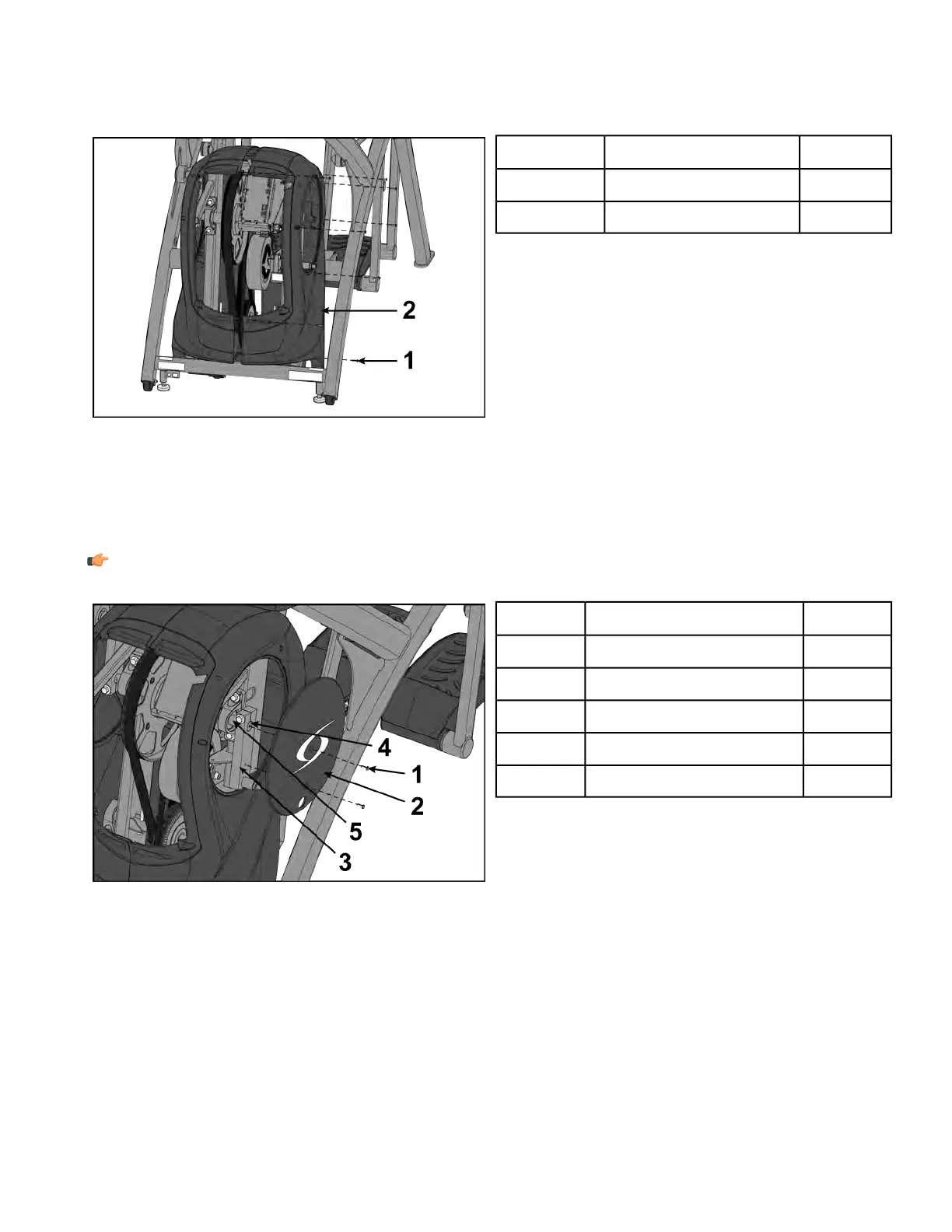

Install shrouds
1. Place both shrouds in position.
Qty.DescriptionItem
7Screw1
1Left shroud2
2. Install screws securing each side cover using a long Phillips screwdriver.
Install crank covers
1. Inspect crank arm mounting. Crank arm should be flush with crank shaft. Adjust with 9/16” socket
wrench if needed.
NOTE: Crank shaft bolt must be tightened to 30 lbs-ft.
Qty.DescriptionItem
2Screw1
1Crank cover2
1Crank arm3
1Flush mount4
1Crank shaft5
2. Place each crank cover in position.
3. Place Loctite
®
#242 on screws securing crank covers.
4. Install screws securing each crank cover in place using a Phillips screwdriver.
Page 119 of 202
