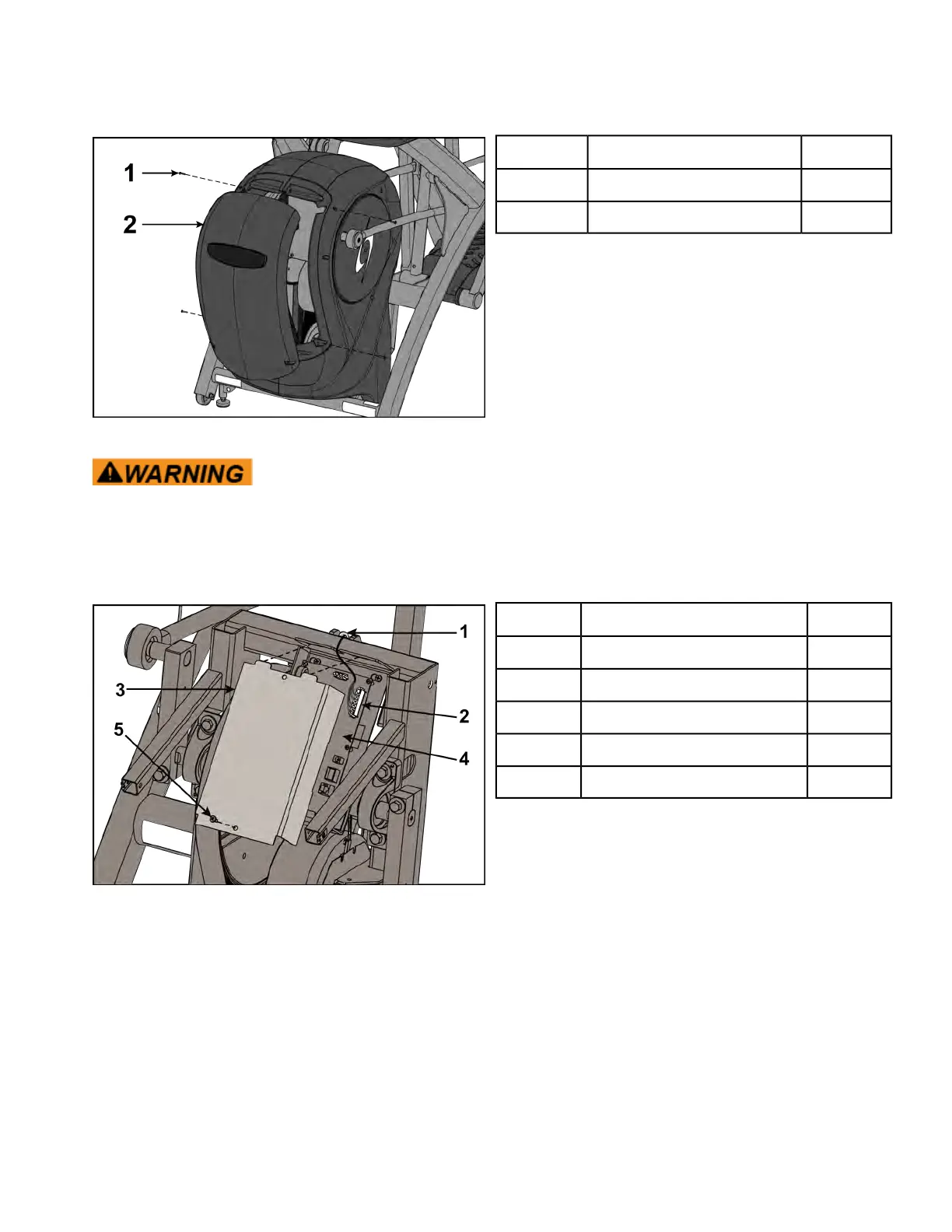

Remove front access cover
1. Remove screws securing front access cover using a Phillips screwdriver.
Qty.DescriptionItem
4Screw1
1Front access cover2
2. Remove access cover.
Burn hazard. Do not touch flywheel until cool.
Remove control board assembly
1. Remove controller cover using a Phillips screwdriver.
Qty.DescriptionItem
1Cable tie1
1Incline motor cable2
1Controller cover3
1Control board4
1Screw5
2. Disconnect all cables from control board.
3. Remove screws securing control board in place using a Phillips screwdriver.
Install control board assembly
1. Place control board assembly in position on frame.
2. Install the screws securing the control board assembly in place using a Phillips screwdriver.
