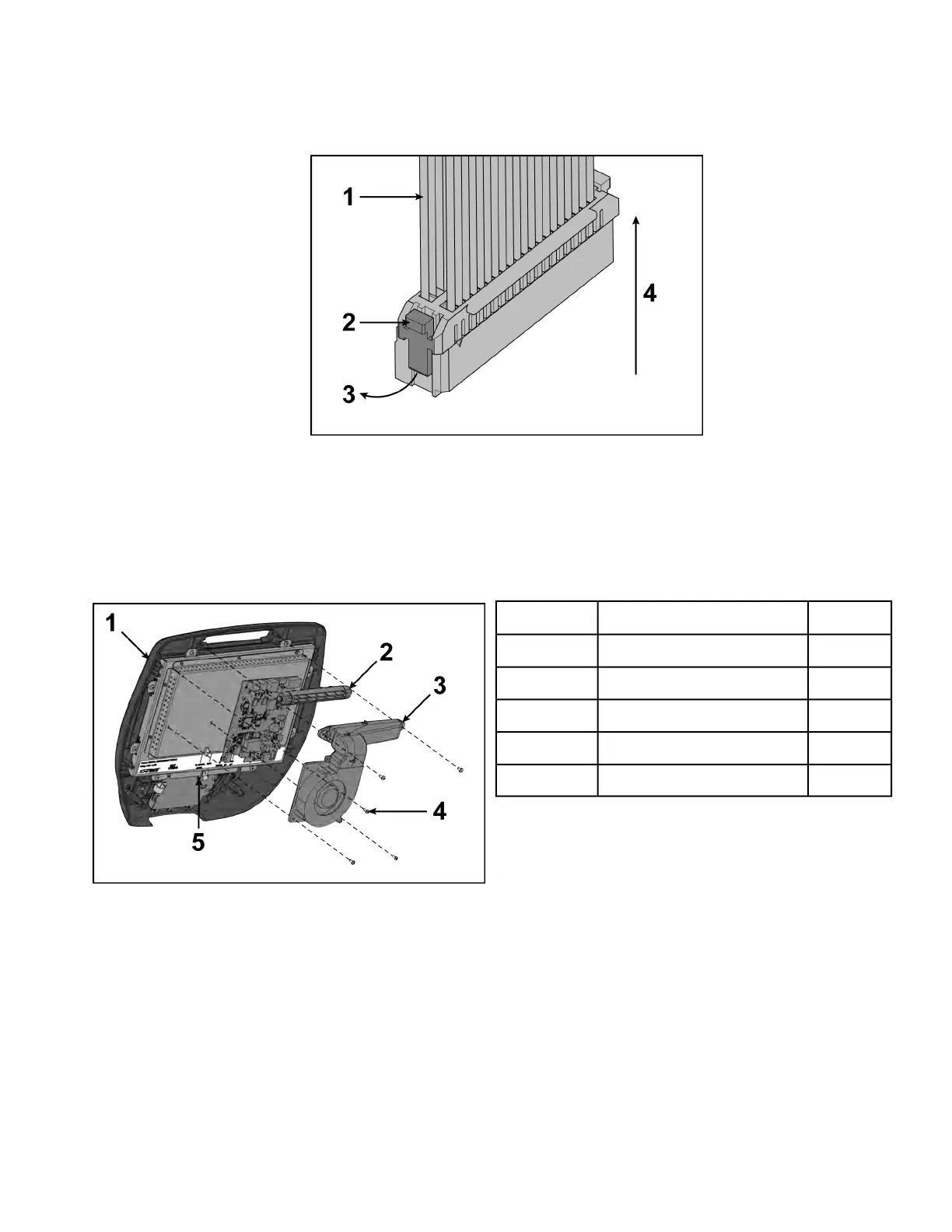

3. Unplug optional iPod cable.
The iPod cable is held in place by a notch in the access cover.
a) Press in both side latches of cable connector.
b) Ensure latches disengage from the connector.
c) Unplug cable by holding down latches on both sides and pulling straight out from connector.
Do not pull on wires, remove by connector.
Remove fan
1. Unplug CardioTouch cable from CardioTouch board.
Qty.DescriptionItem
1Console assembly1
1Louver2
1Fan3
5Screw4
1CardioTouch cable5
2. Unplug the fan cable from the MCC board.
3. Remove screws securing the fan and louver to the console assembly using a Phillips screwdriver.
Page 156 of 202
Cybex 772A, 772AT Arc Trainer Part Number
