CYBEX Arc Trainer 772A User Manual

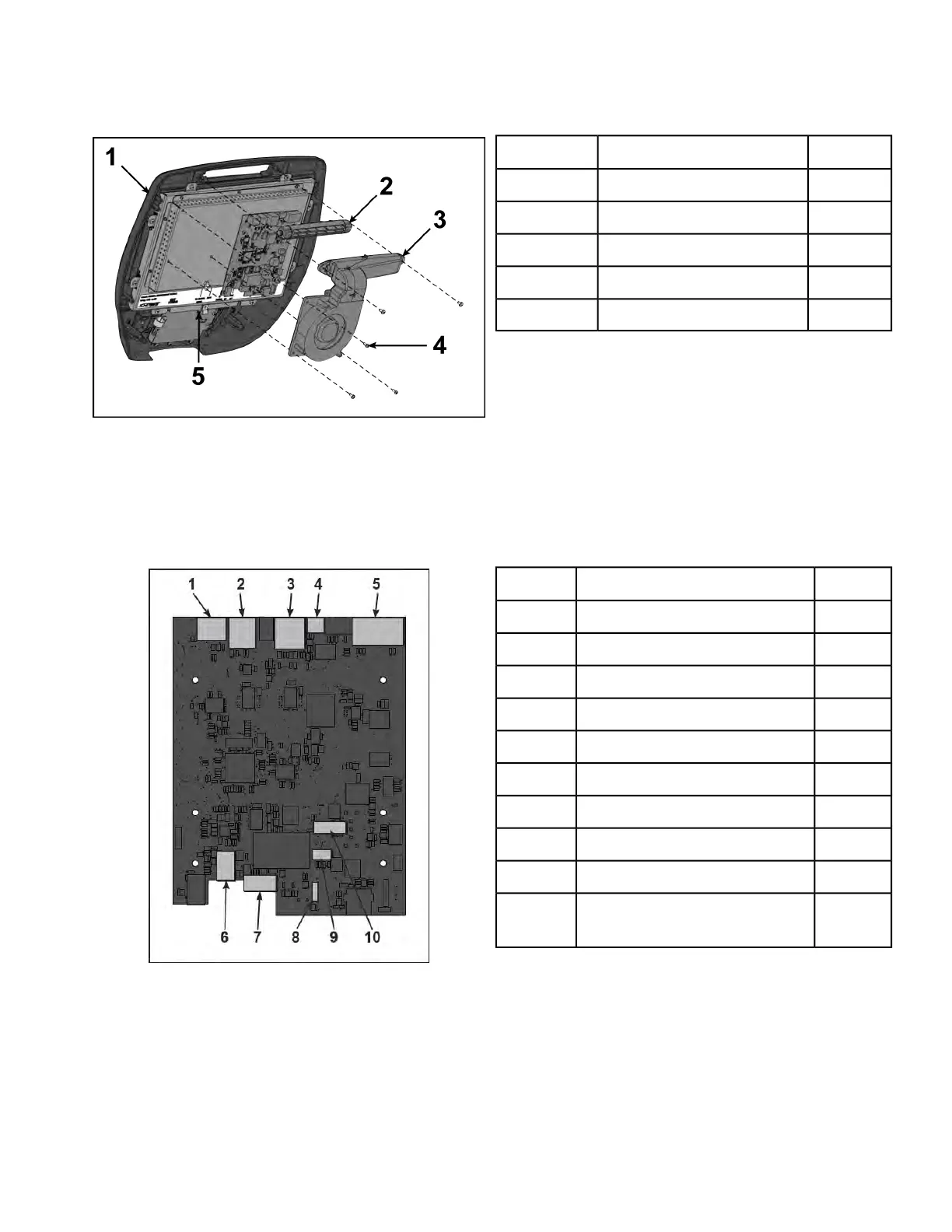

Install fan
1. Install screws securing fan and louver to console assembly using a Phillips screwdriver.
Qty.DescriptionItem
1Console assembly1
1Louver2
1Fan3
5Screw4
1CardioTouch cable5
2. Plug fan cable into MCC board.
Connect console cables
1. Install console cables to MCC board.
MCC board cables
Qty.DescriptionItem
1MYE/BV, Gray1
1CSAFE, Red2
1Console cable3
1Fan4
1Upper display5
1Headphone jack6
1iPod (optional)7
1Heart rate8
1Handset membrane9
1
iPod board assembly (option-
al)
10
2. Plug optional wireless audio antenna into controller if installed.
Install console assembly
Install the six screws securing the console assembly to the console support using a Phillips screwdriver.
