Qty.DescriptionItem

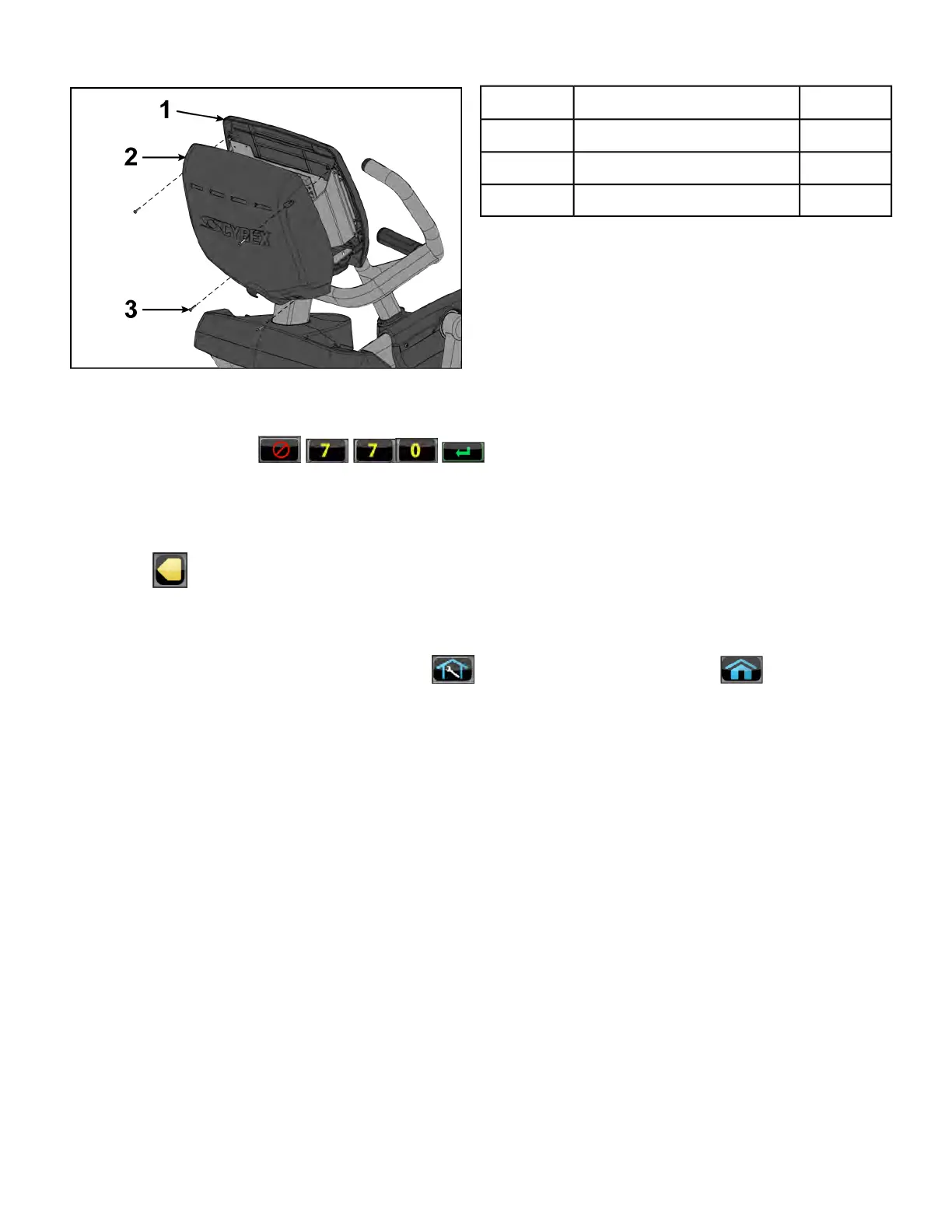

1Console assembly1
1Back cover2
4Screws3
Calibrate CardioTouch screen
1. Tap the Access Toolbox icon to display the Access to Toolbox login screen.
2.
Enter the sequence: .
3. Tap the OEM Diags icon, then the Touch Test icon.
4. Touch the CardioTouch screen to display cross hairs. If the CardioTouch screen is not calibrated,
the cross hairs will not line up where the touch is made.
5.
Tap the icon to return to the Diagnostics screen.
6. Tap the Touch Cal icon.
7. Tap the targets in each of the four corners of the CardioTouch screen as indicated.
8.
Exit Set Up Mode by tapping the Toolbox icon, then tap the Home icon . The screen will
refresh.
Complete installation
1. Plug the optional power cord into the power outlet.
2. Operate the unit at all levels to verify proper operation.
E3 View Bezel
Tools Required:
• Phillips screwdriver
• Torque screwdriver
• Clean cloth
• Rubbing alcohol
• ESD (Electrostatic Discharge) grounding strap
Disconnect Power Source
Unplug the power cord from the power outlet.
Page 176 of 202
Cybex 772A, 772AT Arc Trainer Part Number
To Next Page
