CYBEX Arc Trainer 772A User Manual

Connect console cables

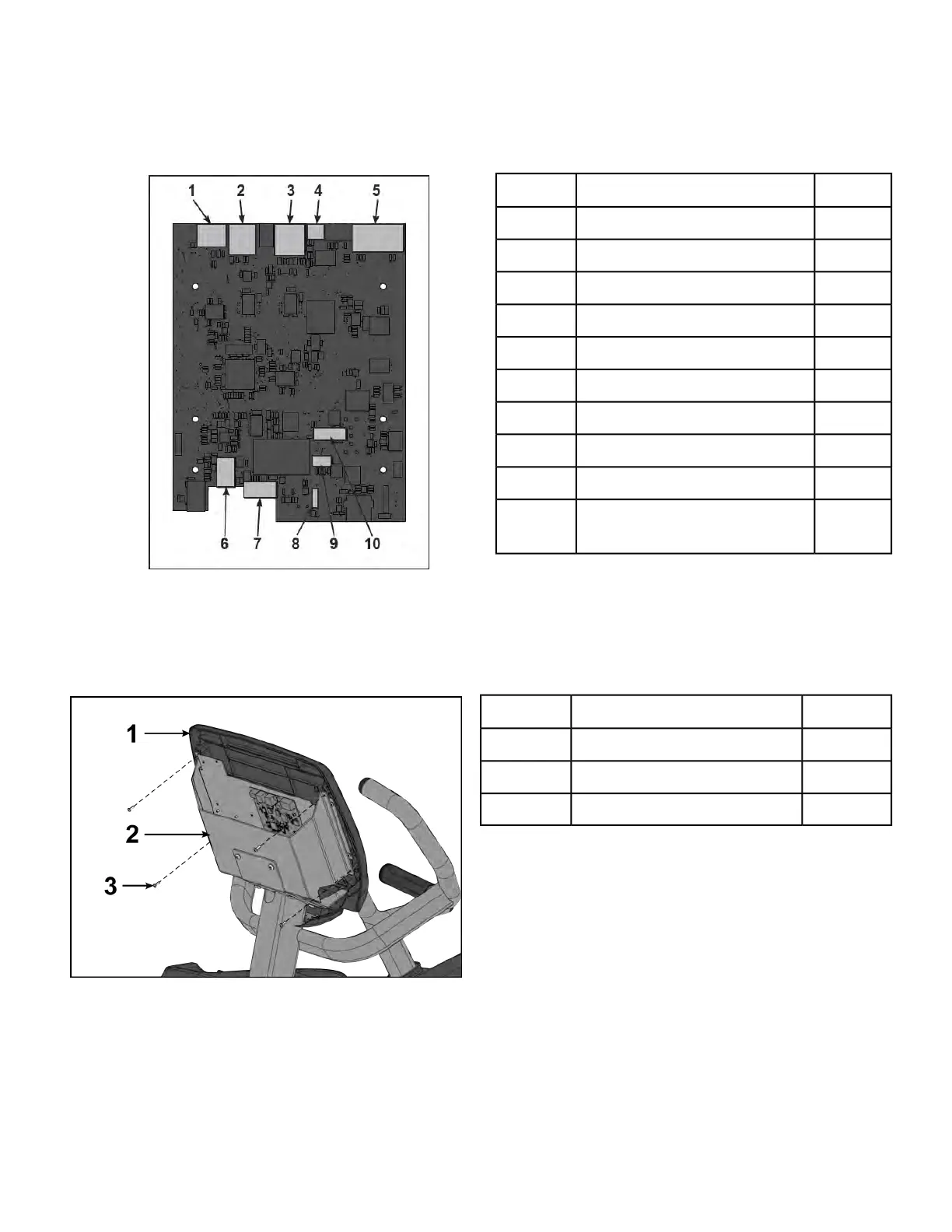

1. Install console cables to MCC board.
MCC board cables
Qty.DescriptionItem
1MYE/BV, Gray1
1CSAFE, Red2
1Console cable3
1Fan4
1Upper display5
1Headphone jack6
1iPod (optional)7
1Heart rate8
1Handset membrane9
1
iPod board assembly (option-
al)
10
2. Plug optional wireless audio antenna into controller if installed.
Install console assembly
Install the six screws securing the console assembly to the console support using a Phillips screwdriver.
Qty.DescriptionItem
1Console assembly1
1Console support2
6Screws3
Software Update
Perform the Software Update for proper operation.
Install back cover
Install the four screws securing the back cover to the console assembly using a Phillips screwdriver.
Page 175 of 202
