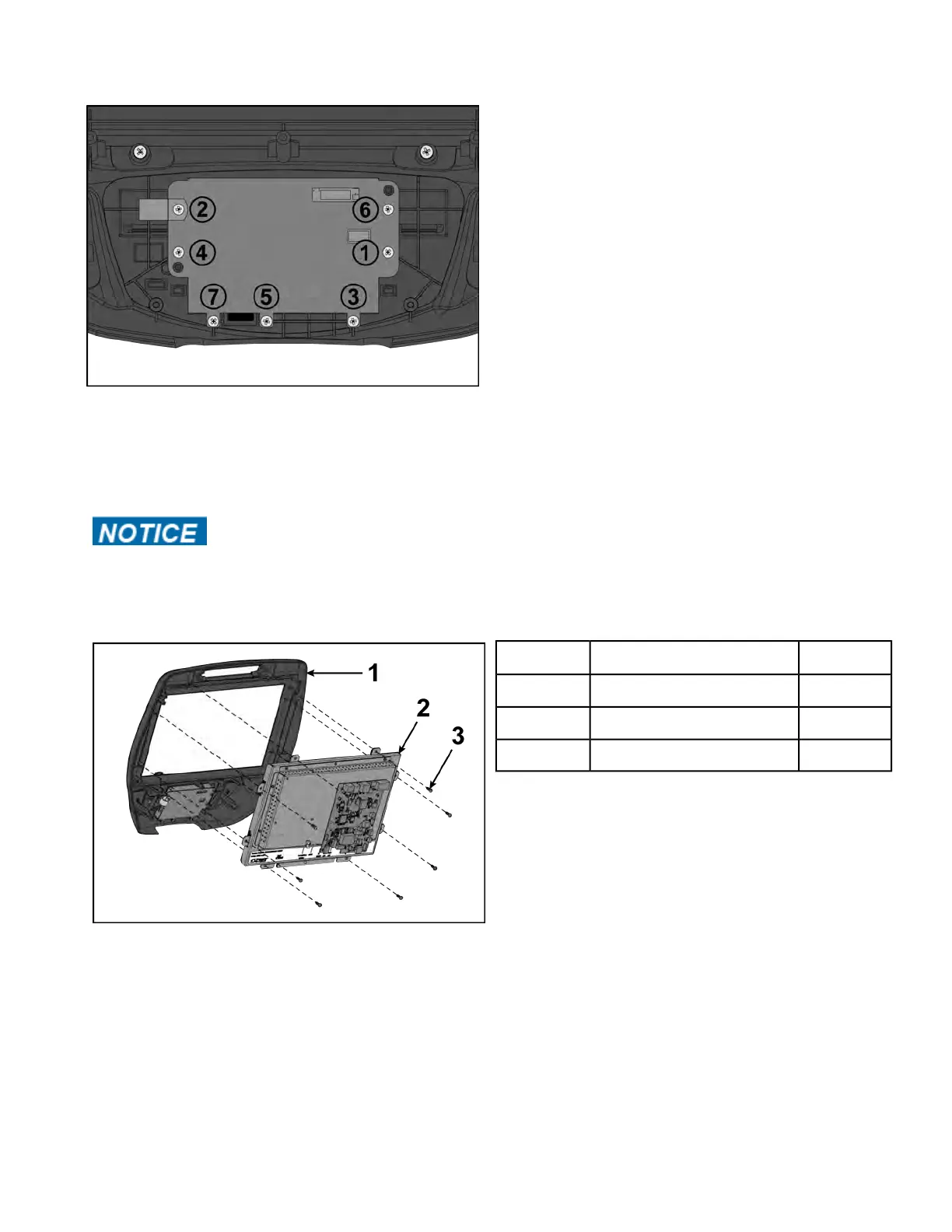

3. Tighten the seven screws in the order shown to 4 in-lbs (0.45 Nm) using a torque screwdriver.
4. Connect the ground cable connector to the tab on fan mounting plate or optional E3 View Monitor
if installed.
5. Screw the coax cable to the optional E3 View Monitor if installed.
Install E3 View monitor
1.
Component damage. Do not touch front of E3 View Monitor. Oil from
fingertips will mark screen.
Remove protective cover from new E3 View monitor screen and place on old E3 View monitor.
2. Install eight screws securing the E3 View Monitor to bezel using a Phillips screwdriver.
Qty.DescriptionItem
1Bezel1
1E3 view monitor2
8Screw3
