Install Cybex GO monitor cables
1. Plug the power, ethernet cable, and control board cable into the Cybex GO monitor.
Qty.DescriptionItem
1Power cable1
1Cat6 ethernet cable2
1Coax cable3
1Control board cable4
2. Screw the coax cable into the Cybex GO monitor.
3. Install the ground cable to the Cybex GO monitor using a 11/32” nut driver.
Connect console cables

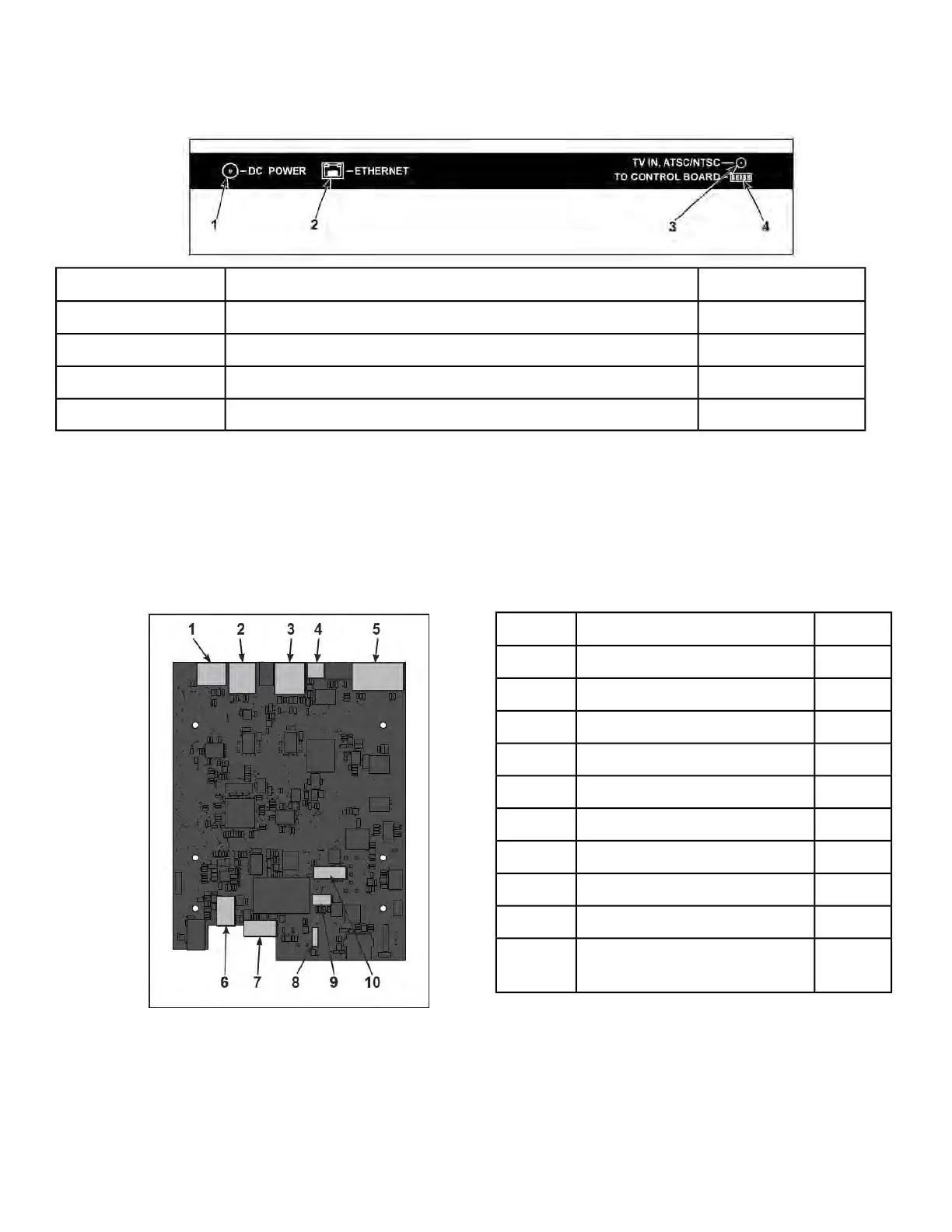

1. Install console cables to MCC board.
MCC board cables
Qty.DescriptionItem
1MYE/BV, Gray1
1CSAFE, Red2
1Console cable3
1Fan4
1Upper display5
1Headphone jack6
1iPod (optional)7
1Heart rate8
1Handset membrane9
1
iPod board assembly (option-
al)
10
2. Plug optional wireless audio antenna into controller if installed.
Install console assembly
Install the six screws securing the console assembly to the console support using a Phillips screwdriver.
Page 198 of 202
