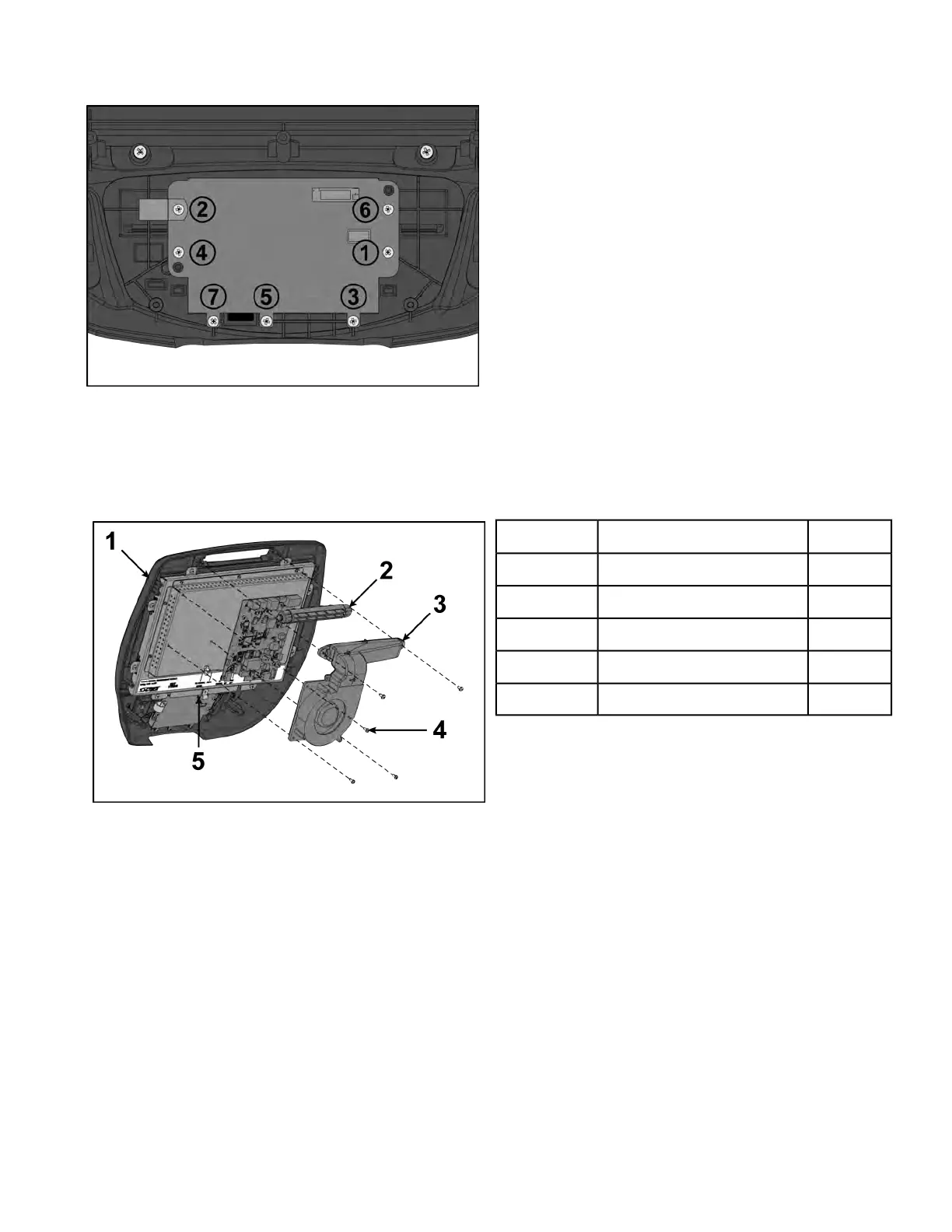

4. Tighten the seven screws in the order shown to 4 in-lbs (0.45 Nm) using a torque screwdriver.
5. Install the four screws securing the MCC board to the monitor using a Phillips screwdriver.
6. Install the cable clamp to the monitor using a Phillips screwdriver.
Install fan
1. Install screws securing fan and louver to console assembly using a Phillips screwdriver.
Qty.DescriptionItem
1Console assembly1
1Louver2
1Fan3
5Screw4
1CardioTouch cable5
2. Plug fan cable into MCC board.
Page 197 of 202
Cybex 772A, 772AT Arc Trainer Part Number
