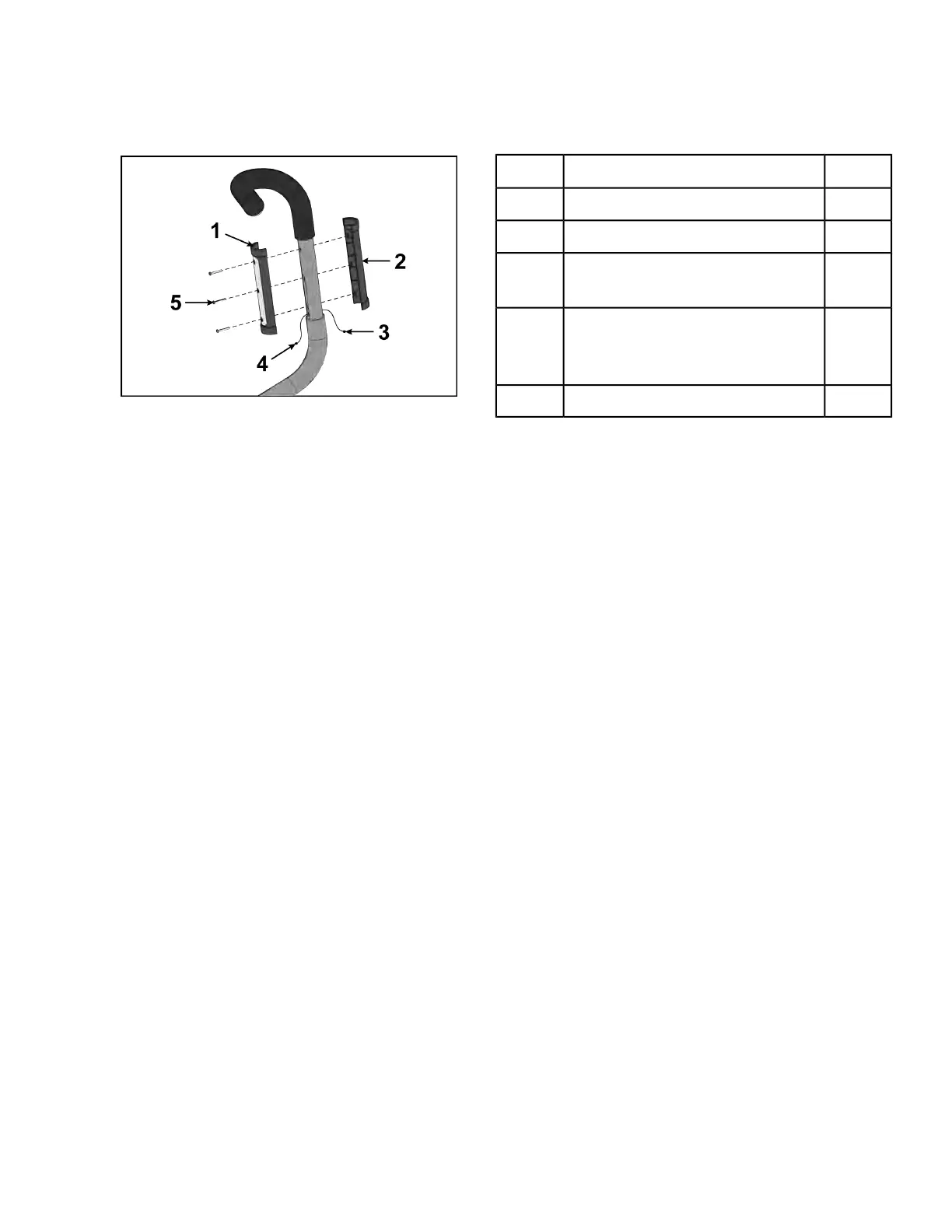

Install heart rate grips
1. Pull the black heart rate wire through the lowest back hole.
Qty.DescriptionItem
1Back grip1
1Front grip2
1
White (or red) heart rate wire
must be on inside (palm side)
3
1
Black heart rate wire (shield
wire) must be on outside (finger
side)
4
3Screws5
2. Pull the white (or red) heart rate wire through the lowest front hole.
3. Connect the white (or red) heart rate wire to the tab on the front grip.
4. Connect the black heart rate wire to the tab on the back grip.
Do not pinch heart wires or allow contacts to touch each other when installing grips.
5. Install the three screws securing back grip to front grip using a Phillips screwdriver.
Do not over tighten grips.
Complete Installation
1. Operate the unit at all levels to verify proper operation.
2. Verify proper operation of contact heart rate grips.
Pivot Covers
Tools Required:
• Phillips screwdriver
Page 95 of 202
Cybex 772A, 772AT Arc Trainer Part Number
