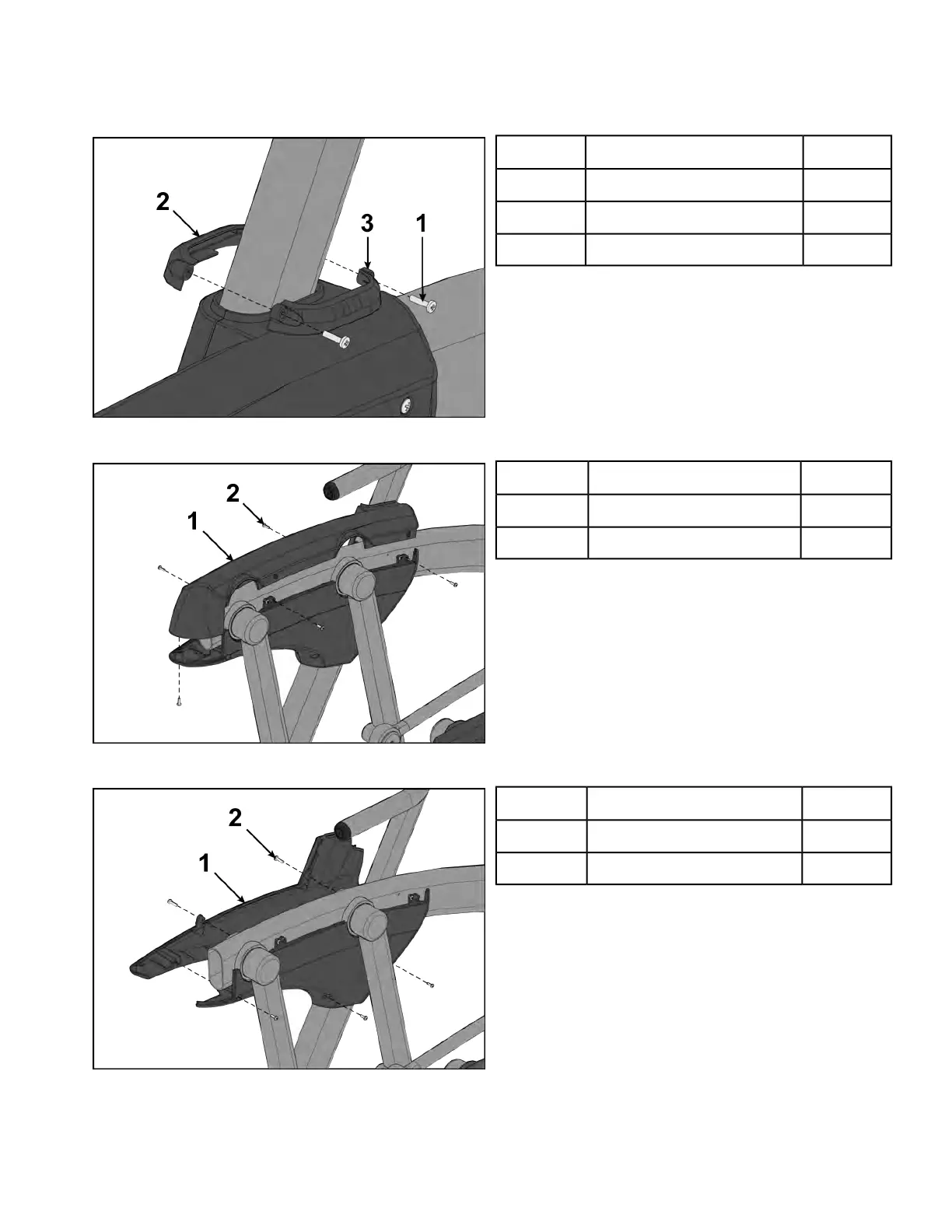

Remove pivot covers
1. Remove the left inner and outer collars and two screws using a Phillips screwdriver.
Qty.DescriptionItem
2Screw1
1Left outer collar2
1Left inner collar3
2. Remove the left top rear cover and five screws using a Phillips screwdriver.
QtyDescriptionItem
1Left top rear cover1
5Screws2
3. Remove the left outer rear cover and five screws using a Phillips screwdriver.
QtyDescriptionItem
1Left outer rear cover1
5Screws2
