Measuring with the Gauge
CALIBRATING THE GAUGE
¾ Calibration on a Test Sample
If possible : the Gauge should always be calibrated on the actual Material-under-Test,
or on a measured test-sample of the same material
¾ Calibration by Sound Velocity
If there is no test-sample available : the Gauge can be calibrated by setting the value of
Sound Velocity directly
¾ Calibration by Named Material
CygLink provides a list of commonly-used engineering materials – Calibration can be
achieved by selecting from this list
¾ Reading Conversion - not recommended
Log Readings with the Calibration preset to Mild Steel [5920 m/s or 0.2332 in/us], and
then later to use a Conversion FactorSee: Reading Conversion
, page 43
Calibration on a Test Sample
Ö Turn the Gauge on as normal, and place the Probe on the measured test-sample, and
ensure that a stable reading is being obtained
Ö Click on the
Calibration option in the Display box
Ö Move the slider until the displayed reading is exactly the same as the known thickness
of the test-sample: the Gauge is now Calibrated
Calibration by Named Material
Ö Click the

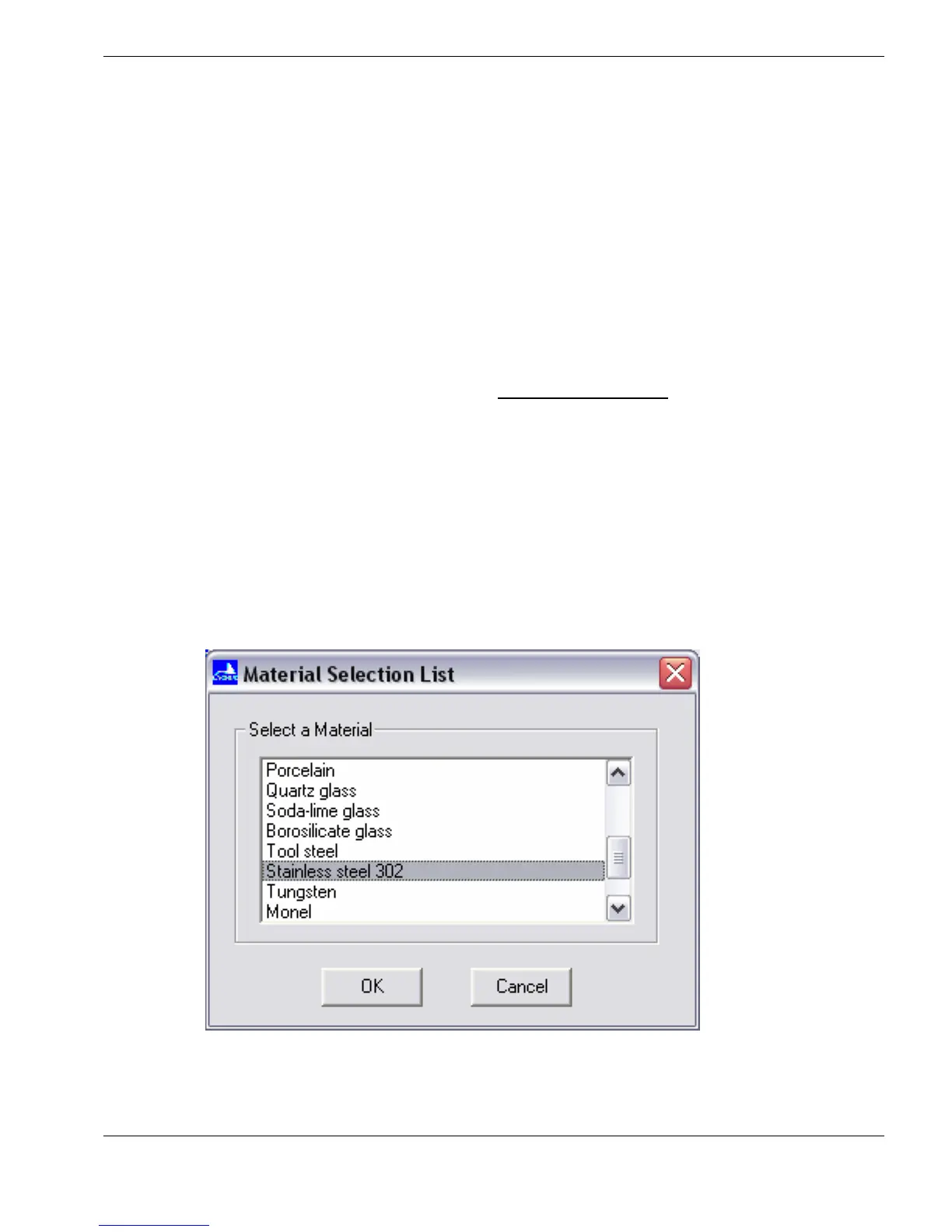

Material button in the Display box – the Material Selection List will open :
Ö Click in the list to select the suitable Material, then click OK :
the Gauge is now Calibrated for this Material
36
