Displaying the Menu

To display the main Menu press the Left Button once.

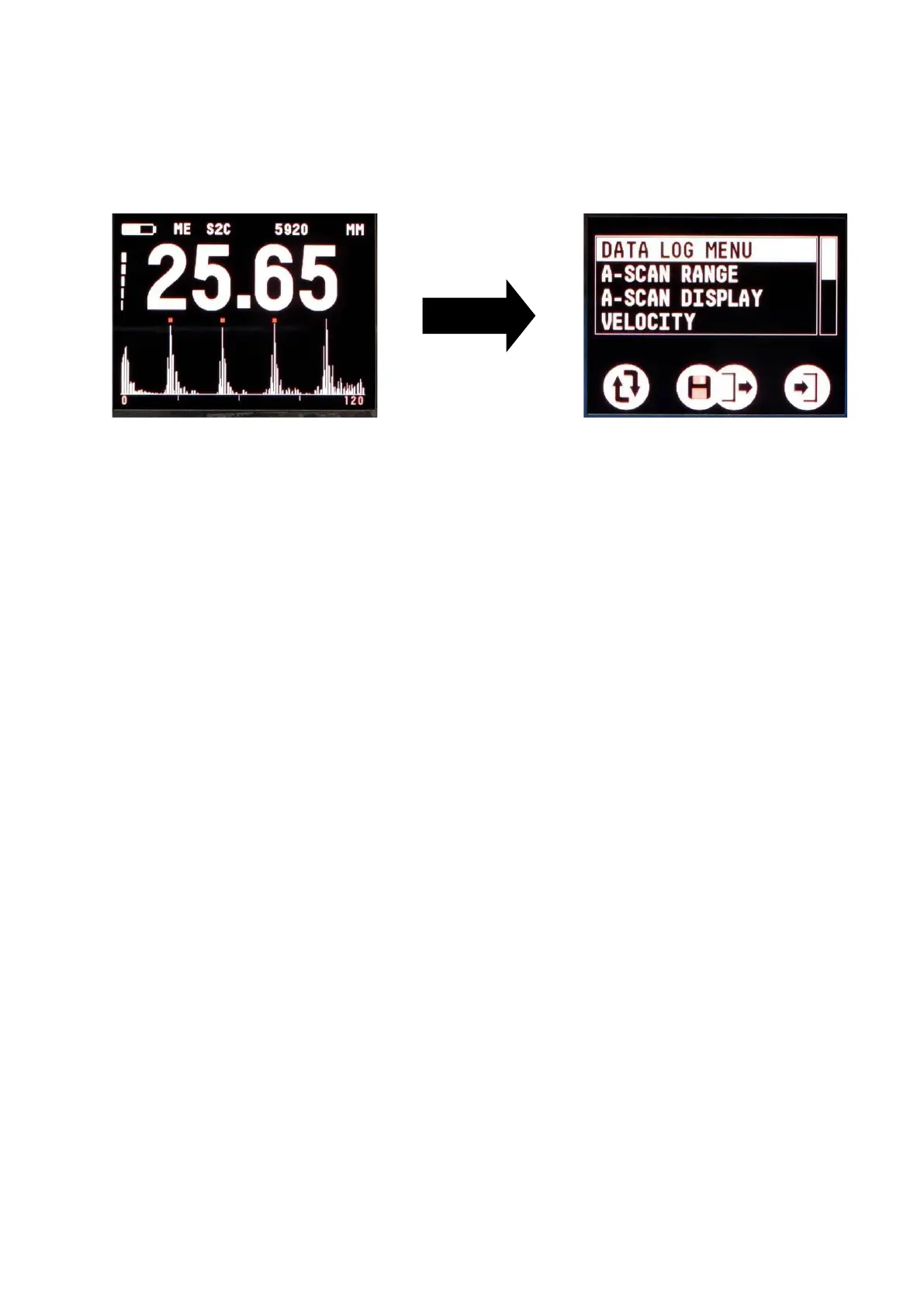

Measurement Screen

Main Menu Screen

Pressing the Left Button again will scroll down the Menu List one

step each press.

Pressing the Right Button will open the selected Item.
