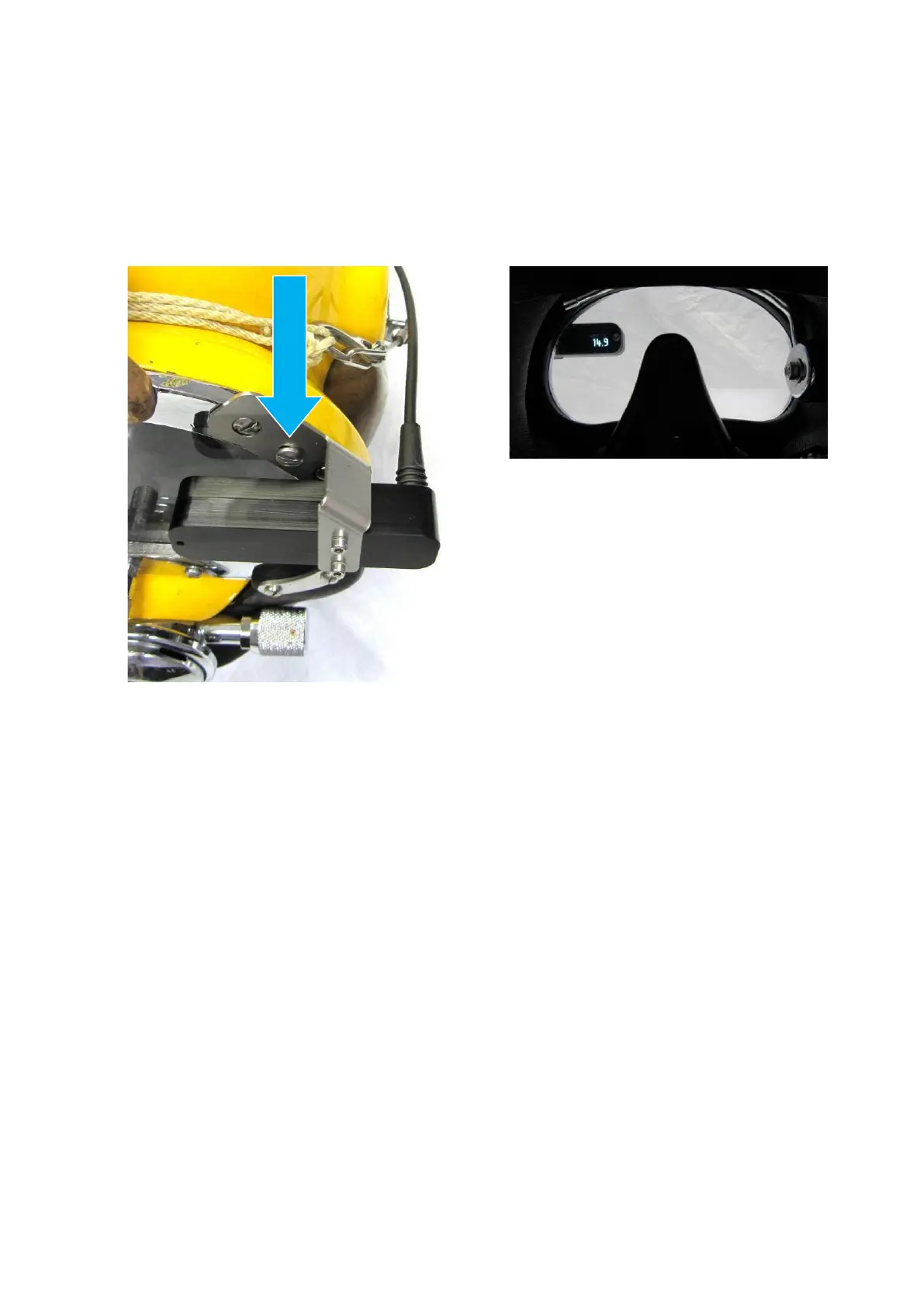

HelmetView Unit Fixed to Mounting Bracket
The bracket is then fixed to the Kirby Morgan
®
helmet using the
left hand side accessory screw. The cable will exit to the rear of
the helmet and the display will be visible in the top of the lens.
Accessory Screw
View from Inside the Helmet
