DGS-3100 Series Gigabit Stackable Managed Switch User Manual
If L2 ACL Unt
agged is selected, the page updates as follows (without the 802.1Q VLAN field):

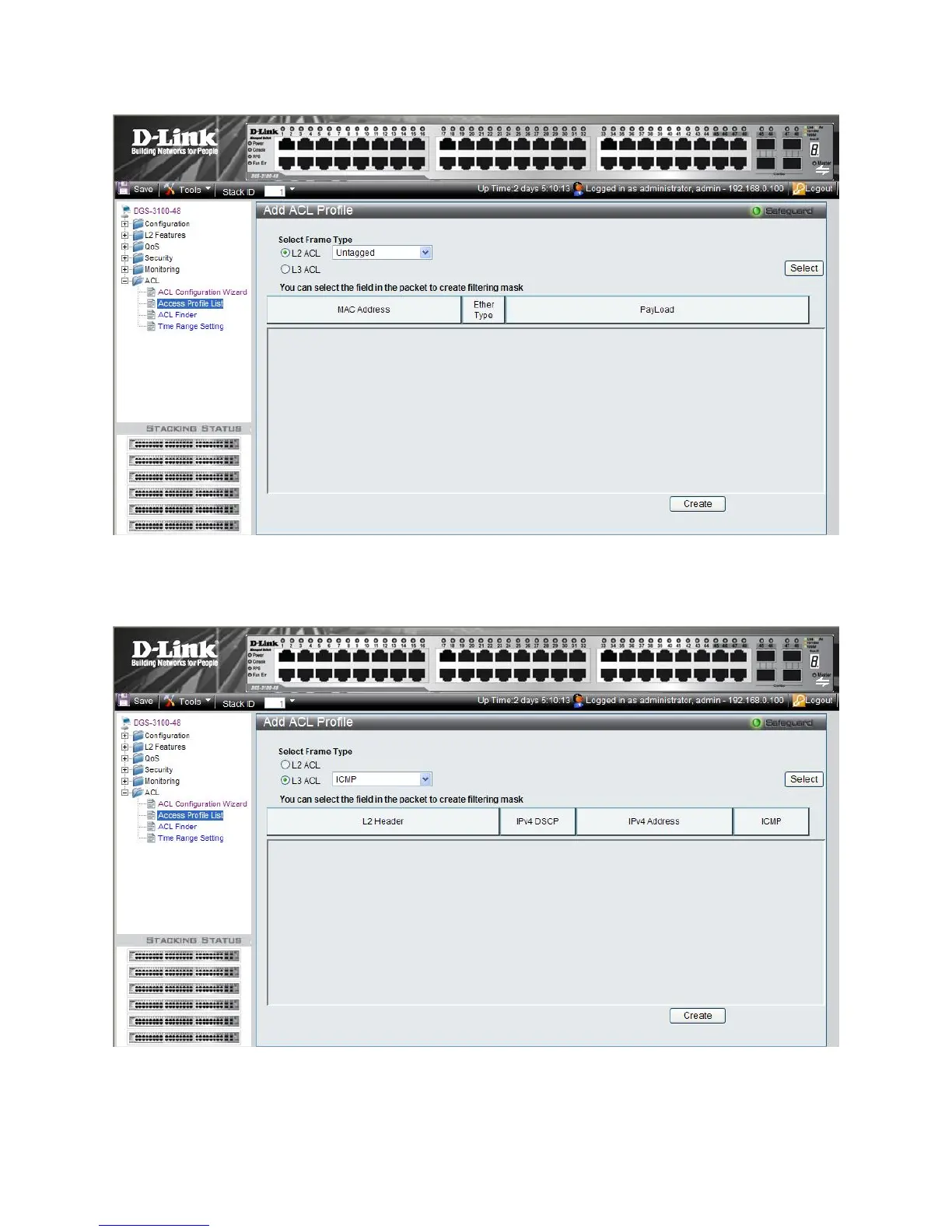

Figure 8-8 ACL Profile L2 ACL Untagged Page
Defining Level 3 ACL
If L3 ACL ICMP is selected, the page updates as follows:
Figure 8-9 Add ACL Profile L3 Page
To define L3 IPv4 DSCP ACL profile:
