11D-Link DCS-5029L User Manual
Section 1 - Product Overview
Hardware Overview

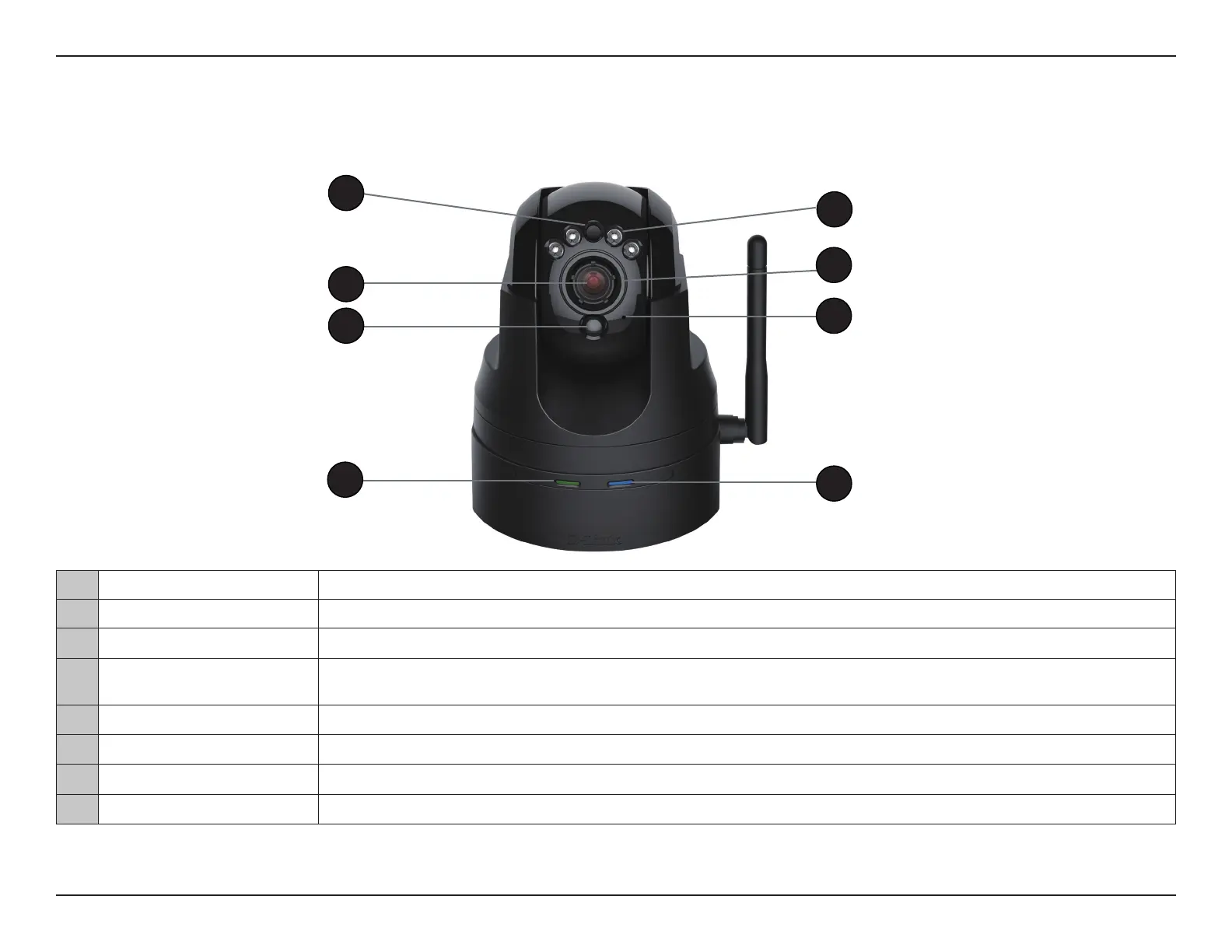

Front View
*Note: If you see a white haze when viewing in night vision mode, the IR lights on the camera may be reecting o a nearby surface.
Try repositioning the camera in order to avoid glare from the IR LEDs.
1 Light Sensor Detects light levels and adjusts IR-LEDs accordingly.
2 Camera Lens Records video of the surrounding area.
3 Passive Infrared Sensor Passive Infrared (PIR) sensor for motion detection.
4 Power/Link LED
The LED will be solid red while the camera boots, performs a self test, and searches for a network connection. The LED will
switch to solid green when a proper connection has been achieved. The LED will blink green during data transfer.
5 IR LEDs* Used to illuminate the camera’s eld of view at night.
6 Focus Adjustment Ring Turn the ring surrounding the camera lens to manually adjust the camera’s focal length.
7 Microphone Records audio from the surrounding area.
8 WPS Status LED Indicates the WPS (Wi-Fi Protected Setup) connection status of the camera.
1
2
3
4
5
7
8
6
