D-Link DCS-5029L User Manual

30D-Link DCS-5029L User Manual 30
Section 4 - Conguration

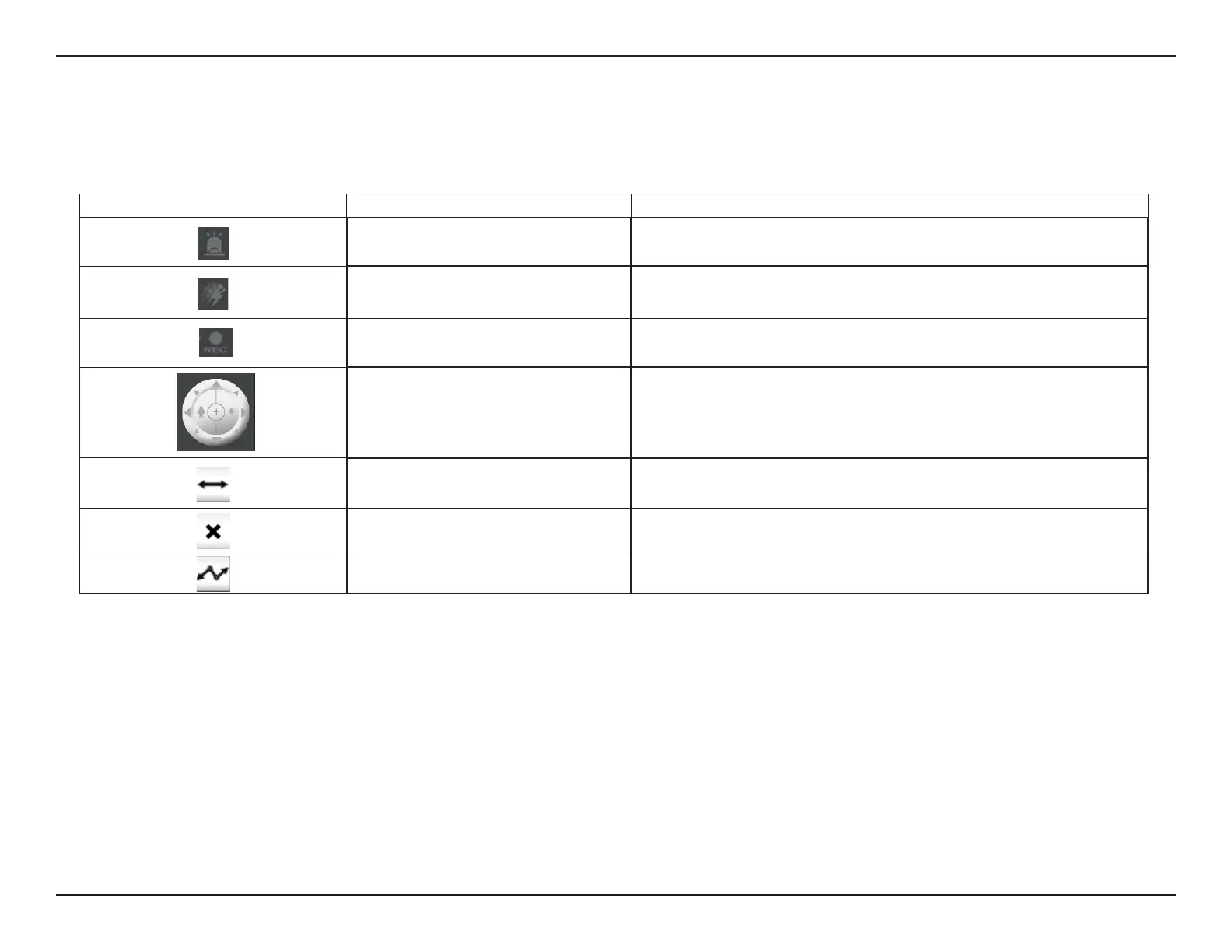

Icon/Button Button Name Function
Digital Input Indicator This indicator will change color when a digital input signal is detected.
Motion Trigger Indicator
This indicator will change color when a motion trigger event occurs if
the motion detection feature is enabled.
Recording Indicator When a recording is in progress, this indicator will change color.
Zoom In/Zoom Out
The icons on each side of the (+) in the middle of the PTZ Control wheel
are used to Zoom In (provide a close-up view of the image) and Zoom
Out (show a wider view of the image).
Auto Pan
Starts the automatic panning function. The ROI will pan from back and
forth within the FOV (eld of view).
Stop
Stops the automatic panning function.
Preset Path Starts the camera's motion along the predened path.
The icons and buttons in the table below are located in the rst column of the Live Video screen. The table on the next page contains the buttons
that appear across the bottom of the Live Video screen.
Control Table
