Dual-Speed Stackable Hub Web-based Management User’s Guide
Web-based Network Management82
Utilization

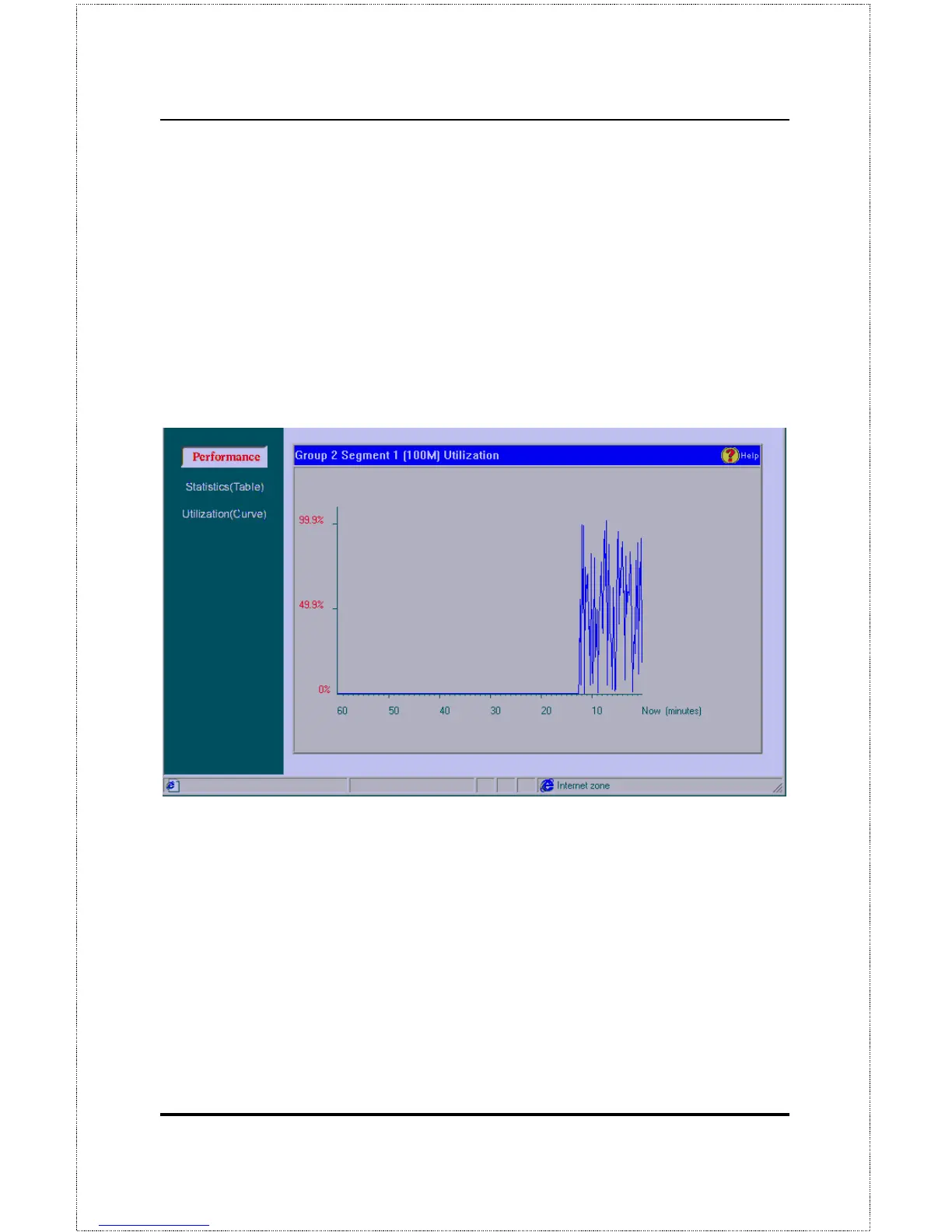

A network segment can be monitored using the Utilization display. Each hub
is divided into two segments; 100Mbps (segment 1) and the 10Mbps (seg-
ment 2). When you choose a segment to observe, a graph appears showing
the usage of that segment as a percentage of the total bandwidth (see example
below).
Utilization is calculated and plotted every 10 seconds. A one hour utilization
history can be shown by the graph.
Fault
The operations described in this section allow you to manage the Hub while it
is operating.
