Installation
13
Wall Installation
The product can be installed on a wall. When installing, you need to
attach two tapping screws and two screw anchors to the bottom of
the device. Wall mount supplies are included.

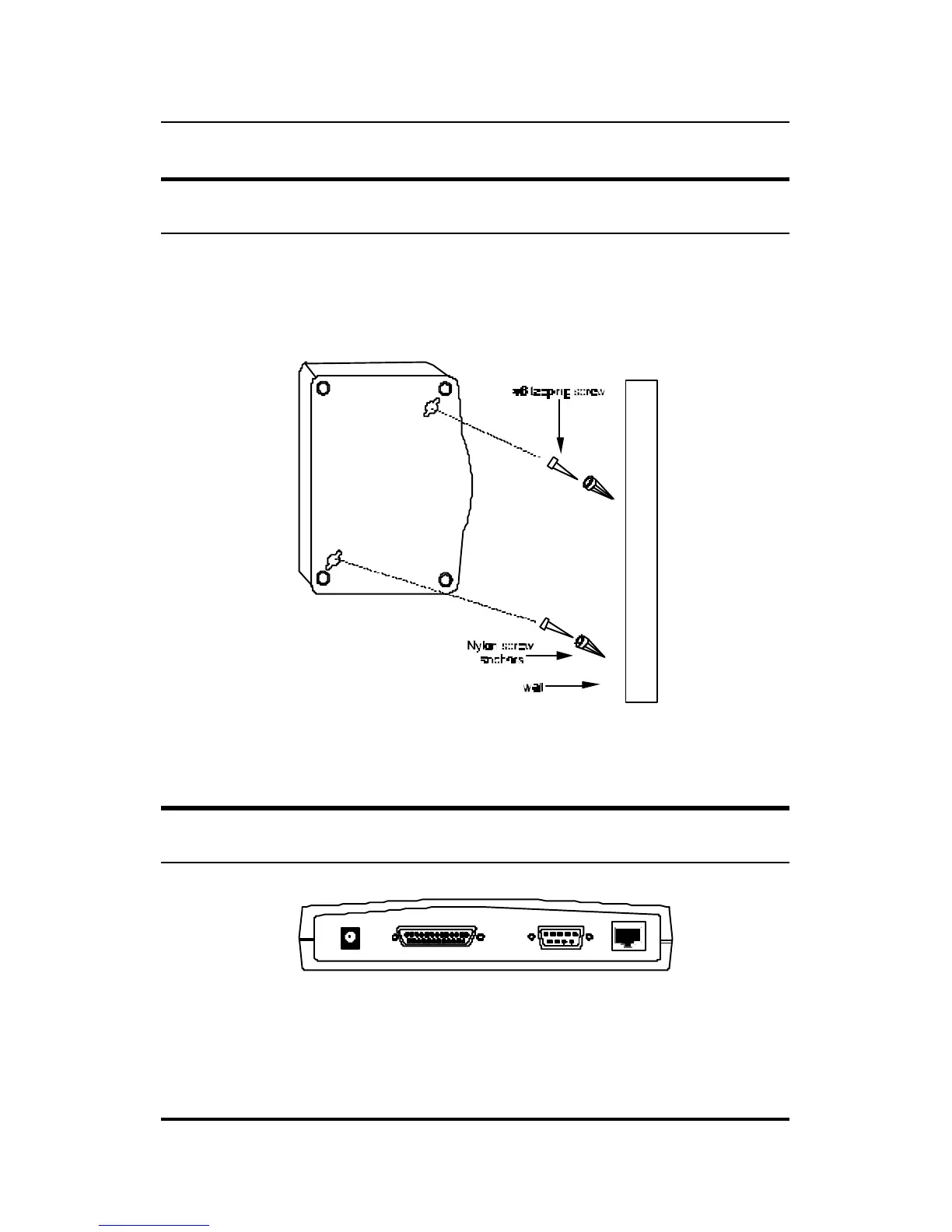

Installing the Internet/Print Server on a Wall
Port Description
DP-802 Rear Panel
