Installation 15

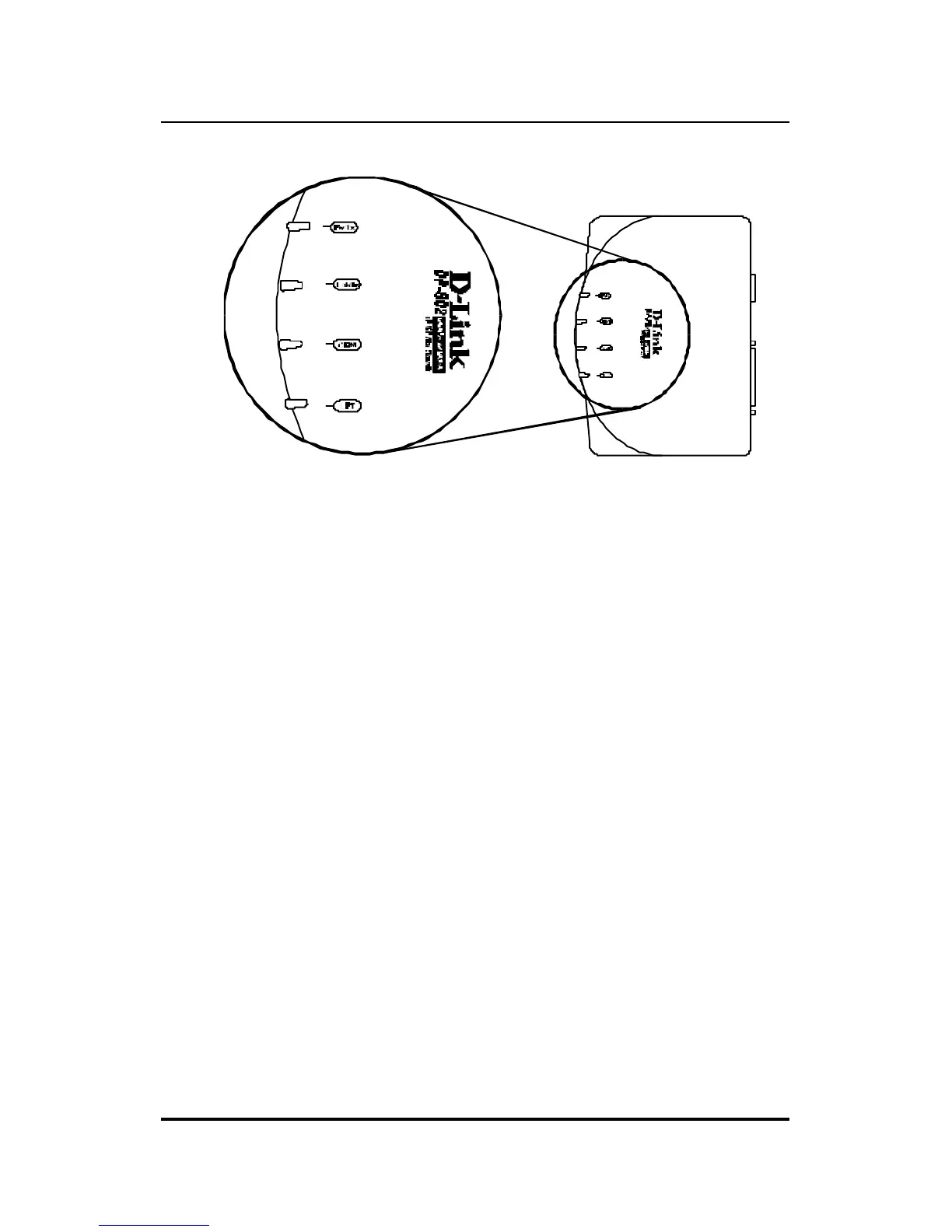

DP-802 Front Panel / LEDs
Pw/Tx
The Pw/Tx (power/transmit) LED lights when power is supplied to
the device and flashes when the LAN port transmits data.
Link/Rx
The Link/Rx (link/receive) indicator will light up when a good con-
nection is made at the LAN port with an operating and compatible
Ethernet or Fast Ethernet device. This indicator flashes when the
LAN port receives data from the network.
COM
The COM port LED provides an indication of the operating status of
the WAN port. When the WAN port is transmitting data, the COM
port will light. If no data is being transmitted, the COM LED will be
off.
